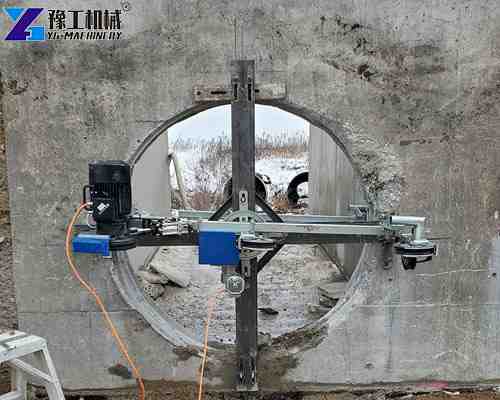

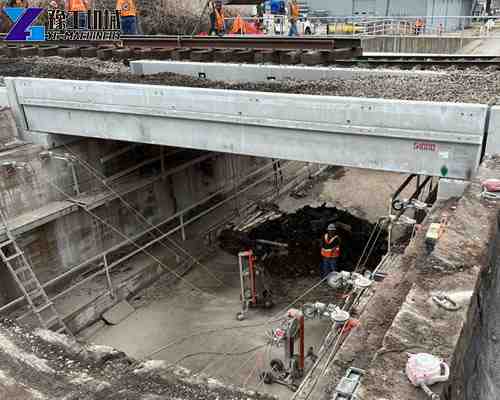

In the cutting of large volume reinforced concrete, bridges, tunnels and other projects, the concrete wire saw is gradually replacing traditional demolition tools and becoming the mainstream of the industry. Compared with conventional methods, this equipment can easily complete high-precision cutting of ultra-thick structures without the need to reserve working space, especially suitable for complex environments or difficult demolition occasions. 600TM concrete wire saw launched by YG has outstanding performance in wire cutting concrete applications due to its strong power and unique design.

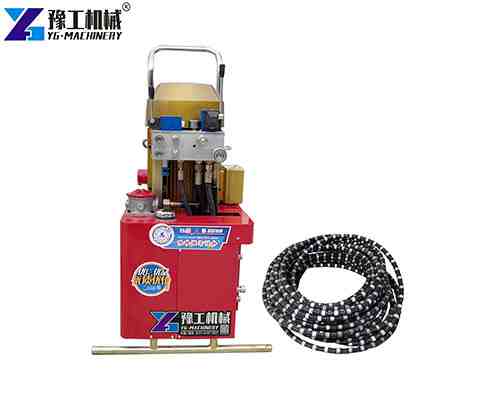

YG 600TM Wire Cutting Concrete Parameter

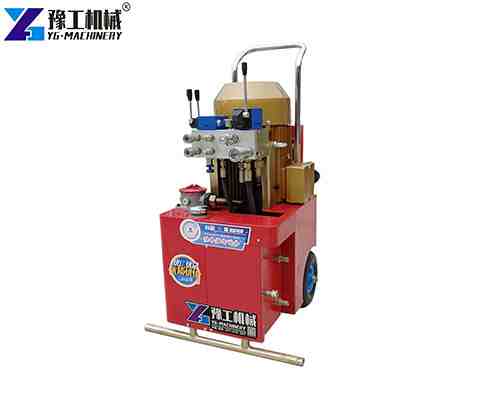

| Hydraulic pump station | 600TM |
| Max. Power | 25KW |
| Motor Cooling Method | Air Cooling |
| Rated Voltage | 380V 50HZ 3phase |
| Pressure Stages | 3 |
| Max. Operating Pressure | 200bar/20Mpa |
| Oil Flow Rate | 30-80L/min |
| Dimensions | 650mm*600mm*1150mm |
| Weight | 180kg |
| Rope sawing machine | 90AM |
| Number of Motors | 2pcs |
| Max. Wire Storage | 12m |
| Wire Winding Length | 15m |
| Length | 1050mm |
| Width | 700mm |
| Height | 2100mm |
| Driving Wheel Diameter | 280mm |
| Storage Wheel Diameter | 200mm |
| Weight | 110kg |
YG 600TM Concrete Wire Saw Technical Highlights
The YG 600TM Wire Cutting Concrete is powered by a 25KW hydraulically driven mainframe and equipped with the industry’s most advanced air-cooling system, which effectively ensures the cooling stability of the machine during long-time operation. This model has a 600mm large diameter guide pulley and wire rope tension control up to 600kg, which makes it more efficient in cutting ultra-thick steel reinforcement and high-strength concrete structures, and is especially suitable for wire saw concrete cutting projects that require large depth and high finish.
Compared with the traditional 20KW, 400mm guide wheel products on the market, the 600TM is significantly better than its counterparts in terms of cutting speed and section quality. Especially in the case of limited water supply or inability to use water-cooled occasions, its air-cooled design avoids the temperature rise and wear of the wire rope due to the lack of water. After the actual site feedback, the equipment in the continuous operation, high reinforced concrete components, stable performance, low maintenance rate, long service life, for customers to save a lot of cost, but also make its cost-effective and diamond wire saw price more reasonable.
Concrete Wire Saw Working Principle and Precautions

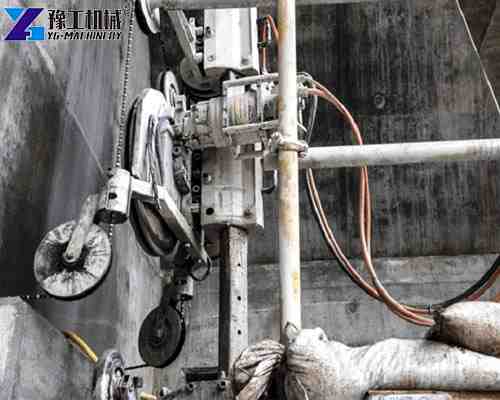

This Wire Saw Concrete Cutting realizes efficient separation of concrete, steel reinforcement or rock by driving the wire rope to rotate around the workpiece through the hydraulic system and friction cutting with the help of diamond particles. Due to the air-cooling system, the machine is compact and suitable for indoor, underground or water-scarce working conditions. During operation, it is necessary to ensure that the rope tension is adjusted to the standard range and that no one stays in the cutting area to prevent danger from accidental breakage of the wire.

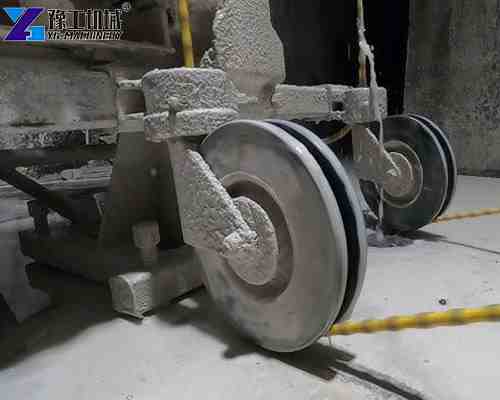

In addition, the wear condition of the guide pulley should be checked before operation, and the aging wire rope should be replaced in time to avoid the decline of cutting precision or abnormal equipment shutdown. Reasonable use and regular maintenance is an important guarantee to ensure the long-term stable operation of 600TM Wire Saw Concrete Cutting and reduce the construction risk.
YG: Your Trustworthy Construction Equipment Supplier
In actual projects, choosing the right equipment means saving construction time and reducing operation cost. YG 600TM concrete wire saw has won wide recognition from customers all over the world due to its excellent performance, reasonable diamond wire saw price and considerate after-sales service. All of our equipment strictly complies with the latest industry standards in 2023 to meet the wire cutting concrete needs of different projects.
Meanwhile, YG also provides you with abundant building construction equipments: hydraulic wall saws, hydraulic breaker hammers, mining rope saws and so on. Welcome to contact us for the latest product quotation. [WhatsApp/WeChat/Phone/Skype] +86 13837115193.
