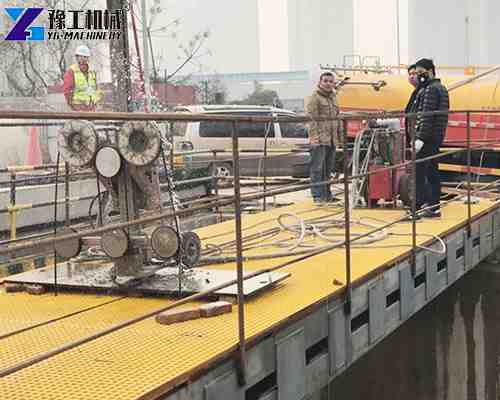

In the field of large-scale concrete structure cutting, diamond wire saw machine is gradually becoming the preferred equipment for engineers. The 800TM diamond rope saw by YG is versatile and powerful. It is suitable for cutting bridges, tunnels, subways, and other complex structures. The machine also handles metal and stone cutting tasks with ease. It offers high efficiency, precise performance, and excellent durability. The core advantages of the machine are high efficiency, precision and durability. Together with diamond wire saw rope, the cutting effect of the equipment is more stable and the cost is lower.

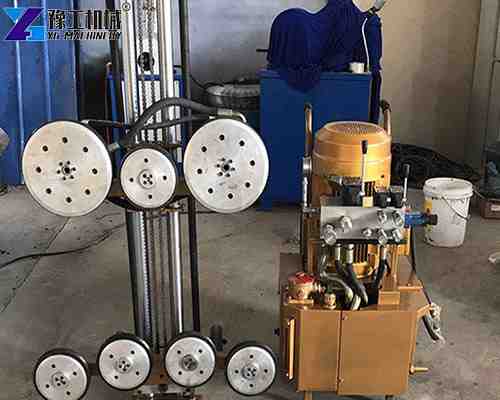

YG 800TM Diamond Wire Saw Machine Parameters

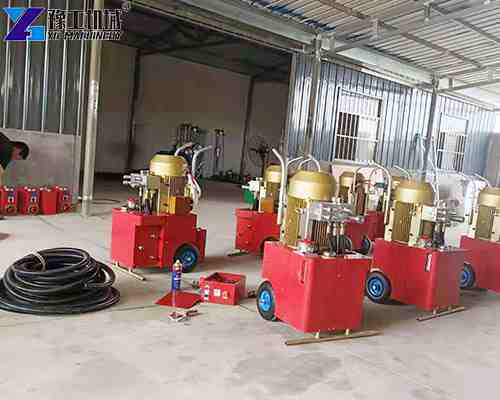

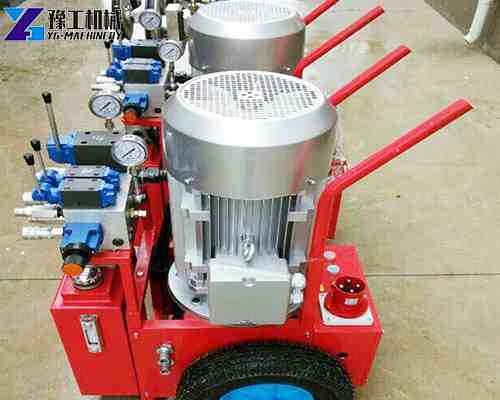

| Hydraulic Pump Station Model | 800TM |
| Max. Power | 32KW |
| Motor Cooling Method | Water cooling |
| Rated Voltage | 380V 50HZ 3phase |
| Pressure Stages | 3 |
| Max. Operating Pressure | 210bar/20Mpa |
| Oil Flow Rate | 40-100L/min |
| Dimensions (L*W*H) | 680*550*700mm |
| Weight | 120kg |
| Remote Controller Parameters | Wireless control |
| Control Voltage | 24V |
| Remote Controller Dimensions (L*W*H) | 300*200*150mm |
| Remote Controller Weight | 2kg |
| Rope sawing machine | 90AM |
| Number of Motors | 2pcs |
| Max. Wire Storage | 12m |
| Wire Winding Length | 15m |
| Length | 1050mm |
| Width | 700mm |
| Height | 2100mm |
| Driving Wheel Diameter | 280mm |
| Storage Wheel Diameter | 200mm |
| Weight | 110kg |

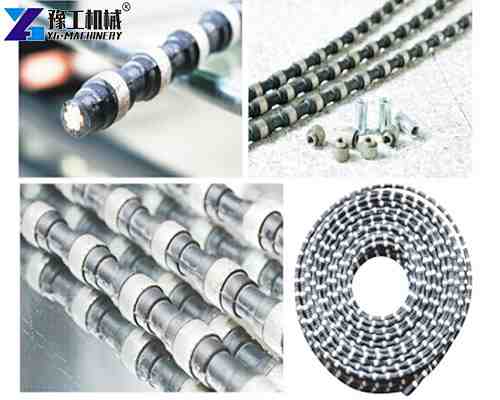

Feature of Diamond Wire Saw Rope
YG 800TM diamond wire saw rope is specially designed for complex projects:
- With strong power and water-cooled cooling system, even if it works continuously for a long time, the host machine still maintains a good thermal balance, avoiding overheating problems of the motor. avoid motor overheating problem.
- It is equipped with a wireless remote control as standard, which is lightweight, only 120kg, flexible and convenient to operate, especially suitable for the occasions where the site is limited or need to be controlled from a distance.
- Compared with the traditional rope saw concrete equipment, YG 800TM shows higher cutting accuracy and durability, which significantly reduces the probability of wear and tear and rework during the construction process.

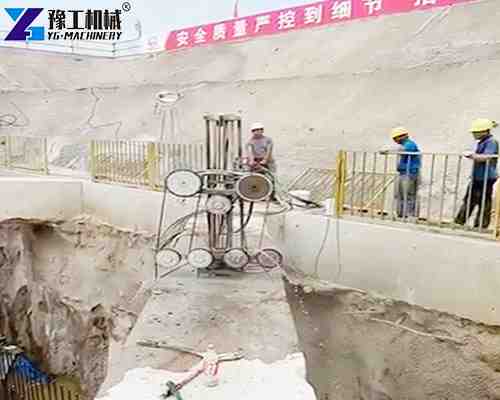

In actual construction, the YG 800TM can be used with different types of diamond wire saws for concrete. Sintered or brazed diamond ropes can be selected based on the construction environment. This effectively improves cutting efficiency and the surface finish of the final product. It is recommended to check the rope for wear before operation. This helps to avoid the risk of rope breakage or jamming and ensures construction safety.
Working Principle and Operation Precautions
The core of diamond wire saw machine lies in the high-speed rotation of the motor-driven diamond rope, relying on the evenly distributed diamond particles in the rope to realize cutting. Compared with conventional cutting tools, the rope saw is more adaptable, capable of handling shaped or ultra-thick structures, and effectively reduces vibration and noise. During operation, be sure to keep the cooling system unobstructed, the rope saw shall not be cut dry for a long time; the rope should be cleaned after each use, and the pulley and tensioning system should be checked to prevent project delays due to abnormalities in the equipment.
Choose YG–Trustworthy Concrete Cutting Equipment Manufacturer
As a professional diamond wire saw machine manufacturer in China, YG Machinery has always insisted on technological innovation and quality assurance, and our products have been widely used in many fields, such as construction, bridges and mines. In addition to 800TM, we also provide a variety of supporting products, such as: concrete wire saw, electric wire saw machine, wall saw cutting machine, core drilling machine, etc. Welcome to contact us for the latest quotation or customized solutions.【WhatsApp/WeChat/Phone/Skype】+86 13837115193.
