How to Drill a Well？

In water resources development and rural water supply projects, how to drill a well is not only a technical issue, but also a systematic project of equipment selection and construction program. According to the geological conditions, construction depth and water demand, a reasonable combination of water drilling rig, auxiliary equipment and operation procedures can ensure the drilling efficiency and water quality.

Request A Quote

YG Drilling Equipment Parameters

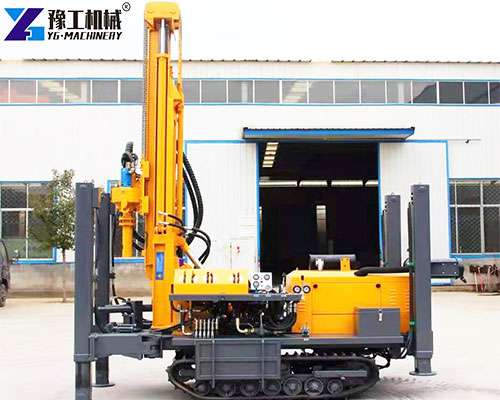

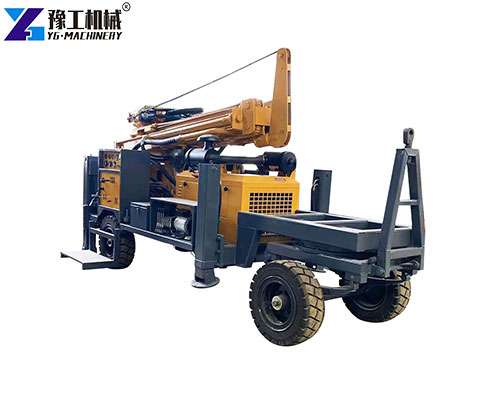

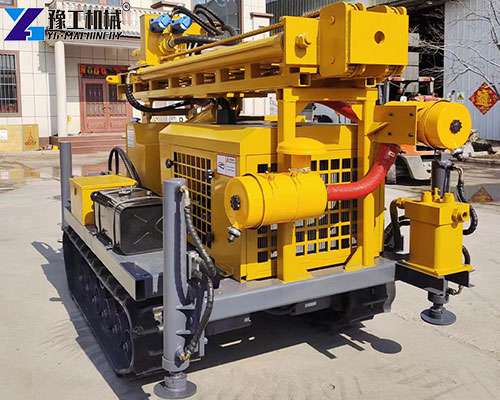

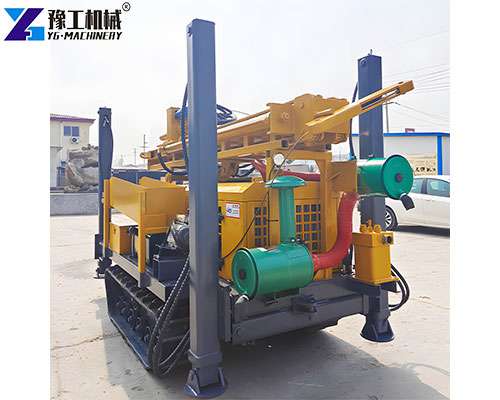

The large water well drilling rig

Model	YG-180	YG–200	YG–300	YG–300A	YG–400	YG–600
Drilling hole diameter	140-254mm	140-305mm	140-325mm	140-325mm	140-350mm	140-350mm
Drilling depth	180m	200m	300m	300m	400m	600m
One-time advance length	3.4m	3.4m	6.6m	3.4m	6.6m	6.6m
Walking speed	2.5km/h	2.5km/h	2.5km/h	2.5km/h	2.5km/h	2.5km/h
Climbing angles (Max.)	30	30	30	30	30	30
Equipped capacitor	55kw	65-70kw	84kw	75.8kw	92kw	115kw
Using air pressure	1.7-2.5mpa	1.7-3.0mpa	1.7-3.3mpa	1.7-3.0mpa	1.7-3.5mpa	1.7-3.5mpa
Air consumption	17-31m³/min	17-30m³/min	17-35m³/min	17-35m³/min	17-35m³/min	17-35m³/min
Drill pipe length	1.5m, 2.0m, 3.0m	1.5m, 2.0m, 3.0m	1.5m, 2.0m, 3.0m,6.0m	1.5m, 2.0m, 3.0m	1.5m, 2.0m, 3.0m,6.0m	1.5m, 2.0m, 3.0m,6.0m
Drill pipe diameter	76mm, 89mm	76mm, 89mm	89mm, 102mm	76mm, 89mm, 102mm	89mm,102mm,108mm	102mm,108mm,114mm
Rig lifting force	15t	12t	20t	16t	22t	28t
Swing speed	45-65rpm	45-70rpm	45–115rpm	40–70rpm	45-115rpm	45–115rpm
Swing torque	3200-4600(N.m)	3500-4800(N.m)	6200-8500(N.m)	5700-7500(N.m)	6500-9000(N.m)	8500-11000(N.m)
Dimension	3800*1500*2200mm	4000*1750*2450mm	5900*2000*2850mm	4100*1950*2600mm	5900*2100*2850mm	6000*2200*2850mm
Weight	4500kg	5800kg	9000kg	7000kg	10000kg	12000kg

Request A Quote

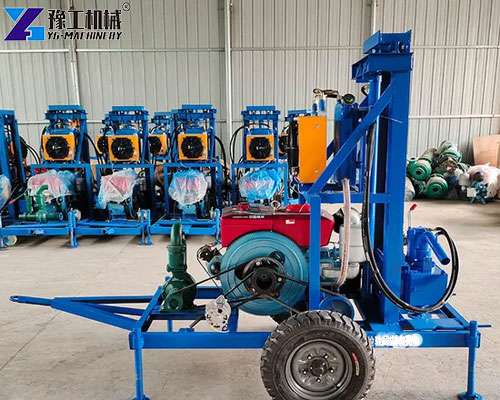

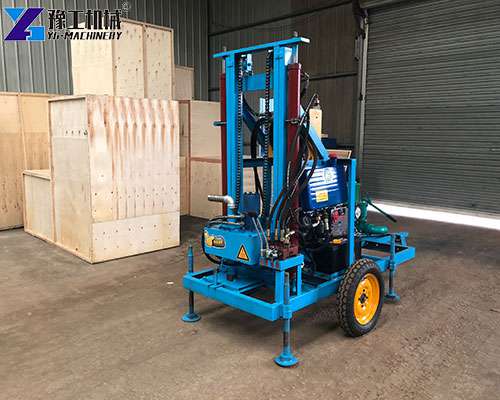

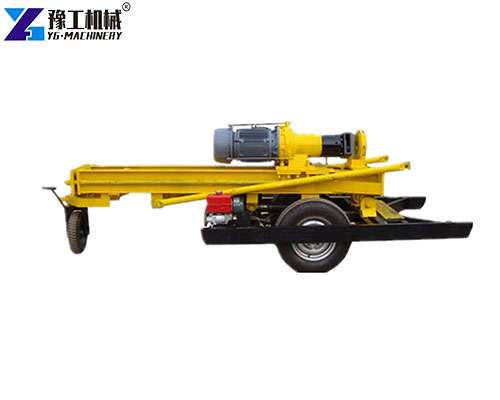

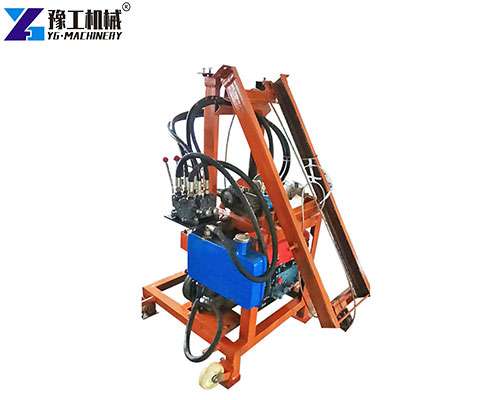

The small water well drilling rig

Parameter	HY-180	ZX-220	HY-240E	ZX-280	HY-350
Opening Hole Diameter	80-200mm	0-280mm	0-240mm	0-280mm	350mm
Drilling Depth	80m-100m	120m	100m	120m	100m
Drill Pipe Diameter	φ42mm	φ51mm	φ51mm	φ51mm	φ51mm
Drill Pipe Length	1.5m	1.5m	1.5m	1.5m	1.5m
Motor Power	1.5kw-2kw	4kw	4kw	4kw	3kw
Pump Power	2.2kw	2.2kw	2.2kw	2.2kw	2.2kw
Voltage	220v	220v	220v	220v	380v
Lifting Force	500kg	800kg	500kg	800kg	1000kg
Size (L×W×H)	700×700×2500mm	800×700×2500mm	700×700×2500mm	800×700×2500mm	800×800×2000mm
Weight	120kg	200kg	200kg	200kg	250kg

Request A Quote

How to Select the Model According to the Terrain, Geology and Well Depth?

1. In our experience, hilly and sandy areas are suitable for light crawler water drilling rig, such as YG-DT100, which is easy to transfer;
2. Hard rock areas are recommended to match with impact rotary drilling rigs, which have stronger penetrating power;
3. If the depth of the well exceeds 150 meters, high power water drilling rigs should be given priority and equipped with high head mud pumps or high power air compressors to enhance the slagging efficiency.
4. For the mixed stratum with soft soil and pebbles, gear alloy drill bit can be used to balance the speed and hole formation quality.

Request A Quote

Suggestions for the Selection of Supporting Equipment

In the drilling practice, the configuration of mud pump, air compressor and power system directly affects the drilling stability. We generally recommend:

1. Mud pump: recommend the model with flow rate of 80m³/h and head of more than 30 meters to ensure the support and cooling of the hole wall.
2. Air compressor: at least 8m³/min, 0.8MPa or more parameters are needed for gas lifting wells; for deep wells, double-cylinder or screw-type configuration is needed.
3. Power supply system: 30-50kW diesel generator set is recommended for field operation, and equipped with a voltage regulator to ensure that the control system is not interfered with.

Be sure to follow the operating specifications, wear protective equipment, in the replacement of the drill bit, pipeline power-off operation, to prevent high-pressure back to the oil or sudden jamming drilling injury. contact us to know more details now!

Request A Quote

Scientific Well Drilling Starts from YG

The key to understanding how to drill a well is not only to know how to operate a drilling rig, but also to know how to match the equipment and optimize the construction plan. YG Machinery, with many years of experience in the industry, provides one-stop solutions from the selection of drilling rigs, the investigation of water sources to the matching equipment to help customers achieve the goal of efficient and safe water extraction.

We also provide a variety of related equipment recommendations: water well drilling rigs for sale, DTH impact water drilling rig, small tracked water bore rig, and other products. Act now to start the road to efficient well drilling!
