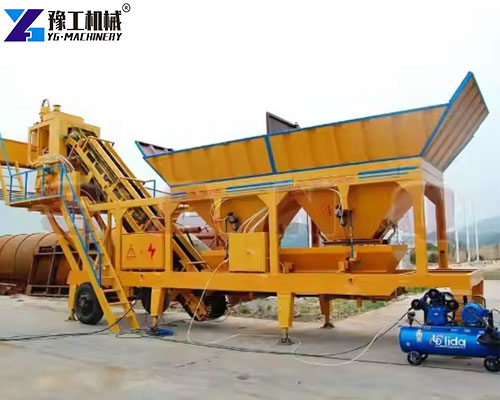

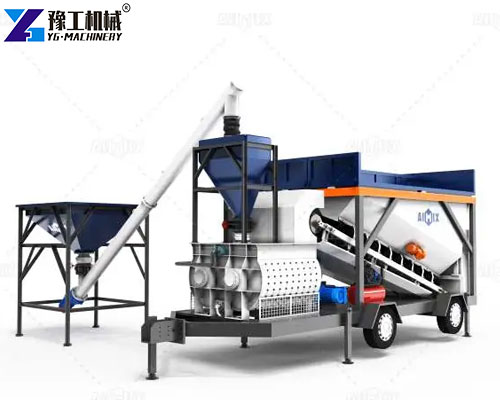

A mini mobile concrete batching plant is a self-contained system designed for the precise mixing of concrete ingredients (cement, aggregates, water, and additives) right at the job site. Unlike stationary plants, its key feature is mobility. Mounted on a chassis with wheels, it can be towed easily from one location to another, eliminating the delays and costs associated with transporting ready-mix concrete over long distances. It typically includes aggregate storage bins, cement silo or input, water tank/system, accurate weighing systems, and a concrete mixer, all integrated into one streamlined unit.
Mini Mobile Batching Plant Parameters
| Model | YG20 | YG30 | YG60 | YG100 |
| Production capacity (m3/h) | 20 | 30 | 60 | 100 |
| Concrete mixer | YG500 | YG750 | YG1500 | YG2000 |
| Aggregate feeding mode | Belt conveyor | Belt conveyor | Belt conveyor | Belt conveyor |
| Aggregate size(mm) | 80/60 | 80/60 | 80/60 | 80/60 |
| Discharging height(m) | 1.5 | 1.5 | 1.5 | 1.5 |
| Aggregate weighing accuracy (%) | ±2 | ±2 | ±2 | ±2 |
| Cement weighing accuracy (%) | ±1 | ±1 | ±1 | ±1 |
| Water weighing accuracy (%) | ±1 | ±1 | ±1 | ±1 |
| Additive weighing accuracy (%) | ±1 | ±1 | ±1 | ±1 |
| Control system | Panel | Computer | Computer | Computer |
| Total power (kw) | 42 | 46 | 67 | 77.5 |
| Total weight) | 12 | 13 | 14.5 | 26 |
Advantages of Batching Plant Portable
- Ultimate Portability & Convenience: The standout feature of this batching plant portable solution is its unmatched mobility. Easily tow the unit between construction sites or reposition it as needed within large-scale projects. With a streamlined setup process and hassle-free relocation, it saves valuable time on the job.
- Cost-Effectiveness: By producing concrete on-site, you reduce transportation expenses, avoid delays, cut down on material waste, and lower labor demands compared to traditional manual mixing methods.
- On-Demand Concrete Production: The mini mobile batching plant delivers fresh, high-quality concrete exactly when and where it’s needed, enhancing efficiency and reducing downtime.
- Superior Quality Control: Integrated weighing systems and automated mixing ensure every batch meets your precise standards for strength and consistency.
- Space Efficiency: Designed with compact construction in mind, it fits easily in tight or restricted work areas.
- Versatility: Perfect for diverse applications and mix designs, from foundations to precast elements.
Applications of Mini Mobile Batching Plant
- Small to Medium Construction Projects: The mini mobile batching plant is ideal for producing consistent, high-quality concrete on-site for foundations, floor slabs, and structural work, especially where space is tight or access is challenging.
- Remote Area Construction: A batching plant portable enough for rural or off-grid sites, it ensures timely concrete supply for infrastructure, housing, or mining operations, without relying on distant ready-mix plants.
- Road Repairs & Maintenance: Rapidly deploy the unit to patch highways, bridge decks, or walkways, ensuring minimal traffic disruption and durable results.
- Precast Element Production: Efficiently cast items like pavers, kerbstones, and concrete blocks right on the job site, reducing logistics and cost.
- Foundation and Piling Work: Deliver precise amounts of concrete directly where needed, ensuring structural stability and project speed.
- Farm and Agricultural Projects: Great for building silos, barns, fences, and driveways in rural areas with limited resources.
YG Machinery- A Professional Construction Machinery Factory
YG has successfully exported over 300 concrete mixers to countries such as Mexico, Nigeria, the United States, Malaysia, Australia, Thailand, the Philippines, and Indonesia, supporting a wide range of construction projects. With extensive experience in concrete mixer sales, we have a deep understanding of industry needs and project requirements.In addition to mini mobile batching plant, we also offer a variety of other construction and industrial equipment, including small concrete pumps, concrete mixers with pumps, mortar spraying machines, shotcrete machines, fog cannons, GRC machines, sandblasting machines, hydroseeding machines, micro excavators, mini skid steer loaders, small backhoe loaders, electric forklifts, aerial lifts, and mini spider cranes. Contact us For more details.【 WhatsApp/WeChat/Phone/Skype】: +86 13837115193.
