In January 2025, a customer in Chiang Mai, Thailand, who is engaged in road construction in mountainous areas, approached YG through online consultation, looking for a concrete mixing equipment suitable for narrow roads in mountainous areas and areas with unstable concrete supply. After a detailed understanding of the customer’s construction environment, YG recommended the self loading concrete mixer for sale. After the product was successfully put into use, the progress of the project was greatly improved, and the customer gave feedback many times that it “solved the double problems of labor and transportation”.
Compared with the traditional mixing station and manual mixing method, it integrates loading, mixing and transportation, which is suitable for remote areas, highway repair, slope reinforcement and other construction scenarios. As it does not need to rely on fixed mixing stations, it is especially suitable for projects with decentralized construction resources, and it is one of the popular intelligent equipments in the construction industry in recent years.

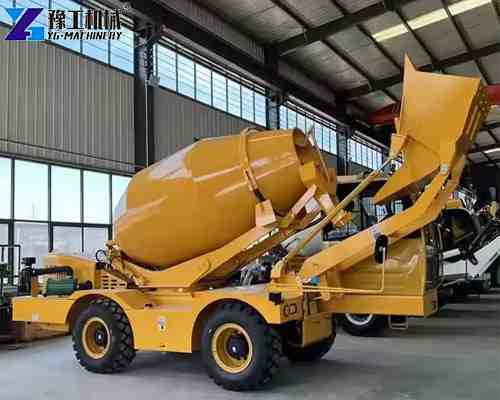

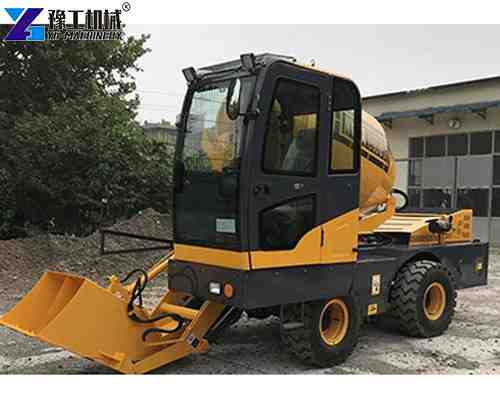

Self Loading Mobile Concrete Mixer Parameters
| Category | Specifications |
| Model | CMT1500 |
| Rated Power | 55kW |
| Engine Model | Quanchai 4B2-75m22 |
| Dimensions (L×W×H)(mm) | 6400×2550×2650 |
| Wheelbase | 2400mm |
| Vehicle Weight | 4185kg |
| Driving Form | Torque converter |
| Maximum Climbing Angle | 30° |
| Minimum Turning Radius | 4700mm |
| Minimum Ground Clearance | 280mm |
| Maximum Speed | 30km/h |
| Gearbox Model | ZL-265 gearbox |
| Gearbox Gears | 4 forward 4 back |
| Water Tank Volume | 400L |
| Water Supply Method | Time relay |
| Fuel Tank Capacity | 63L |
| Oil Capacity | 16L |
| Hydraulic Capacity | 63L |
| Reducer | KY07-2-0 |
| Pump | FC 50/40 |
| Motor | BM5-160 |
| Drum Capacity | 1700L |
| Drum Rotation Speed | 13 rpm |
| Concrete Yield | 1.5 m³/can |
| Mixing Drum Features | Double helical agitating screw and convex bottom |
Problems Encountered by Thai Customers and Application Solutions

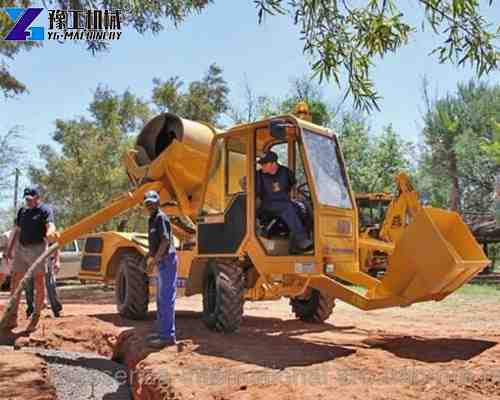

At the beginning of the project, the customer used a second-hand trailer-mounted concrete mixer, but due to the need for additional loading trucks and manual batching, the efficiency is low, and the supply of raw materials is not uniform, often due to the delay in transportation caused by the waste of the concrete condensation. The customer wanted to find a new type of equipment that can automatically load materials, flexibly transfer the site, and does not depend on the mixing plant.
YG technical team recommended self loading concrete mixer for sale, which can be operated by one person to automatically complete loading, mixing and transportation for the mountainous areas where transportation is difficult and labor is in short supply. It is also equipped with a closed cockpit, which can adapt to a variety of weather conditions. In the customer’s feedback, it is mentioned that “this self loading concrete truck mixer has saved more than 30% of the construction time for our mountainous highway construction project.”
Maintenance Advice of Self Loading Concrete Truck Mixer
In order to ensure the stability of the self loading concrete mixer for sale during long-term intensive construction, routine maintenance is essential. It is recommended that operators clean the concrete residue in the mixing drum after each operation to avoid solidification for the next use. Regularly check the oil volume and pressure value of the hydraulic system to ensure that the oil circuit is smooth. For key components such as loading arms, mixing blades, drive motors, etc., lubrication and fastening should be carried out once a week to ensure firm connection and prevent wear and tear.
In addition, the electrical control system needs to be kept dry, and it is recommended to wipe the inside of the cockpit with a dry cloth after the construction is finished on rainy days. Tire air pressure, brake system and pump pressure should also be included in the monthly check items, especially in mountainous areas or high temperature environment running frequently, it is more important to increase the frequency of maintenance. Reasonable maintenance not only extends the service life of the self loading concrete truck mixer, but also effectively avoids construction interruptions and improves overall project efficiency.

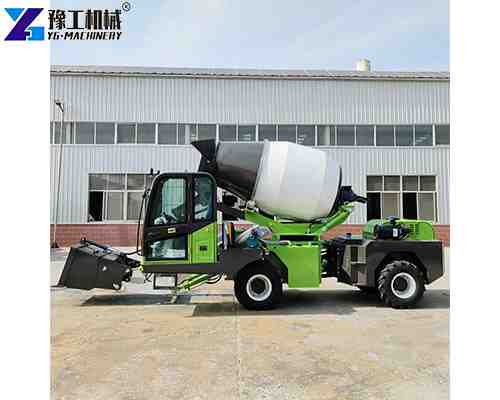

Self Loading Concrete Mixer for Sale in YG Manufacturer
YG Machinery has been in the construction equipment manufacturing field for more than ten years, and is committed to providing intelligent and efficient concrete machinery and equipment. Our products have been exported to more than 20 countries, covering markets in Southeast Asia, the Middle East and Africa. We not only provide products, but also customized services and remote technical support to ensure smooth delivery and worry-free use of the equipment.
Besides this product, we also recommend the following related equipments: small crawler concrete pump truck, small mobile mixing plant and so on. Contact us to know more details now!【WhatsApp/WeChat/Phone/Skype】+86 13837115193.
