In late 2024, Faisal, the project leader for an underground garage renovation in Abu Dhabi, was faced with a pre-construction challenge: the original structure needed to be partially cut and demolished, but the working environment was restricted – no water supply underground and close to high-voltage electrical equipment. Traditional cutting equipment with cooling methods was rejected due to safety risks and operating costs. In the end, he chose the 600TM hydraulic wall saw recommended by YG, and gave feedback that ‘the construction efficiency is high, and it saves concrete wall cutting cost, including a lot of labour and time cost’. This product has become the preferred solution for many underground renovation projects in the UAE.

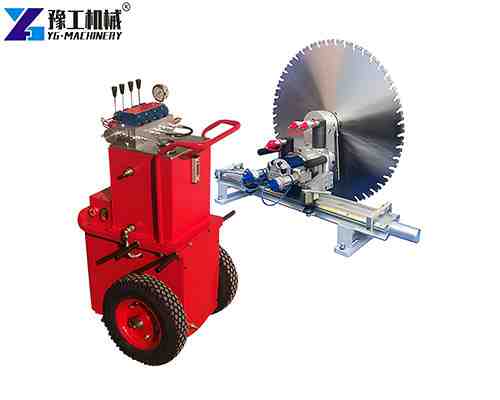

600TM Hydraulic Wall Saw Parameters
| Parameters | 600TM (Recommended) |
| Max. Power | 25KW |
| Motor Cooling Method | Air cooling |
| Rated Voltage | 380V 50HZ 3phase |
| Pressure Stages | 3 |
| Max. Operating Pressure | 200bar/20Mpa |
| Oil Flow Rate | 30-80L/min |
| Dimensions (L*W*H) | 650mm*600mm*1150mm |
| Weight | 180kg |
| Remote Controller Parameters | Wireless control |
| Control Voltage | 24V |
| Remote Controller Dimensions (L*W*H) | 300*200*150mm |
| Remote Controller Weight | 2kg |
| Saw Blade Diameter Range | 600-1400mm |
| Cutting Depth | 620mm |
| Center Hole of Blade | 60mm |
| Saw Blade Life | Sharp Type: ~15m² |
| Export Quality: ~20m² | |
| Max. Working Pressure | 180bar / 18MPa |
| Max. Oil Flow Rate | 100L/min |
| Gearing | Gear |
| Rotation Speed | 450/900/1350 RPM |
| Dimension | 400mm × 420mm × 400mm |
| Weight | 38kg |
600TM Wall Sawing Machine Features
Adopts air-cooled system, avoiding the dependence of water-cooled models on drainage conditions, which is very suitable for working in environments with no water and close to power facilities.
Compared with the common concrete wall saw for sale on the market, this model strikes a balance between stability and portability. Customers don’t need a large external cooling system, and the installation process is much quicker. Its scope of application includes bridge widening, underground renovation, underground garage partition wall cutting and other scenarios, is the current UAE engineering contractors more recognised cost-effective equipment.
Reducing Concrete Wall Cutting Cost in UAE Projects
In Faisal’s projects, the use of traditional cutting equipment not only has difficulties in cooling water discharge, but also faces high labour costs, leading to a continuous rise in overall concrete wall cutting costs. The air-cooled design of the 600TM hydraulic wall saw simplifies the construction process, improves safety and reduces maintenance. Particularly in the UAE, where the climate is hot and the terrain is variable, the water-free operation allows for more flexible cutting and avoids delays due to water supply problems.
Customer Test Feedback

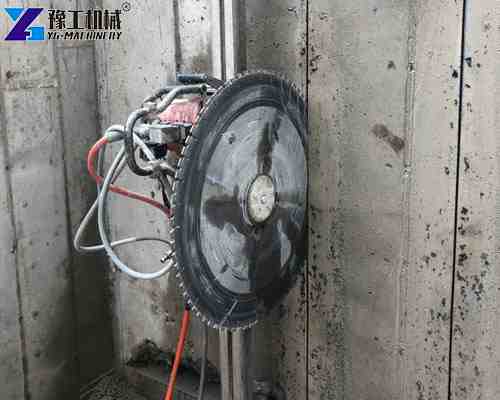

In addition to its performance advantages, the product has also demonstrated its efficient cutting ability in practical applications. For example, the wall sawing machine completed the 620mm depth wall cutting in Faisal in one go, with neat cutting joints and good dust control, greatly saving the subsequent cleaning costs. In particular, he noted, ‘This machine has given me a new perspective on “construction costs” compared to the equipment I’ve used before.
YG – A Trusted Manufacturer of Wall Sawing Machines
YG team provides a full set of support in terms of installation guidance and post-training, guaranteeing zero obstacles to the customer’s construction. Combined with the price advantage of 600TM, its performance in controlling the cost of concrete wall cutting is particularly outstanding, and it has been applied in many projects in Dubai, UAE, Saudi Arabia, Qatar and other places.
In addition, YG also provides a variety of concrete demolition solutions, including wire saw for concrete, diamond wall cutting machine, wire saw cutting machine, etc. Welcome to contact us for more technical information and quotation. WhatsApp/WeChat/Phone/Skype】+86 13837115193.
