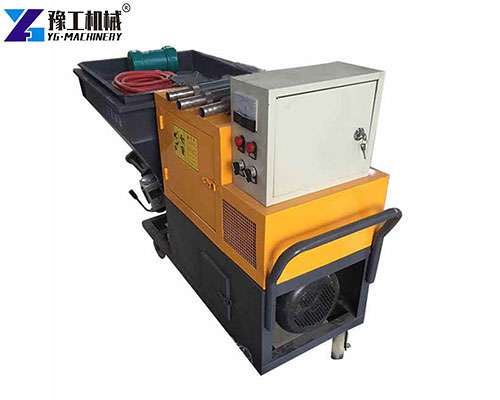

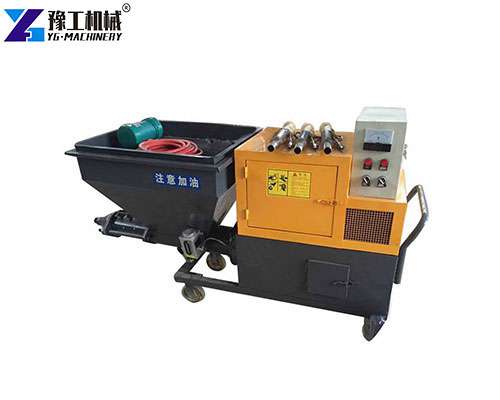

The cement plaster spray machine is a modern construction tool designed to automate the process of wall plastering, making it faster, cleaner, and more consistent. It mixes and sprays cement mortar directly onto walls, helping replace manual labor and significantly increasing productivity. With the ability to work on various surfaces, including concrete, brick, and block walls, it’s widely used in residential, commercial, and industrial projects. In addition to speed, it ensures better adhesion, reduces material waste, and minimizes dust pollution.
Cement Plaster Spray Machine Parameters
| Model | YG-311 | YG-318 | YG-711 |
| Capacity | 3m³/h | 3-5m³/h | 4-6m³/h |
| Pressure | 3 Mpa | 3 Mpa | 3 Mpa |
| Material Ratio | 0.7-1:1:3 (Water, Ash, Sand) | 0.7-1:1:3 (Water, Ash, Sand) | 0.7-1:1:3 (Water, Ash, Sand) |
| Voltage | 220V/380V 50Hz | 380V three-phase 50Hz | 380V three-phase 50Hz |
| Main Motor Power | 4kw | 7.5kw | 7.5kw |
| Particle Size | Below 4mm | Below 8mm | Below 8mm |
| Convey Distance | Horizontal 30m | Horizontal 50m | Horizontal 50m |
| Vertical 20m | Vertical 30m | Vertical 30m | |
| Volume | 60L | 80L | 100L |
| Air Consumption | 0.3m³/min | 0.3m³/min | 0.3m³/min |
| Weight | 200kg | 320kg | 340kg |
How It Works
The machine uses a motor-powered pump to deliver a pre-mixed mortar through a hose and out of a spray gun. Meanwhile, an air compressor is used to atomize the mix, creating a fine, uniform coating. In addition, the adjustable flow and nozzle ensure precise control for different surfaces and materials. As a result, the operation is straightforward and can be quickly mastered, making it suitable even for teams with limited experience.
Key Benefits
- High Output Efficiency: It can cover over 100 square meters per hour, saving time and replacing the work of 15 manual workers.
- Cost and Material Savings: Reduces wastage and labor costs while ensuring uniform coating, which leads to lower long-term maintenance needs.
- Compact and Portable: The structure is compact, ideal for narrow or indoor construction environments, and easy to transport.
- Simple Operation: Requires minimal training and is safe to operate, making it an ideal solution for a wide range of projects.
Application of Cement Plaster Spray Machine

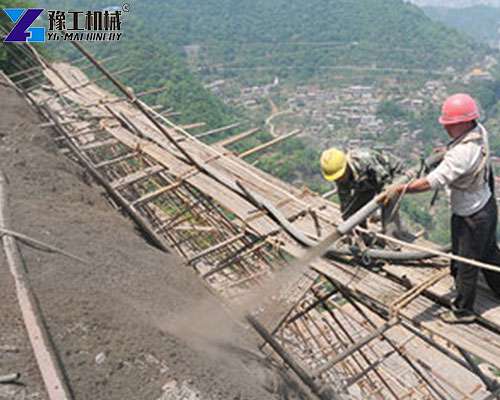

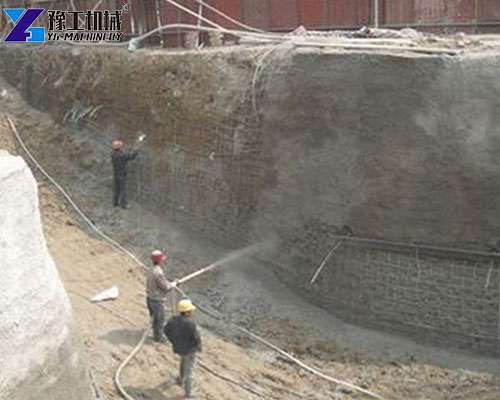

- Wall Plastering: Suitable for spraying cement mortar on interior and exterior walls in residential or commercial settings.
- Bridge and Tunnel Grouting: Efficient for applying bonding and sealing layers in infrastructure projects.
- Fireproof and Waterproof Coatings: Perfect for spraying specialized protective coatings in industrial buildings.
- Decorative and Acoustic Layers: Used in architectural finishes and soundproofing installations.
- Thermal Insulation Systems: Applies insulation mortar evenly to improve energy efficiency in buildings.
Cement Mortar Spraying Machine Price
The cement plaster spray machine price depends on the model, motor power, output capacity, and additional features. YG Machinery provides factory-direct pricing with customizable options for different construction needs. Whether you’re a contractor, rental company, or developer, there is a model to match your budget and performance requirements.
Why Choose YG Machinery?
YG is a trusted cement plaster spray machine manufacturer with years of experience in construction machinery. Every product is rigorously tested to ensure stability and performance. We provide global shipping, reliable after-sales service, and expert technical support. In addition to plaster sprayers, YG also supplies: shotcrete machines, hydroseeding machines, mini concrete pumps, hydraulic scissor lift platforms, telescopic telehandlers, mini spider cranes, dry ice blasting machines, etc. Contact us now. 【WhatsApp/WeChat/Phone/Skype】+86 13837115193.
