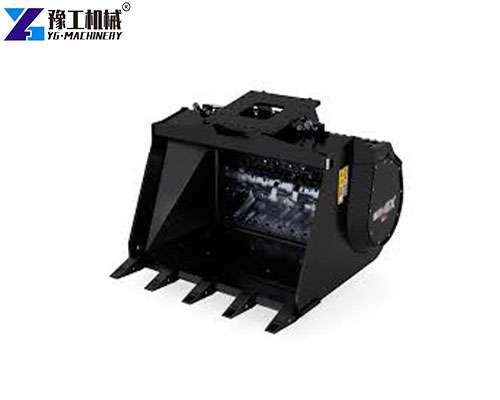

Concrete Crusher Bucket

The concrete crusher bucket is an innovative and highly efficient tool used for crushing concrete and construction waste directly on-site. It attaches easily to an excavator and utilizes the machine’s hydraulic power to crush materials such as concrete, asphalt, stone, and even mixed construction debris. This eliminates the need for transportation of materials, reducing overall project costs and enhancing productivity.

Request A Quote

Concrete Crusher Bucket Parameters

SPECIFICATION	UNIT	YG-1	YG-2	YG-3	YG-4	YG-5	YG-6	YG-7	YG-8
Carrier Weight	Ton	8-12	14-18	120-25	25-30	30-35	35-50	50-75	≥ 75
Load Capacity	m³	0.15	0.55	0.66	0.70	0.90	1.30	1.60	2.30
Opening Dimensions	mm	L540 H250	L610 H510	L740 H510	L850 H510	L910 H540	L1205 H540	L1300 H600	L1450 H700
Output Setting	mm	15-60	15-60	15-130	15-135	15-140	15 – 145	40-150	100-200
Length (A)	mm	1240	1745	2000	2050	2185	2185	2930	3560
Width (B)	mm	1000	1000	1150	1300	1340	1620	1880	2090
Height (C)	mm	770	1100	1200	1400	1390	1390	170	2065
Weight	Ton	0.75	1.6	2.3	3	3.5a	4.8	7.5	10.5
Oil Flow	l/min	90	98	140	160	180	210	320	380
Pressure	bar	200	220	220	220	220	220	250	230
Counter	bar	10	10	10	10	10	10	10	10
Max. Production	m³/h	10	23	31	34	42	53	88	120

Request A Quote

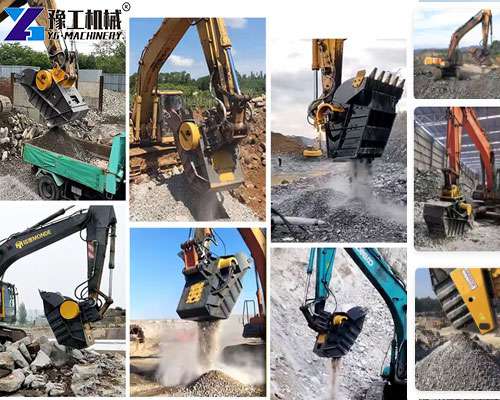

Applications of Concrete Crusher Buckets

1. Construction and Demolition: Concrete crusher buckets are indispensable in recycling materials like concrete, asphalt, and mixed demolition debris. They allow for efficient on-site processing, reducing the need for transporting waste to landfills and enhancing overall project productivity.
2. Road Construction: These buckets are highly effective in crushing stones, gravel, and other aggregates for road projects. They produce high-quality, reusable materials that can be directly used in the construction of roads, reducing material costs and improving efficiency.
3. Waste Management: Concrete crusher buckets excel in waste management by breaking down large construction debris into manageable sizes. This helps reduce landfill waste, minimize disposal costs, and promote sustainability by recycling valuable materials for reuse in future construction projects.

Request A Quote

Key Advantages of Skid Steer Crusher Bucket

1. Cost-effective and Efficient: A concrete crusher bucket allows businesses to reuse materials on-site, cutting transportation and disposal fees. It significantly reduces waste by turning debris into reusable aggregate.
2. Versatility: Concrete crusher buckets can be used on a variety of materials, including brick, stone, and mixed demolition debris. This makes them highly versatile in numerous industries, including road construction, mining, and demolition.
3. Environmentally Friendly: By reducing waste and recycling materials directly on-site, concrete crusher buckets support sustainability. The machine eliminates the need for landfill use and minimizes the carbon footprint of transportation.
4. Ease of Use and Maintenance: These crusher buckets are simple to operate, with minimal maintenance required. The hydraulic motor system provides high efficiency, while the rugged design ensures durability even under heavy use.
5. Capacity: Varies based on the model, with larger buckets capable of processing over 100 cubic meters per hour.
6. Compatibility: Suitable for excavators ranging from 8 tons to over 75 tons.
7. Durability: Built with high-strength wear-resistant materials to ensure long-lasting performance even in the toughest environments.

Request A Quote

Working Principle of the Machine

The concrete crusher bucket operates with a two-jaw system, where one jaw is fixed and the other moves back and forth to crush the material. The design of the bucket ensures an aggressive crushing motion, breaking down concrete into smaller pieces efficiently. The output is suitable for reuse in construction projects, making it a practical solution for large-scale demolition and recycling tasks.

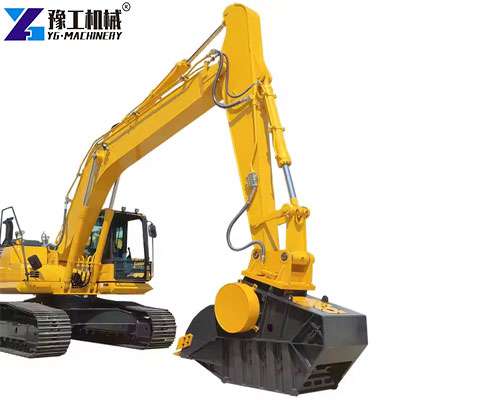

Matching with Excavators

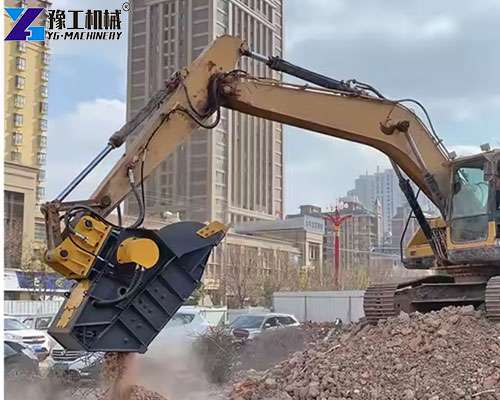

Concrete crusher buckets are compatible with a wide range of excavators. Whether it’s a skid steer crusher bucket for small-scale projects or a large excavator crusher attachment for industrial-scale operations, these machines provide unmatched flexibility and efficiency.

Excavator Crusher Bucket for Sale in YG

Looking for a reliable excavator crusher bucket for sale? YG Machinery offers a wide range of models to suit various excavator sizes and project needs. We are a trusted manufacturer with competitive prices and excellent customer service. In addition to the concrete crusher bucket, YG Machinery also provides other construction equipment like hydraulic breakers, demolition shear, and excavator rock saws, little mini excavator, etc. For more information on our full product lineup, contact YG Machinery today!【WhatsApp/WeChat/Phone/Skype】+86 13837115193.
