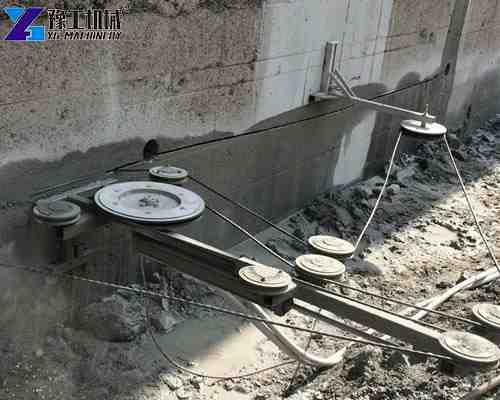

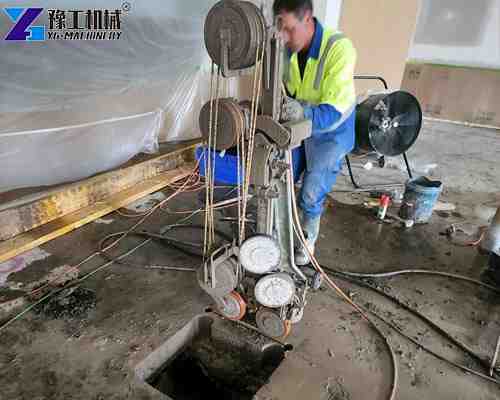

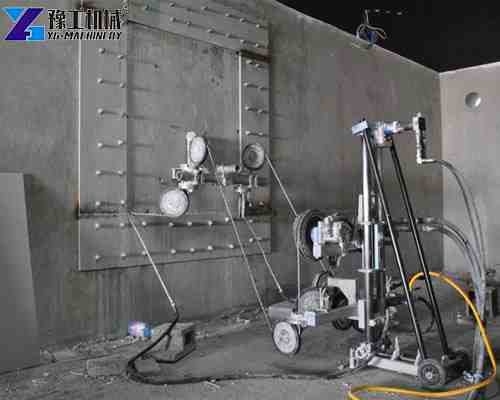

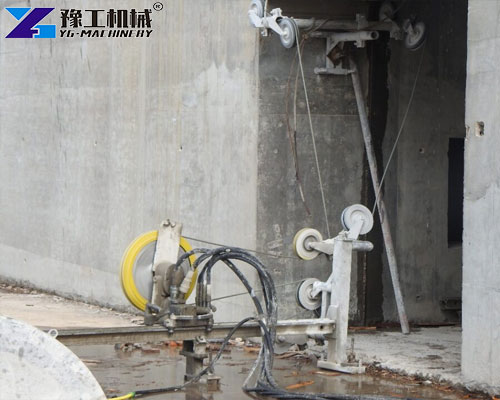

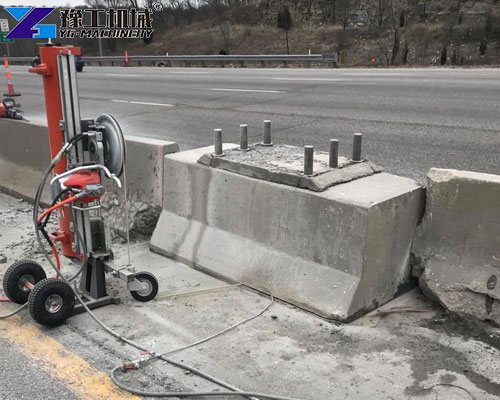

In complex concrete cutting projects, YG’s new 600TM concrete rope saw machine performs well, especially suitable for cutting bridges, tunnels, large infrastructure and underwater concrete structures. Compared with traditional cutting methods, wire saw cutting is more efficient and smoother, and can easily cope with the cutting needs of high-strength concrete and steel-reinforced mixtures, together with high-quality concrete rope saws to enhance the overall construction efficiency.

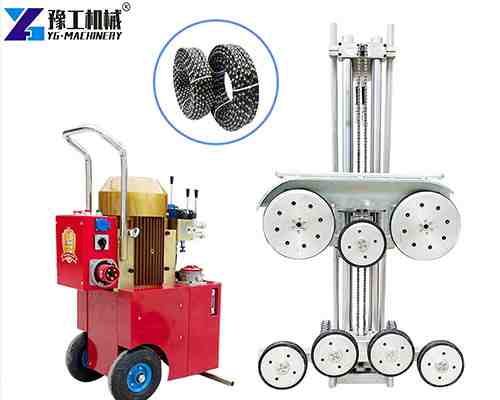

600TM Wire Saw Cutting Machine Parameters

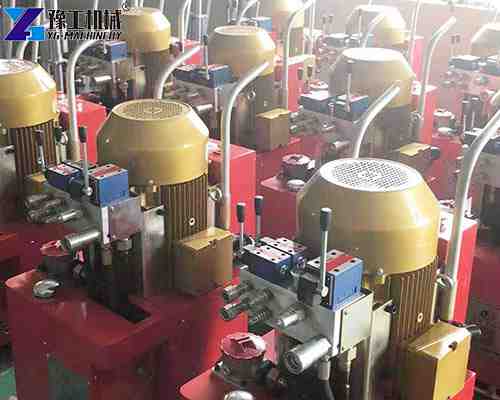

| Hydraulic pump station | 600TM (Recommended) |
| Max. Power | 25KW |
| Motor Cooling Method | Air Cooling |
| Rated Voltage | 380V 50HZ 3phase |
| Pressure Stages | 3 |
| Max. Operating Pressure | 200bar/20Mpa |
| Oil Flow Rate | 30-80L/min |
| Dimensions | 650mm*600mm*1150mm |
| Weight | 180kg |
| Rope sawing machine | 90AM |
| Number of Motors | 2pcs |
| Max. Wire Storage | 12m |
| Wire Winding Length | 15m |
| Length | 1050mm |
| Width | 700mm |
| Height | 2100mm |
| Driving Wheel Diameter | 280mm |
| Storage Wheel Diameter | 200mm |
| Weight | 110kg |
Diamond Rope Selection Suggestion: Different Scenarios, Different Solutions
600TM concrete rope saw equipment supports a variety of specifications diamond wire saw rope, for different application scenarios, it is recommended to reasonably select the type of rope. For general concrete structure, it is recommended to use sintered diamond ropes, which are wear-resistant and impact-resistant, suitable for bridges, floor slabs and other engineering projects; while in underwater or metal structure cutting, it is recommended to use brazed ropes to ensure that the cutting speed and service life are maintained under high humidity or special material conditions. In actual application, users can flexibly adjust according to the project characteristics to maximize the effectiveness of wire saw for concrete.
Safety and Operation Precautions of Wire Saw for Concrete
During actual use, the wear and tear of the DIAMOND WIRE SAW ROPE should be checked regularly to prevent the rope from breaking due to fatigue and causing accidents. At the same time, before operation, make sure that the tensioner pulley and guide pulley are firmly installed, and keep the equipment level to avoid the rope jumping or jamming during the cutting process. During the operation, it is recommended to wear protective mask and gloves to prevent flying debris from hurting people.
Choose YG, quality and service at the same time

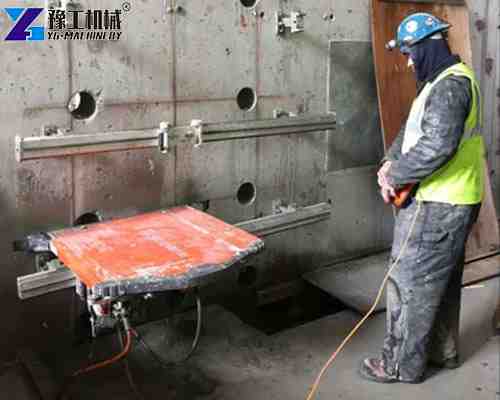

As a professional manufacturer of concrete rope saw equipment in China, YG provides cutting solutions with advanced technology and stable performance, and its products have been widely used in highways, railroads, tunnels, bridges and municipal projects. In addition to wire saw cutting, YG also recommends electric wire saw machine, concrete wall saw, diamond wire saw cutting, rock splitter, etc. Contact us now to get more wire saw cutting application solutions and real-time quotes for your projects! 【WhatsApp/WeChat/Phone/Skype】+86 13837115193.
