A concrete shot blasting machine is a powerful and versatile solution designed for cleaning, preparing, and restoring concrete and asphalt surfaces efficiently. Widely used in industrial, commercial, and municipal projects, this machine ensures optimal surface quality before coating, resurfacing, or maintenance.
Key Applications of Concrete Shot Blasting Machines
- Concrete Surface Cleaning

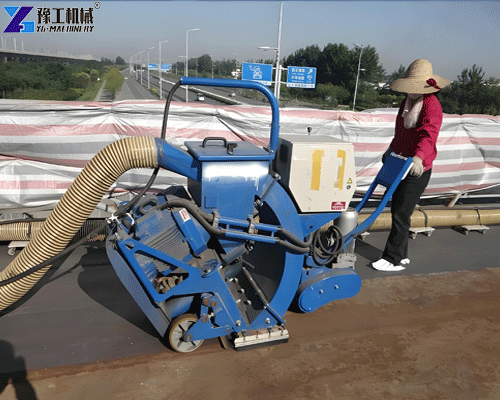

The machine removes dirt, grease, paint, and other contaminants from concrete floors or road surfaces, ensuring a clean base for coatings. This makes it ideal for projects requiring high-quality finishing. - Floor and Pavement Preparation

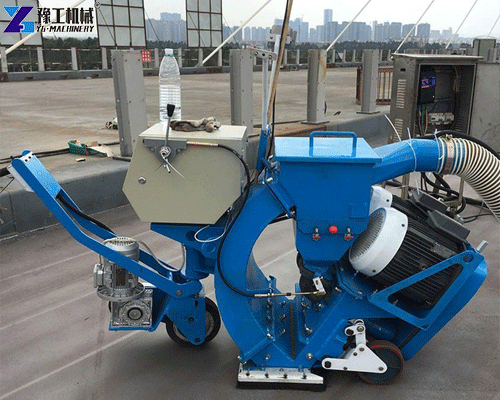

A concrete shot blaster roughens the surface of concrete or asphalt to improve adhesion for epoxy coatings, sealers, or anti-slip overlays. It provides a uniform texture for better durability and coating performance. - Removal of Defects and Aging Layers

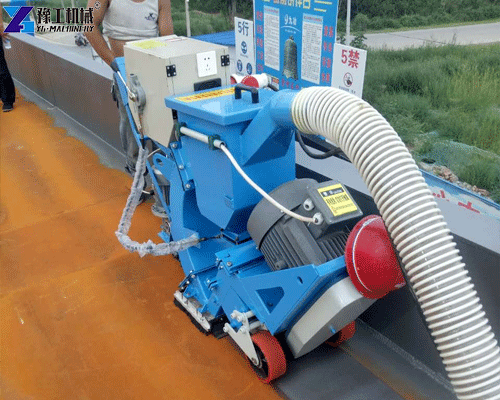

Worn-out or damaged concrete layers can compromise the structural integrity of a floor or pavement. Concrete shot blasting machines remove weak layers, old coatings, and uneven spots to create a smooth, strong base.
Advantages of Using a Concrete Shot Blasting Machine
- High Efficiency: Covers large areas quickly, significantly reducing labor costs.
- Durable Results: Leaves a clean, roughened surface for long-lasting coatings.

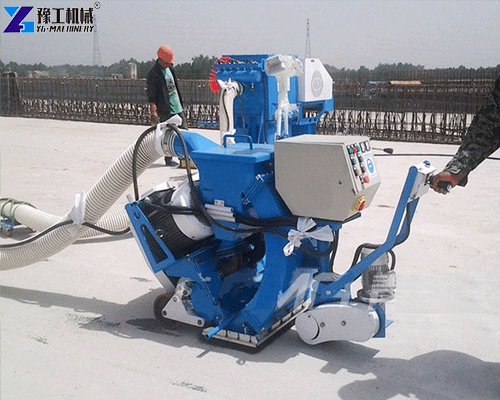

- Versatility: Suitable for industrial floors, warehouse floors, airport runways, parking lots, and road surfaces.
- Eco-Friendly: Minimal dust and debris compared to traditional grinding or sanding.
Choosing the Right Machine of Floor Shot Blaster
When selecting a concrete shot blaster, consider the following:
- Surface Size: Large floor areas may require self-propelled machines, while smaller spaces can use walk-behind models.
- Surface Type: Choose machines designed for concrete, asphalt, or mixed surfaces.
- Power Source: Diesel, electric, or hybrid models are available depending on project requirements.
Available Concrete Floor Shot Blasting Machine for Sale
YG Machinery offers a range of concrete shot blasting machines for sale, including:

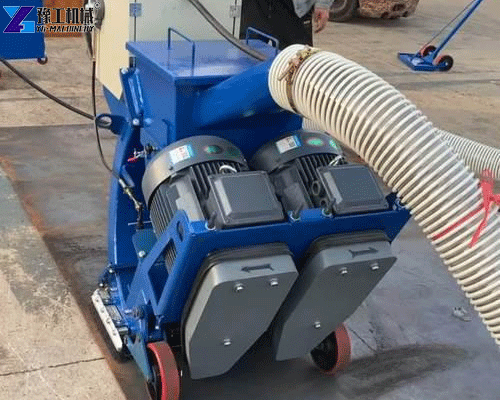

- Concrete Shot Blaster for Sale: Ideal for road maintenance and large-scale projects.
- Floor Shot Blaster for Sale: Compact and efficient for warehouses, factories, and commercial floors.
- Walk-Behind Floor Shot Blaster: Flexible and easy to maneuver for small to medium floors.
Each model is engineered for durability, high efficiency, and minimal maintenance.
Concrete Floor Shot Blasting Machine Parameters
| Model | YG-270(Single) | YG550/600(Double) | YG-850(Double) | |
| Shot Blasting Wheel Diameter | 200mm | |||
| Working width | 270 mm | 550/600 mm | 800 mm | |
| Walking speed | 0.5~20 m/min | 0.5~33 m/min | ||
| Concrete surface cleaning efficiency | ≥180 m2/h | ≥400 m2/h | ≥600 m2/h | |
| Steel plate surface cleaning efficiency | 15-25 m2/h | 75-100 m2/h | 100-160 m2/h | |
| Dust connection pipe diameter | 120 mm | 150 mm | ||
| Suggest the diameter of steel balls | 1.2-1.5 mm | 1.5-1.8 mm | ||
| Steel pill consumption | 10 g/m2 | |||
| Supporting dust collector | Seven-core automatic backflush vacuum cleaner | Eight-core automatic backflush vacuum cleaner | ||
| Shot wheel motor | Power consumption | 11 kW | 11*2 kW | 15*2 kW |
| Input Current | ≤ 15 A | ≤ 22*2 A | ≤ 28*2 A | |
| Walking motor | Power consumption | 0.5 kW | 1.5 kW | |
| Input Current | 1 A | 3 A | ||
| Size (mm) | 1000*300*1100 | 1950*720/775*1400 | 1950*1020*1550 | |
| Weight | 150 kg | 570 kg | 700kg | |
| Power connection requirements | 400V, 50Hz, 100A, CEE socket | |||
FAQs about Concrete Shot Blasting Machine
Q1: What is the difference between a floor shot blaster and a concrete shot blaster?
A: Floor shot blasters are generally designed for smooth or medium-sized industrial floors, while concrete shot blasters are heavier-duty machines suitable for large concrete or asphalt surfaces.
Q2: Can these machines remove old coatings and paints?
A: Yes, concrete shot blasting machines efficiently remove old paint, coatings, and surface contaminants to prepare the base for new layers.
Q3: Are there electric models available?
A: Yes, YG Machinery provides electric, diesel, and hybrid models depending on your site requirements and environmental considerations.
Why Choose YG’s Floor Shot Blaster?
- Quality Guarantee: Built with robust components for long-term operation.
- Global Service: Available in multiple countries with prompt support.
- Custom Solutions: Machines can be tailored for specific project sizes and surface types.
- Proven Track Record: Trusted by contractors and industrial clients worldwide.
A concrete shot blasting machine is an essential tool for contractors, road maintenance teams, and industrial floor specialists. Whether you need a concrete shot blaster for sale or a floor shot blaster for sale, these machines deliver high efficiency, superior surface preparation, and long-lasting results.
