Diamond Core Drill Rigs

In industries like mining exploration, geological surveys, and geothermal development, drilling rig performance directly determines whether a project can be completed smoothly and economically. Do you encounter drill bit deflection, breakage, or low core recovery rates when drilling cores in hard rock, faults, or complex formations?
YG Machinery specializes in a range of fully hydraulic diamond core drill rigs (Diamond Core Drill Rigs/Hydraulic Coring Machines), suitable for a wide range of applications, including metal and non-metallic mineral exploration, geothermal exploration, and coalfield pre-drilling. Our rigs offer significant advantages in stability, high penetration efficiency, and ease of operation, making them an ideal choice for complex geological projects. Contact us today for more details!e details now!

Request A Quote

YG Diamond Core Drill Rig Parameters

Model	YGX-400	YGX-600	YGX-800	YGX-1000
Drilling Depth(M)	180-400-500	200-600-650	400-800-1000	500-1000-1100
Rated pressure(MPA)	21	21	25	28
Rated Flow(L/min)	168	192	260	300
Heat Dissipation Mode	Air cooling+water cooling
Engine Brand	Yuchai	Yuchai	Yuchai	Cummins
Rated power/speed	78kW/ 2400r/min	92kW/ 2400r/min	92kW/ 2400r/min	154kW/2400r/min
Drilling Angle(°)	0-90	45-90	45-90	45-90
Lifting Force(T)	12	16	24	30
Feed Force(T)	6	8	12	15
Hydraulic Mud pump flow	30-90（L/min）	30-90（L/min）	90-180（L/min）	90-180（L/min）
Hydraulic Mud pump power	4-7(MPA)	4-7(MPA)	4-7(MPA)	4-7(MPA)
Dimension	4000*1900*1800mm	4000*2000*1800mm	5500*2100*2000mm	6000*2200*2400mm
Weight	4.3T	4.5/5.5T	6.5T	7.5T

YG Diamond Core Drilling Rig is compatible with the traditional diamond core drilling rigs and is especially suitable for deep hole geological drilling which requires high coring rate and core integrity. Compared with traditional equipment, it is more stable in operation and the drilling accident rate is significantly reduced, which makes it suitable for highly demanding projects.

Request A Quote

Features of Diamond Core Drill Rigs

1. Fully Hydraulic Control System: All operations, including propulsion, rotation, lifting, chuck, and clamping, are centrally controlled by the hydraulic system, eliminating manual errors and enhancing safety.
2. High-Quality Seals and Bearings: Imported seals and thickened main bearings ensure stable performance and extended life in hard rock, fault zones, and complex rock formations.
3. Efficient Drill Bit Combination: Equipped with high-performance diamond drill bits, this drill significantly improves penetration rate, core integrity, and drilling speed.
4. Adaptable to Complex Geological Environments: Maintains vertical and stable drilling in fractured zones, aquifers, and variable rock formations.
5. Easy Operation + Easy Maintenance: Modular design enables rapid routine maintenance and troubleshooting.
6. Export Quality & Global Service: Our products have been exported to markets across Europe, America, Southeast Asia, Africa, and beyond. We offer customized services, global parts supply, and remote technical support.

Request A Quote

Typical applications of Diamond Core Drill Rigs

1. Detailed investigation of metal ore resources;
2. Coal mine gas pre-drilling construction;
3. Geothermal well drilling;
4. Geotechnical engineering investigation;
5. Oil and gas exploration auxiliary hole construction;

For customers who need easy mobility and flexible construction, YG also provides hydraulic crawler drill equipped with crawler system, which can be used in mountainous areas, forested areas and other complex terrain.

Diamond Drill Bit Oil Rig

Many customers confuse diamond core drill rigs with diamond drill bit oil rigs, which are used in different applications: the former is designed for geological exploration in mines, while the latter is mostly used in the construction of large-diameter wells on oil rigs, with completely different bit sizes, configurations and torque requirements. The drill bit size, structure and torque requirements are completely different. If the customer is engaged in mineral exploration, it is more appropriate to choose diamond core drill rigs for mining.

Request A Quote

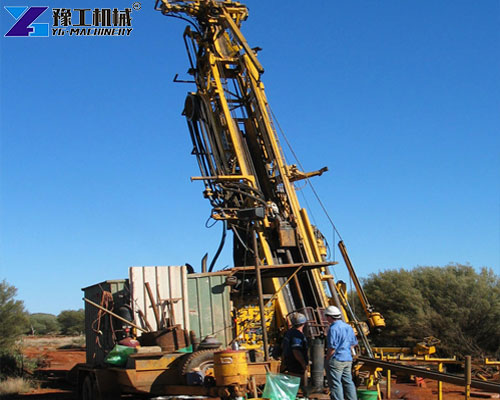

Customer Case: Diamond Core Drilling in Tanzania Gold Mine

In 2024, a mining contractor from Tanzania purchased the YGX-600 diamond core drill rig for a gold exploration project near Lake Victoria. The terrain was rocky and unstable, making drilling efficiency a major challenge. After using the YG rig for two months, the customer reported a 30% increase in core recovery rate and smoother operation even in fractured formations.

“YG’s diamond core drill rig runs very steadily and saves us time in every drilling section. Their technical support team was responsive and professional.”
— Mr. Daniel, Project Engineer, Tanzania Mining Co.

The client has since ordered a second unit to expand their drilling capacity in 2025.

Request A Quote

Operation Tips and Safety Precautions

1. Before rope coring operation, check the status of wire rope, hook and core barrel to avoid rope breakage and drill jam;
2. Reasonably adjust the propulsion force during the drilling process to prevent abnormal wear or breakage of the drill bit;
3. The hydraulic system shall be checked regularly for oil cleanliness to ensure that the main pump and distribution valve work normally;
4. Clean the mud in the drill pipe in time after operation to prevent solidification and blockage.

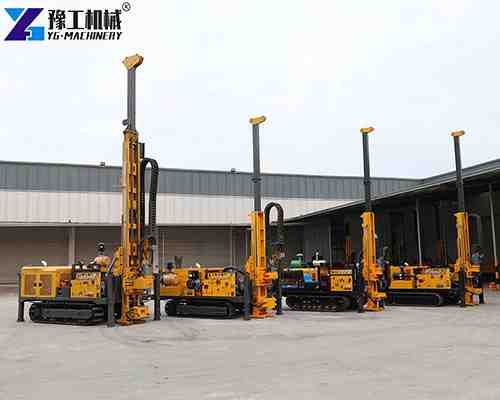

Diamond Drill Rig for Sale in YG Machinery

As a professional manufacturer of diamond core drill rigs, YG Machinery provides customers with a full set of mine drilling solutions – from drill rig selection, customized services to YG Machinery provides customers with a full range of mining drilling solutions. Our products not only have mature technology and reasonable price, but also widely exported to Europe, America, Southeast Asia, Africa and other markets, trusted by users.YG other popular products: crawler type hydraulic rig, water well drill rig, hydraulic core drilling machine, etc. Contact us to know more details now!【WhatsApp/WeChat/Phone/Skype】+86 13837115193.
