DTH Drilling Machine

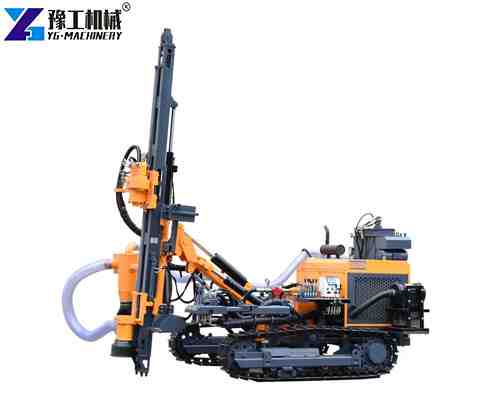

YGL (electric + diesel dual-power) and YGM (diesel-power) series DTH drilling machine are high-efficiency crawler drilling rigs developed by YG for small- to medium-sized projects, which are especially suitable for mountain construction, water well drilling, blasthole drilling, geological exploration and other operation scenarios, taking into account the construction efficiency and portability of the equipment.

Request A Quote

Mobile down Hole Drilling Rig Parameters

Model	YGL130 (diesel and electric engine)	YGM150T (diesel engine)	YGM153 (diesel and electric engine)
Drilling diameter	φ83-φ130mm	φ90-φ150mm	φ83-φ165mm
Drilling depth	30m	30m	30m
Rock Hardness	f=6～20	f=6～20	f=6～20
Travelling Speed	2.5km/h	2.5km/h	2.5km/h
Climbing ability	30º	30º	30º
Electric System	24V	24V	24V
Power type	Diesel engine+ electric engine	Diesel engine	Diesel engine+ electric engine
Diesel tank capacity	70（L）	70（L）	70（L）
Oil tank capacity	109（L）	148（L）	155（L）
Total machine weight	3.7t	5.2t	5.8t

Request A Quote

Typical Application Scenarios

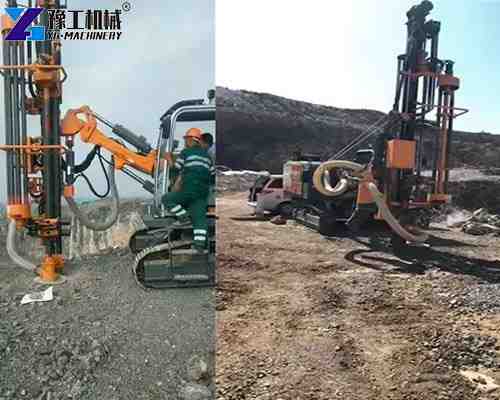

1. Water Well Drilling in Mountainous Areas
   In mountainous areas where power supply is limited, YGL/YGM crawler drilling rigs become the first choice for water wells and irrigation wells in mountainous areas by virtue of their high off-road performance and independent diesel power.
2. Construction Slope Anchor Construction
   In slope protection projects such as highways, bridges, etc., this series of drilling rigs support different angles of hole opening and adapt to multi-angle anchor hole drilling to ensure the stability of slopes.
3. Small Blast Hole Construction
   Suitable for mine pre-blast holes, tunnel guide holes and other scenarios, the drilling speed is fast and precise, which is convenient for subsequent charging and blasting operations.
4. Geological Exploration / Environmental Monitoring
   Suitable for small exploratory wells and sampling wells construction, with different types of drill bits (e.g. alloy, PDC) to cope with different geological conditions.

Request A Quote

Why Choose YG’s YGL / YGM Series?

1. Flexible power: Dual power (electric + diesel) or pure diesel options to adapt to a variety of sites.
2. Portable structure: Crawler chassis structure makes it easy to move around in complex terrain.
3. Cost control: low fuel consumption and low maintenance cost, suitable for long-term operation and rental business.
4. Technical guarantee: provide customized solutions, support fast spare parts service and remote guidance.

Request A Quote

Safety Instructions for Use

1. Check whether the air pressure of the air pressure system is up to standard before starting the machine, to avoid the impactor abnormal blanking.
2. During operation, the operator should wear goggles and ear muffs to minimize the damage caused by high-pressure impact.
3. Regularly replace the filter element and lubrication system to prevent sand and dust erosion leading to system failure.
4. Strictly prohibit the startup of the equipment in the state of fuel leakage or exposed wiring to avoid explosion or short circuit.

These precautions are the basis for guaranteeing the normal operation of mobile sandblasting machine and personnel safety.

Request A Quote

DTH Borewell Machine Price in YG

From product design to manufacturing process, YG always adheres to the customer’s experience-oriented, and is committed to creating a truly “worry-free, labor-saving, money-saving” solution for down hole drilling rigs. We not only provide crawler drilling rigs and portable electric drilling rigs, but also various types of rock drills, hydraulic rock splitters and fully hydraulic water well drilling rigs. In addition, we also provide: crawler down hole drilling rigs, portable water well drilling rigs, hydraulic rock splitters, small rotary drilling rigs, etc. Contact us to know more details now!【WhatsApp/WeChat/Phone/Skype】+86 13837115193.
