The electric stacker lift is an essential piece of equipment in today’s logistics and warehousing industry. Designed for vertical lifting and short-distance transport of goods, it significantly boosts work efficiency while reducing manual labor. This machine runs on electric power and, in many cases, includes electric travel features, making it both eco-friendly and easy to operate. Its compact size and flexible operation make it ideal for use in tight warehouse spaces, production lines, retail outlets, and more.

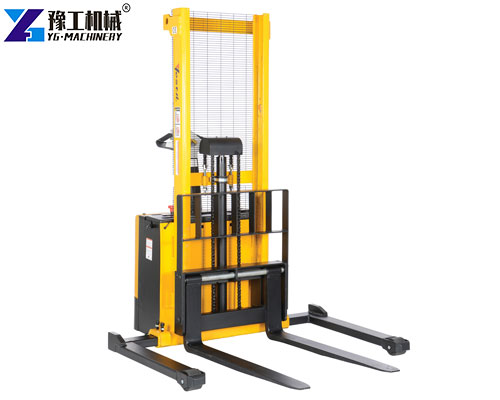

Electric Stacker Lift Parameters
| Product model | YG-40E |
| Drive mode | Electric |
| Driving mode | Stand-up |
| Rated load | 1500kg |
| Load center | 600mm |
| Wheelbase | 1480mm |
| Weight | 720Kg |
| Wheels Tire | Polyurethane wheel |
| Drive wheel size | 250*80mm |
| Front-wheel size | 80*70mm |
| Balance wheel size | 100*40mm |
| Front-wheel width | 530mm |
| Rear wheel width | 650mm |
| Total height (when the fork is lowered to the lowest) | 1950mm |
| Total height (when the fork is raised to the highest) | 4500mm |
| Lifting height | 4000mm |
| Fork height from the ground | 90mm |
| Total length (including pedal) | 2100 (2600)mm |
| Fork length | 1100mm |
| Total width | 850mm |
| Fork width | 180*50*1100mm |
| Adjustable outer width of the fork | 680mm |
| Minimum ground clearance | 30mm |
| Turning radius | 1530mm |
| Mast | 3 masts |
| Performance Travel speed (full load/no load) | 4.5/5.0Km/h |
| Lifting speed (full load/no load) | 100/120mm/s |
| Lowering speed (full load/no load) | 100/100mm/s |
| Braking method | Electromagnetic brake |
| Charger | 24/15 V/A |
| Motor Drive motor power | 0.75Kw |
| Lifting motor power | 2.2Kw |
| Battery voltage/capacity | 24/120V/Ah |
Working Principle of Electric Stacker Machine
This machine operates using electric motors for both lifting and driving. The lifting mechanism is powered by a hydraulic system, enabling the forks to move goods up and down with precision. Movement is smooth and can be controlled manually or via electric steering, depending on the model. It provides stable load handling and is especially effective in areas where traditional forklifts cannot maneuver due to space limitations.
Advantages of Fully Electric Stacker
- Efficiency Boost: Speeds up stacking and transport, reducing downtime.
- Labor Savings: Less manual effort is required, improving overall workplace ergonomics.
- Cost-Effective Operation: Lower energy consumption and maintenance needs lead to long-term savings.
- Space Optimization: The compact design makes it perfect for narrow aisles and small warehouse areas.
- Safety Enhancements: Built-in features like overload protection and emergency braking improve operator and cargo safety.
These benefits make it the go-to stacker in warehouse environments seeking high-performance and low-maintenance solutions.

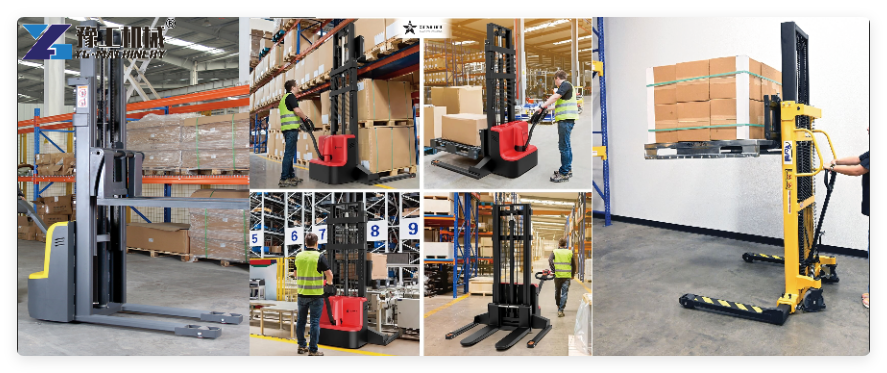

Common Application Areas

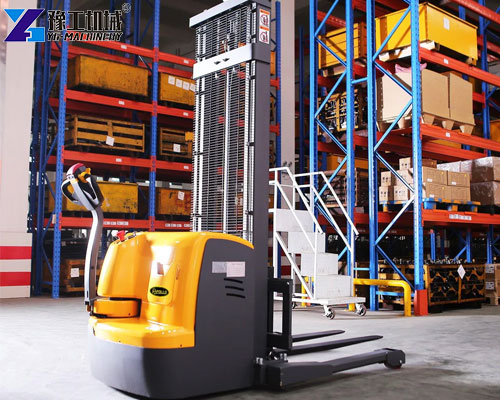

- Warehouses and Distribution Centers: Ideal for stacking pallets and transporting goods within storage areas.
- Manufacturing Workshops: Supports production line efficiency by moving components between workstations.
- Retail Industry: Used to stock shelves and manage inventory in supermarkets and retail chains.
- Cold Storage Facilities: Some models are engineered to operate in cold or humid environments.
- Pharmaceutical and Food Industries: Suitable for clean and controlled environments due to zero emissions during operation.
No matter the industry, this fully electric stacker brings reliability and performance to every lift.

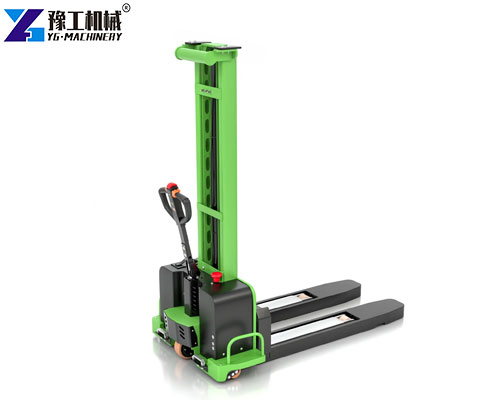

Stacker Machine Price Consideration
The stacker machine price depends on several variables such as lifting height, battery specifications, and additional features like ride-on platforms or smart control systems. YG Machinery offers a variety of configurations to meet diverse operational needs while keeping costs competitive. Whether you’re upgrading your current fleet or purchasing for the first time, our expert team can help you select the right solution.
Contact YG for Professional Electric Stacker Lift Solutions
As a trusted manufacturer, YG Machinery provides reliable electric stacker lift equipment designed to meet the demands of modern logistics. From mini mobile crane and mini crawler crane for sale to hydraulic pallet trucks, scissor lifts, and electric forklifts, we supply a full range of material handling equipment. For more information or a free quote, reach out to our team today.【WhatsApp/WeChat/Phone/Skype】: +86 13837115193.
