A Hydraulic Core Drilling Machine is an advanced drilling system designed for deep drilling in various geological conditions. It is widely used in mining exploration, geological surveys, and infrastructure projects. With high efficiency, strong adaptability, and precise drilling capabilities, this equipment is a preferred choice for professionals seeking reliable core sampling and exploration solutions.Contact us for a quotation:【whatsapp/wechat/phone/Skype】：+86 13837115193.
Hydraulic Core Drilling Machine Key Parameters
| Model | YGX-400 | YGX-600 | YGX-800 | YGX-1000 |
| Drilling Depth(M) | 180-400-500 | 200-600-650 | 400-800-1000 | 500-1000-1100 |
| Rated pressure(MPA) | 21 | 21 | 25 | 28 |
| Rated Flow(L/min) | 168 | 192 | 260 | 300 |
| Heat Dissipation Mode | Air cooling+water cooling | |||
| Engine Brand | Yuchai | Yuchai | Yuchai | Cummins |
| Rated power/speed | 78kW/ 2400r/min | 92kW/ 2400r/min | 92kW/ 2400r/min | 154kW/2400r/min |
| Drilling Angle(°) | 0-90 | 45-90 | 45-90 | 45-90 |
| Lifting Force(T) | 12 | 16 | 24 | 30 |
| Feed Force(T) | 6 | 8 | 12 | 15 |
| Hydraulic Mud pump flow | 30-90（L/min） | 30-90（L/min） | 90-180（L/min） | 90-180（L/min） |
| Hydraulic Mud pump power | 4-7(MPA) | 4-7(MPA) | 4-7(MPA) | 4-7(MPA) |
| Dimension | 4000*1900*1800mm | 4000*2000*1800mm | 5500*2100*2000mm | 6000*2200*2400mm |
| Weight | 4.3T | 4.5/5.5T | 6.5T | 7.5T |
Working Principle of Hydraulic Core Drilling Machine
This machine operates using a hydraulic transmission system that enhances precision and stability. The drilling rig uses a diamond core drill rig to cut through tough rock formations while maintaining high penetration rates. The hydraulic system ensures smooth operation, reducing mechanical wear and tear, which extends the machine’s lifespan.
Advantages of Hydraulic Core Drilling Machine
- High Drilling Efficiency
Powerful hydraulic drive for deep, fast drilling.
Dual-motor spindle with 7200N·m torque.
Strong feed force (152KN) and progress force (295KN) for faster work. - Stable & Safe Operation
Steel crawler base for mobility and stability.
Automated controls reduce manual work and increase safety.
Reinforced chassis enhances structural strength. - User-Friendly Design
Centralized hydraulic, electric, and sensing controls.
Movable spindle for easier tool changes and rope coring.
Ergonomic platform design reduces fatigue. - Multi-Application Versatility
Supports core rig drilling and wireline coring.
Ideal for mining, geotechnical, and construction projects. - Cost-Effective & Eco-Friendly
Durable components with low maintenance.
Optimized fuel use minimizes operating cost and environmental impact.

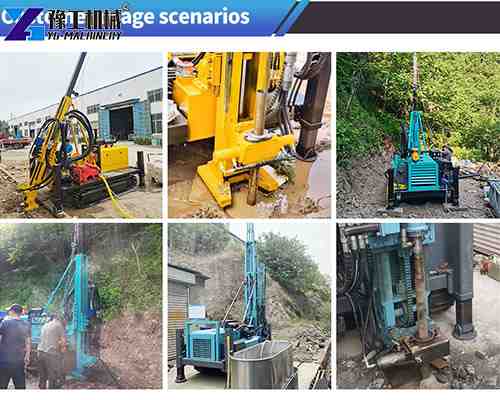

Applications of Hydraulic Core Drilling Machine

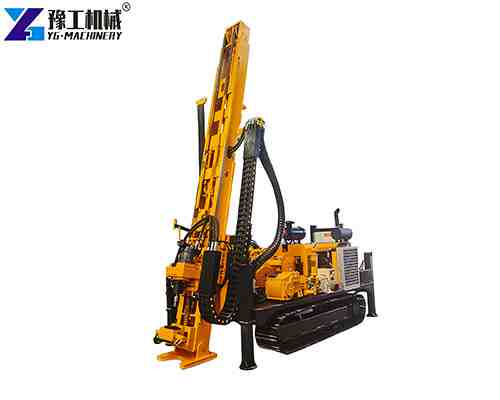

- Mining Exploration: Used for extracting mineral samples with high precision. A core drilling machine for mining ensures detailed geological analysis.
- Geotechnical Investigations: Plays a critical role in assessing soil and rock properties for construction projects.
- Water Well Drilling: Some models can be adapted for water well drilling operations.
- Oil and Gas Exploration: Hydraulic core drills are used for shallow drilling in petroleum and natural gas research.
- Infrastructure Development: Employed in tunnel ventilation, dam grouting, and foundation reinforcement projects.
In addition to hydraulic core drilling, YG Machinery also offers RC Drilling Rigs for mineral exploration. RC rigs utilize reverse circulation technology to bring rock cuttings directly to the surface, providing fast, low-contamination sampling. This complements core drilling by enabling early-stage exploration programs to identify mineralized zones efficiently and cost-effectively.

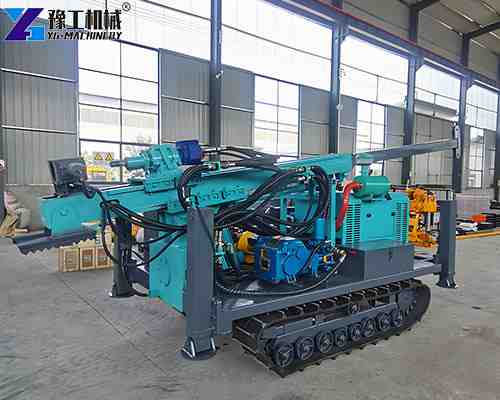

Finding the Right Core Drill Rig for Sale
Choosing the right core drill rig for sale involves evaluating factors such as drilling depth, terrain conditions, and budget constraints. YG Machinery offers a range of high-performance models that cater to different drilling needs, ensuring maximum efficiency and reliability.
Customer Case: Hydraulic Core Drilling in Namibia
In 2025, a mining company in Namibia purchased a YGX-600 hydraulic core drilling machine for copper exploration in the Otjozondjupa region. The geological terrain was rugged, with hard rock and fractured zones, making conventional rigs inefficient. After using the YG hydraulic core rig for three months, the client reported a 25% improvement in core recovery rates and smoother drilling even in complex formations.
The company also integrated an reverse circulation drilling machine for preliminary sampling, which helped identify promising zones before detailed core drilling, reducing overall project cost and time.
Contact YG Machinery for Premium Drilling Equipment
As a leading manufacturer of hydraulic drilling machines, YG Machinery provides high-quality, cost-effective solutions for global clients. In addition to core drilling rigs, YG also supplies hydraulic borewell machine, jet grouting machine, catering to various industrial applications. For expert consultation and product inquiries, contact YG Machinery today and explore our extensive range of drilling and construction equipment!【WhatsApp/WeChat/Phone/Skype】+86 13837115193.
