A hydraulic scissor lift platform is a type of vertical lifting equipment designed for safe and stable elevation in various working environments. Its scissor-style lifting mechanism, driven by hydraulic or electric power, allows users to access elevated positions easily and securely. With compact structure, robust load capacity, and reliable performance, this equipment is ideal for tasks such as facility maintenance, equipment installation, and warehouse operations. The machine excels in versatility, being used both indoors and outdoors across a wide range of industries. Whether in construction, retail, or industrial settings, it enhances work efficiency and safety for operations at height.
Technical Specifications of Hydraulic Scissor Lift Platform
| Model | Up(m) | Load(kg) | Platform size(m) | Outline dimensions/guardrail folding(m) | Lifting motor | Weight(kg) |
| YG0608SP | 5.8 | 230 | 1.67*0.74 | 1.86*0.76*1.84 | 24v/3.3kw | 1580 |
| YG0608 | 6 | 450 | 2.27*1.12 | 2.48*1.19*1.66 | 24v/3.3kw | 2170 |
| YG0810NP | 8 | 230 | 2.27*0.81 | 2.48*0.83*1.99 | 24v/3.3kw | 2260 |
| YG0810 | 8 | 450 | 2.27*1.12 | 2.48*1.19*1.78 | 24v/3.3kw | 2360 |
| YG1012 | 10 | 320 | 2.27*1.12 | 2.48*1.19*1.91 | 24v/3.3kw | 2640 |
| YG1214 | 11.8 | 320 | 2.27*1.12 | 2.48*1.19*2.03 | 24v/4.5kw | 2980 |
| YG1416 | 13.7 | 230 | 2.64*1.12 | 2.85*1.25*2.105 | 24v/4.5kw | 3600 |
Working Principle of the Lift
The lifting process is powered by hydraulic cylinders that expand and contract to raise or lower the scissor arms. When the control switch is activated, hydraulic fluid flows into the cylinder, pushing the lift upward. A smooth, uniform descent is achieved through controlled fluid release, ensuring both safety and precision during operation.
Benefits of the Hydraulic Scissor Lift Platform
- Stable Lifting Performance: Maintains steady elevation, even with heavy loads.
- Enhanced Safety Features: Includes overload protection, anti-pinch settings, and emergency stop buttons.
- Ease of Operation: User-friendly controls simplify training and reduce risk.
- Adaptability: Works well across different terrains and can be customized with optional features.

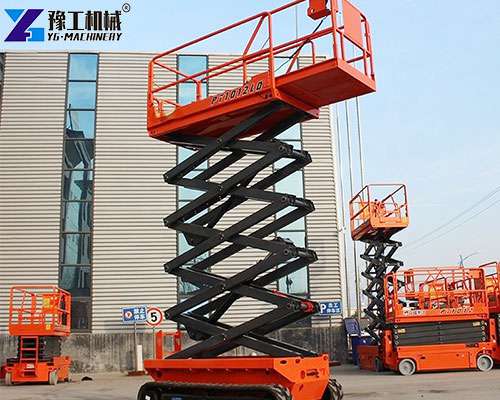

- Quiet and Clean Operation: Ideal for indoor use due to low noise and zero emissions, especially when equipped with an electric hydraulic scissor lift system.

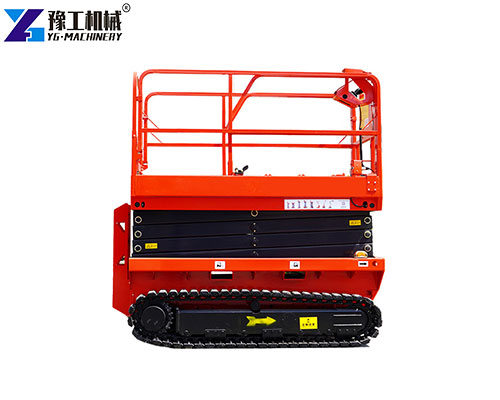

The mobile hydraulic lift platform variant offers flexibility in confined spaces, while portable boom lifts provide additional horizontal outreach for hard-to-reach areas.
Applications Across Various Industries
- Industrial Facilities: Assists with machinery maintenance, lighting installation, and warehouse operations.
- Retail and Logistics: Provides access to high shelves in department stores and distribution centers.
- Construction Sites: Enhances safety during roofing, cladding, or painting tasks.
- Public Institutions: Used in hospitals, schools, and government buildings for maintenance and repair work.
Why Choose YG Machinery?
As a professional manufacturer, YG Machinery specializes in designing and producing high-quality hydraulic scissor lift platforms. We design and build our machines with precision, safety, and durability to meet the evolving needs of customers around the world. In addition to lift platforms, YG also offers a wide range of construction and industrial equipment, such as: mini concrete pumps, fog cannon dust suppressors, polyurethane spray machine, sandblasting equipment, mini excavators, auto brick making machines. Contact us now for a free quote!【WhatsApp/WeChat/Phone/Skype】: +86 13837115193.
