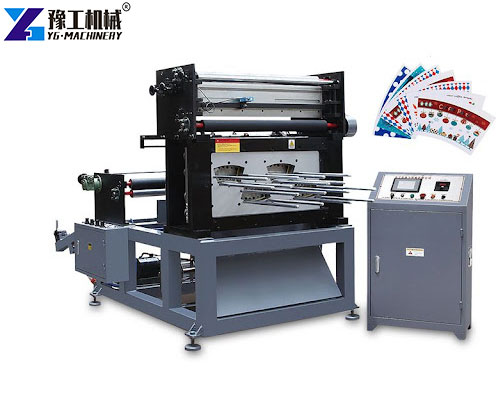

Paper cup die cutting machine is an indispensable and important equipment in the production line of paper cups, which is specialized in cutting large sheets of cardboard into paper cups precisely. The equipment is easy to operate, high efficiency, good cutting accuracy, widely used in paper cups, paper bowls and other disposable paper products in the manufacturing process. It is especially suitable for catering, packaging, daily chemical and other industries, meeting the strict requirements for the shape and size consistency of paper cups and product quality.

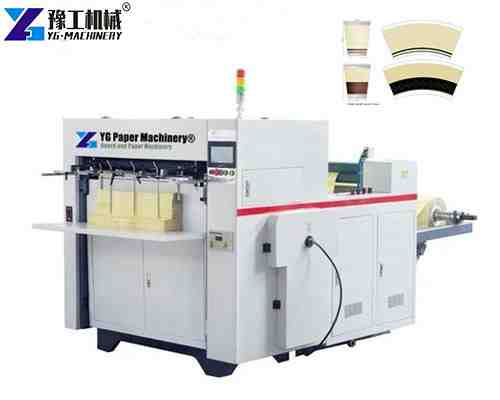

YG Paper Cup Die Cutting Machine Parameters
| Model | YG850 | YG950 |
| Die-cutting area size | 850*280 mm | 950*550 mm |
| Die cutting rate | 100-180 times/min | 100-160 times/min |
| Accuracy error | ±0.15mm | ±0.15mm |
| Rated die-cutting pressure | 100T | 250T |
| Suitable for the base paperweight | 135-400gsm | 120-600gsm |
| Suitable for base paper width | 250-860mm | 250-960mm |
| Roll paper diameter | ≤1400mm | ≤1400mm |
| Roll paper reel specifications | 3“/6“/12“ | 3“/6“/12“ |
| Rated die-cutting air pressure | 0.5Mpa | 0.7Mpa, 1.5m³/min |
| Power supply | 5.5kw, 380v, 3 P, 50Hz | 11kw, 380v, 3 P, 50Hz |
| Dimension | 2500*1700*1750mm | 4000*2100*1850mm |
| Machine weight | 3500kg | 7000kg |
| Noise | ≤100db | ≤120db |
It is worth noting that the YG paper cup cutting machine meets the needs of high-speed production while paying particular attention to operational safety and stability. During operation, the machine is equipped with multiple safety protection devices to effectively avoid mechanical damage and personal injury caused by misuse or abnormal raw materials.
Working Principle

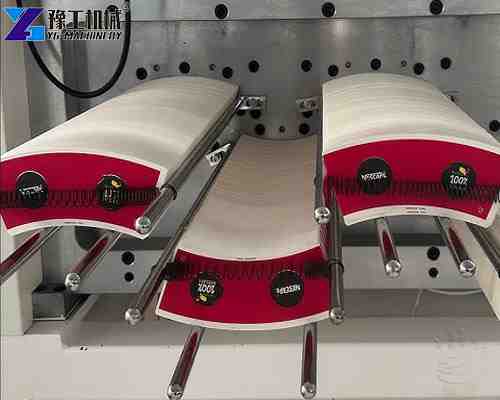

The core principle of paper cup cutting machine is “pressure + die” molding: the feeding mechanism conveys the rolls of paper to the cutting area, and then the high-precision die cuts the paper cups under the set pressure to get the paper cups of standard shapes and sizes. YG’s machine is fully servo-driven, which automatically adjusts the feeding and die-cutting position, effectively avoiding problems such as paper deviation and recutting, and improving the qualified rate of finished products.
Application in Paper Cup Production
In the complete paper cup production process, paper cup paper cutting machine undertakes the first step of paper cup prototype processing. Its cutting effect directly determines the smoothness of the subsequent molding, heat sealing, crimping, packaging, etc. YG paper cup paper cutting machine (paper cup paper cutting machine) with the printing, molding and other equipment used to achieve efficient continuous production from the raw paper to the finished paper cup, especially suitable for medium and large-scale production enterprises and export-oriented manufacturers.

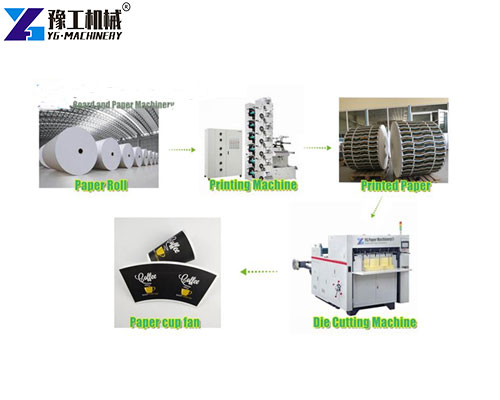

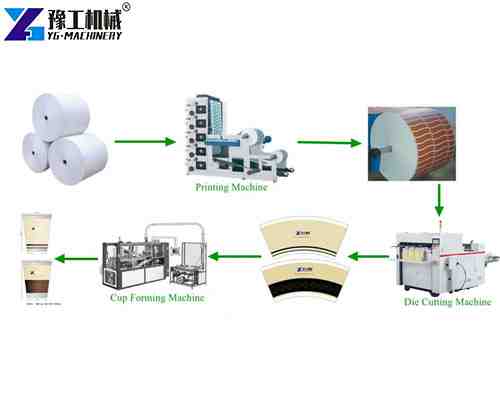

The Whole Production Line of Paper Cup Machine
The complete paper cup production line usually includes the following main links:
- printing (flexo or offset printing);
- die-cutting (paper cup paper cutting machine);
- Molding (paper cup forming machine);
- Heat sealing, crimping, bottom sealing;
- Inspection, packaging.
Among them, the die-cutting stage is critical to the consistency of the size – any deviation will lead to the subsequent process stagnation, finished product scrap rate increases. Therefore, the selection of high-precision and high-stability YG paper cup die-cutting machine not only guarantees the product quality, but also is an important means to reduce the comprehensive manufacturing cost.

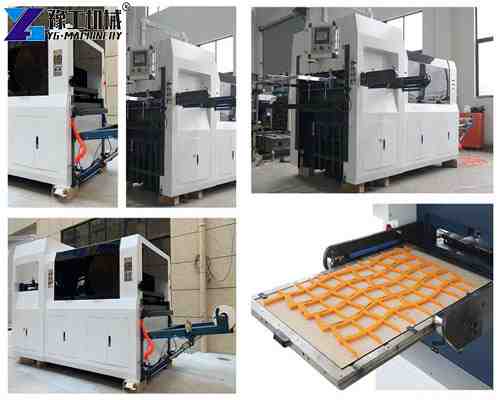

Advantages of YG Paper Cup Die-Cutting Machine
Based on years of manufacturing and exporting experience, YG paper cup die-cutting machine shows the following features:
- Compact structure, small footprint, suitable for small and medium-sized plant layout;
- Stable operation, easy maintenance and long service life of the whole machine;
- Cutting speed and precision reach international advanced level and meet export standards;
- The equipment supports customization and is compatible with different paper weights and shaped molds.
At the same time, YG provides perfect after-sales service and operation training to help customers get started quickly and reduce the cost of production trial and error.
YG Machinery-A Trustworthy Supplier
In summary, paper cup die cutting machine, as the key equipment for paper cup production, plays a decisive role in product quality and production efficiency. Choosing YG Machinery’s paper cup cutting machine can help you to improve your cup making process and win the competitive advantage in the market. In addition, we also produce the following products: paper cup forming machine, paper bowl forming machine, automatic paper plate machine, paper lunch box forming machine, etc. For more information about paper cup forming machine, please feel free to contact us. WhatsApp/WeChat/Phone/Skype】+86 13837115193.
