In small construction projects, the contradiction between construction efficiency and equipment flexibility has existed for a long time. The portable mini concrete pump introduced by YG completely subverts the traditional construction method, and has become a popular choice in the construction of secondary cities, towns and new countryside with its advantages of small size, flexibility and strong performance.
Portable Mini Concrete Pump Parameter
YG’s portable concrete pump adopts the latest technical standards in the industry in 2023, and its core parameters are as follows:
- Transportation capacity: theoretical transportation capacity of 40m³/h h.
- Discharge pressure: 10MPa, ensuring vertical and long-distance pumping effect.
- Main drive mode: 22kW motor or 66kW diesel engine can be selected.
- Transportation distance: the vertical height can reach 120 meters, and the horizontal distance exceeds 300 meters.
- Hydraulic system: Double-pump and double-circuit design, smooth reversing, and protect the life of system components.
The combination of advanced hydraulic system design and suction filtration technology can effectively reduce the failure rate and improve the reliability and stability of hydraulic concrete pump.
Types and Characteristics: Dual Driving Forces Meet Various Working Conditions
YG’s portable mini concrete pump covers two categories: electric and diesel:
- Electric Type: suitable for urban projects with perfect municipal power distribution, with low energy consumption, low noise and excellent environmental protection.

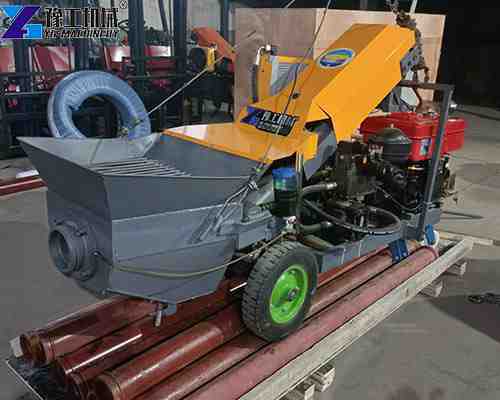

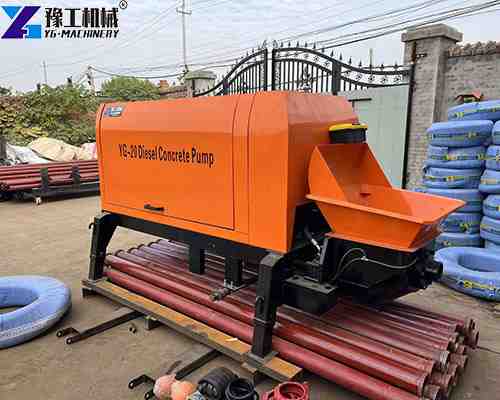

- Diesel Type: suitable for non-electricity or field construction sites, with strong power, strong autonomy and more freedom of construction.
Both models adopt wear-resistant conveying cylinder and S-tube reversing device, which are compact in structure and easy to maintain. The size of the whole machine is optimized, and a single person can drag or transition, which truly realizes the possibility of supporting the operation of batching plant portable.
Operation Method and Safety Maintenance Guide
Easy to use is a big advantage of this small concrete pump truck, but the operation safety must strictly follow the standards:
- Before starting the machine, the hydraulic gauge and lubrication system must be checked to ensure that the pump body is unimpeded.
- Concrete transportation must be continuous, and intermittent feeding needs to slow down the pump speed and reverse the mixing.
- 10m horizontal buffer pipe shall be reserved for vertical pumping to prevent concrete from impacting the pipeline.
- Change the tank washing water every 2 hours, and the lubrication system manually pulls the lubrication pump 10 times per hour.
- After pumping, clean the system with clean water or compressed air to prevent the residual material from hardening and blocking.
- Users are advised to regularly check the wear of piston sealing ring, guide ring and cylinder inner wall to avoid internal leakage or efficiency decline during operation.

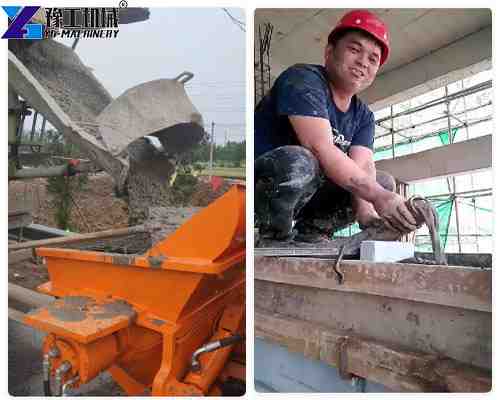

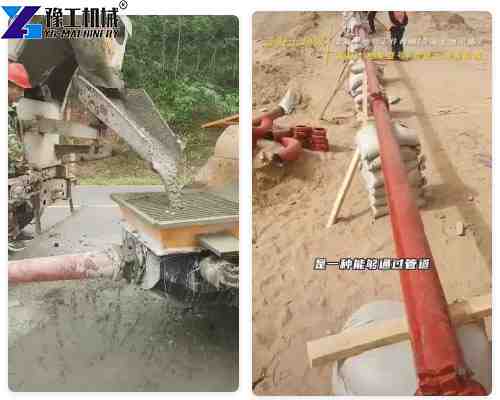

Application Scenario
YG portable small concrete pump has a wide range of adaptation scenarios:
- Township houses, high-rise buildings and floor heating filling.
- Rural roads, canal slope protection, ecological greening.
- Tunnel, underground concrete transportation, old city reconstruction.
Used with portable concrete pump for sale in mobile construction units to improve the turnover rate. Its flexible structure and high cost performance make it still hot in the market with economic downturn or large-scale projects suspended.
Portable Concrete Pump for Sale in YG machinery
As a domestic professional engineering equipment manufacturer, YG Machinery always insists on the two-way improvement of technological innovation and product reliability. Our portable mini concrete pump has been exported to more than 20 countries and is widely trusted by users. In addition to concrete pump, you can also purchase the following high matching equipment: mini mobile concrete batching plant, small mobile concrete batch plant, mobile crusher machine, mini concrete pump, etc. Contact us for customized solutions and real-time quotations. 【WhatsApp/WeChat/Phone/Skype】+86 13837115193.
