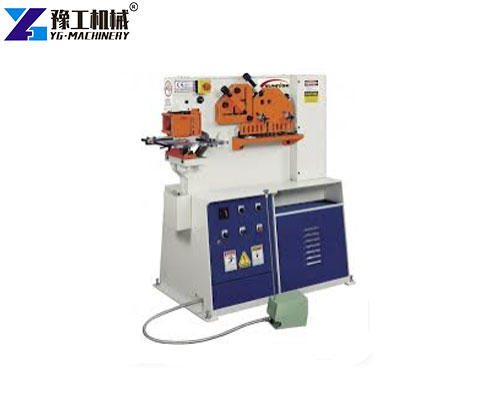

A punch and shear machine is an all-in-one steel processing solution designed for precision and performance. It combines multiple operations—punching, shearing, angle cutting, and more—into a single efficient unit. Industries such as steel structure fabrication, tower manufacturing, metal processing, and civil infrastructure projects widely use this equipment for its high productivity, compact design, and versatility. Whether working with plates, angles, or other profiles, this multifunctional system improves efficiency and saves space and labor.
Q35Y Series Punch and Shear Parameters
| Model | Q35Y-15 | Q35Y-16 | Q35Y-20 | Q35Y-25 | Q35Y-30 | Q35Y-40 | Q35Y-50 | Q35-16 |
| Punching pressure(kN) | 45 | 70 | 90 | 120 | 140 | 200 | 250 | 63 |
| Max. shearing thickness(mm) | 8 | 16 | 20 | 25 | 30 | 40 | 40 | 16 |
| Strength of steel plates(n/m㎡) | ≤450 | ≤450 | ≤450 | ≤450 | ≤450 | ≤450 | ≤450 | ≤450 |
| The angle of shearing(deg) | 7° | 7° | 8° | 8° | 8° | 8° | 8° | 13° |
| Shearing sizes of one stroke(w*h)(mm) | 200*15300*12 | 16*2508*400 | 20*33010*480 | 25*33016*600 | 30*35520*600 | 35*40025*700 | 40*40030*700 | 16*120 |
| Ram stroke(mm) | 60 | 80 | 80 | 80 | 80 | 100 | 100 | 26 |
| Number of strokes (times/min) | 10 | 12 | 16 | 16 | 12 | 10-20 | 10-20 | 36 |
| Depth of throat(mm) | 200 | 300 | 355 | 400 | 600 | 560 | 560 | 450 |
| Punching thickness(mm) | 15 | 16 | 20 | 25 | 26 | 35 | 35 | 16 |
| Max. Diameter of punching(mm) | 24 | 25 | 30 | 35 | 38 | 40 | 45 | 28 |
| Main motor power(kW) | 3 | 4 | 5.5 | 7.5 | 11 | 15 | 18.5 | 4 |
| Dimensions of machine(L*W*H)(mm) | 1450*590*1620 | 1650*760*1780 | 1850*800*1930 | 2350*960*2100 | 2620*980*2380 | 2800*1250*2400 | 3000*1400*2400 | 1950*800*1950 |
| Machine weight(kg) | 1200 | 1600 | 2300 | 4200 | 6200 | 8600 | 11600 | 2800 |
Advantages of the Punching and Shearing Machine
1.Hydraulic Operation: Ensures stability, precision, and smooth power transmission.
2.Space-Saving Design: Integrates several functions in one footprint, reducing clutter.
3.Dual Workstations: Two users can operate the machine simultaneously, doubling output.
4.Wide Compatibility: Handles various shapes and materials without tool changes.
5.Optional CNC Upgrade: Automation-ready features for better control and efficiency.
Its frame structure is heat-treated and strengthened for long-lasting durability. The blades undergo special vacuum treatment for extended service life and cleaner cuts.
Applications of the Shear and Punch Machine
Due to its versatility and high-efficiency output, the machine is ideal for:
1.Steel structure workshops
2.Power transmission tower factories
3.Elevator and ventilation system production
4.Road and lighting infrastructure
5.Storage rack and advertisement sign fabrication
From routine metal punching to large-section shearing, it is tailored for heavy-duty use and consistent output in industrial settings.
Why Choose YG as Your Machinery Partner?
As a professional manufacturing factory, YG Machinery delivers reliable and affordable punching and shearing solutions to clients worldwide. Each unit is thoroughly tested and comes with dedicated technical support and spare parts supply.
In addition to the punch and shear machine, YG also provides other high-performance machinery for metalworking, including:
Rebar bending machines,Steel bar cutting machines,Pipe shrinking machines,Beam bending machines,Stirrup bending machines,etc.
These tools can complement your punch shear machine and streamline your full production line. Internal links to these product pages can help you explore them in detail.
