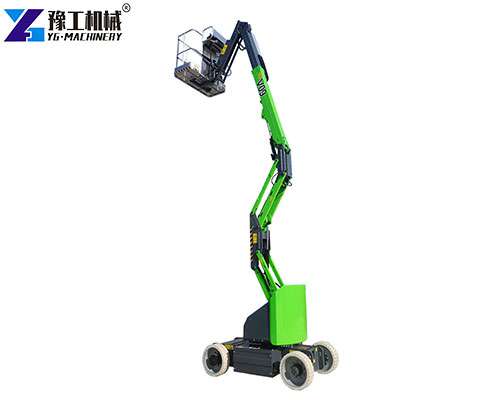

A small articulating boom lift is a type of aerial lift that features an articulated (jointed) arm capable of reaching over obstacles and providing access to hard-to-reach areas. These lifts are typically self-propelled, compact. Whether you’re working in tight spaces or need the ability to navigate obstacles, articulating scissor lifts provide an effective solution for lifting workers and equipment to the necessary height. As one of the most versatile tools in the aerial work platform category, is a safer and more efficient alternative to traditional ladders and scaffolding.
These lifts are available in electric or diesel-powered versions, they find applications across a broad range of sectors,including municipal services, maintenance, construction, and more.
Small Articulating Boom Lifts Parameters
| maximum working height | 12m | |
| Maximum platform height | 10m | |
| maximum horizontal extension | 5.8m | |
| Maximum span height | 4.78m | |
| Maximum carrying capacity | 200kg | |
| Gradeability | 25% | |
| Minimum turning radius | 2.16m | |
| Running speed (km/h) | decline | 3km/h |
| rising | 0.8km/h | |
| Closing length | 4.35m | |
| Car closing width | 1.5m | |
| closing height | 1.99m | |
| Platform size (length × width × height) | 1.1m×0.65×1.13m | |
| turntable rotation | 355° | |
| Platform rotation | 120° | |
| Ground clearance | 0.15m | |
| Drive wheel size | 0.59*0.19/0.66*0.17m | |
| gross weight | 4700kg | |
| control voltage | 24V | |
| Battery | 48/320 V/Ah | |
| charger | 48/40 V/A | |
| Hydraulic tank volume | 40 L | |
| Wheelbase | 1.65m | |
Advantages of Electric Articulating Boom Lift
- High Flexibility and Reach
The jointed arms allow workers to reach over obstacles and into narrow or otherwise inaccessible spaces. The lift’s ability to extend and maneuver vertically and horizontally provides access to hard-to-reach areas that are difficult to manage with traditional lifts or scaffolding. - Compact and Easy to Transport
Compact design, making it easy to transport between job sites. smaller size allows them to fit through narrow doorways, aisles, or gates, making them a great choice for crowded or confined spaces. - Safety Features
equipped with multiple safety features such as overload protection, automatic braking systems, and hydraulic locks. The primary operating components are located at the base, reducing the risk of falling from height. - Electric and Diesel Options
Depending on the environment, you can choose between an electric articulating boom lift for quieter, emission-free operations indoors or a diesel boom lift for rugged outdoor applications. Electric models are great for indoor environments such as warehouses or factories, while diesel models offer more power and can handle rougher outdoor terrain. - Simple Operation
User-friendly design. The intuitive controls make them easy to operate, even for workers with minimal training. This simplicity enhances productivity and reduces the likelihood of errors in operation.
Usage Scenarios of The Lift
- Municipal and Electric Power Maintenance
Ideal for municipal maintenance work, such as repairing streetlights or inspecting high-voltage power lines. Their ability to navigate tight spaces and reach high altitudes safely makes them an essential tool for utility companies. - Advertising and Communication
Installing and maintaining billboards, antennas, or communication towers often requires a lift that can access hard-to-reach areas. The articulating scissor lift provides a stable platform for workers to complete tasks safely and efficiently. - Construction and Facility Maintenance
In construction, these lifts are used to access high areas for tasks like installing windows, painting, or performing structural inspections. Their ability to traverse obstacles makes them perfect for use in complex or busy construction sites. - Gardening and Landscaping

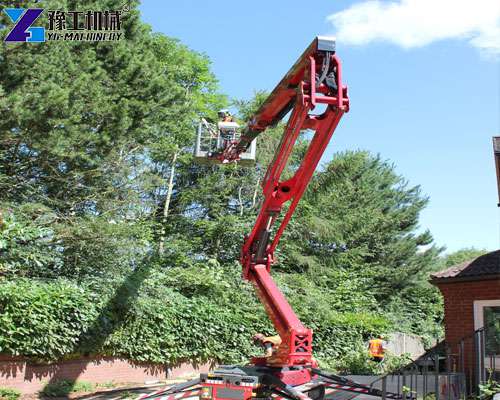

When working on large landscaping projects, articulating scissor lifts allow workers to reach tall trees or high hedges, as well as to install overhead lighting and other structures. - Warehouses and Indoor Worksites

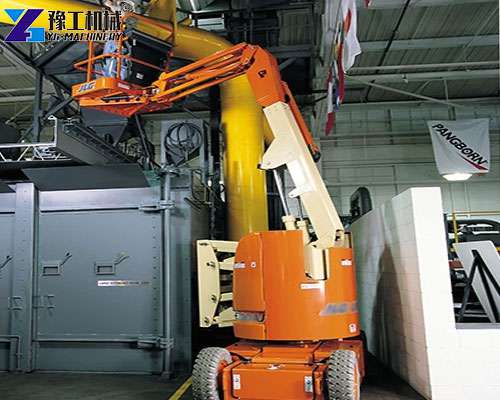

Electric articulating boom lifts are often used inside warehouses for shelving, cleaning, or maintenance tasks. Their ability to maneuver in tight aisles makes them ideal for warehouses that require frequent high-altitude operations.
Customer Cases and Testimonials
YG Machinery has helped numerous businesses enhance their operational efficiency with articulating scissor lifts.
- Customers have praised the lifts for their easy maneuverability and ability to handle a wide variety of tasks. For instance, a client in the construction industry used our electric articulating boom lift for several projects, including façade installations and indoor ceiling repairs. They reported that the compact size and flexibility of the lift allowed their team to save significant time and effort, especially in tight spaces.
- Another client in the municipal services sector used our diesel boom lift for routine streetlight maintenance and reported increased safety and productivity. They appreciated the robust construction of the lift, which allowed them to safely operate in tough outdoor conditions.
What is the difference between an electric and a diesel articulating boom lift?
Electric articulating boom lifts are ideal for indoor use and have no emissions, making them environmentally friendly. Diesel articulating boom lifts, on the other hand, are better suited for outdoor use and can handle rougher terrains.

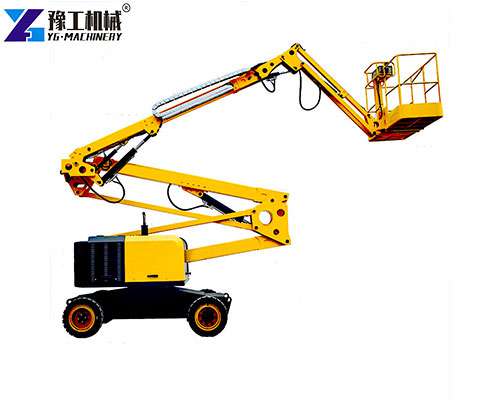

Articulated Boom Lift for Sale in YG Machinery

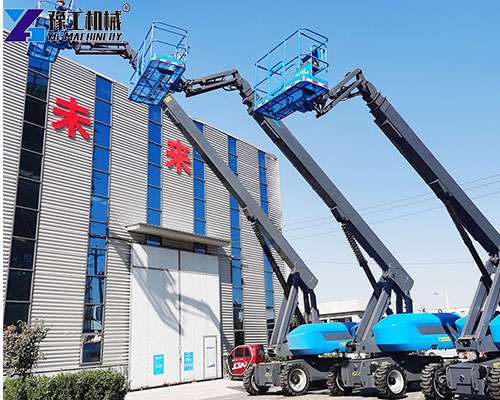

YG Machinery is a professional manufacturer of small articulating boom lifts, lifts. Whether you’re in construction, municipal services, or any other industry requiring high-altitude access, our lifts offer high-quality, durable, and flexible aerial work platforms. We provide both electric and diesel models to meet the unique needs of your business. In addition, we also have telescopic telehandlers, mini spider cranes, hydraulic scissor lift platforms, electric forklifts, small backhoe loaders, etc. Contact us for more machine details! 【WhatsApp/WeChat/Phone/Skype】+86 13837115193.
