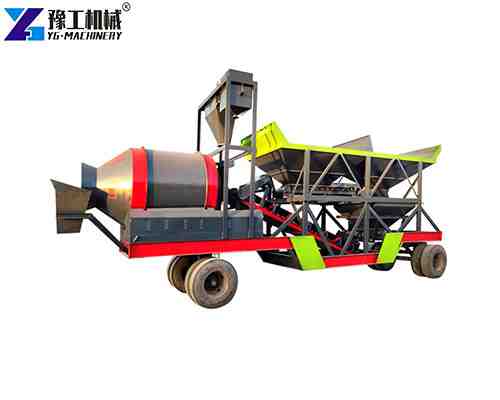

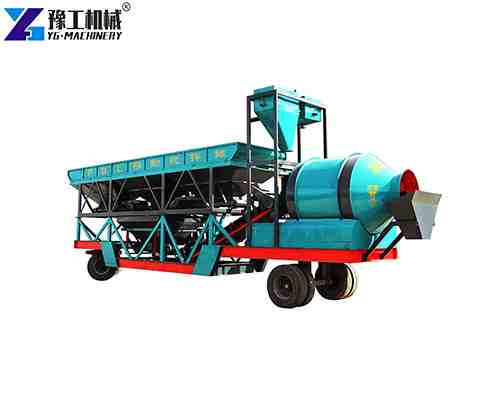

With the rapid growth in the number of small-scale and temporary construction projects, the small concrete batch plant is becoming an important choice for construction companies to reduce costs and operate flexibly. It is characterized by compact structure, quick turnaround, easy operation, etc. It is widely used in small concrete batch projects such as rural highway, town construction, bridge repair, and so on.
Small Concrete Batch Plant Parameters
| Parameters | YGCM50 | YGCM75 | YGCM120 |
| Stirring power | 2x11KW | 2x15KW | 2×18.5KW |
| Maximum weighing of cement scale | 500kg | 800kg | 1200kg |
| Theoretical productivity | 50m³/h | 75m³/h | 120m³/h |
| Discharge height | 1.5m | 1.6m | 1.6m |
| Maximum weighing of aggregate scale | 3000kg | 3000kg | 4500kg |
| Mixing barrel length | 1.8×1.82m | 2.1×1.82m | 2.2×2.5m |
| Maximum water weighing | 250kg | 500kg | 700kg |
| Total power of the entire machine | 48KW | 57KW | 65KW |
| Machine overall size | 10.6×2.1×4.4m | 10.8×2.3×4.4m | 11.2×2.5×4.4m |
The whole set of equipment can be easily transported, the installation period can be controlled within 3-5 days, and the daily operation can be completed by 2 people in a single shift, which is especially suitable for projects with short construction period and limited space. Compared with the traditional stationary plant, the mini concrete batching plant is also more superior in terms of energy saving and maintenance.
Equipment Selection and Market Trends

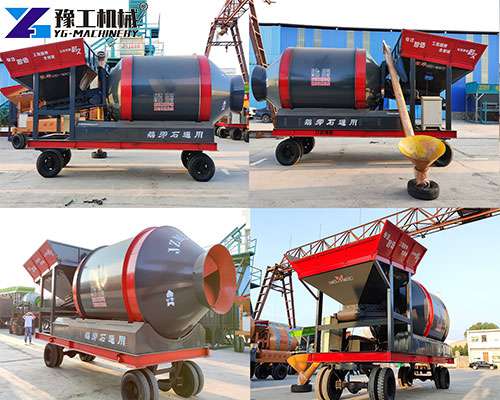

When customers choose a mini concrete batching plant, they often have to weigh up production capacity, site and budget, and YG currently offers several series of products to meet different operational needs. The mobile site is especially suitable for projects that involve construction and site transfer, such as mobile concrete plant for sale, which has a wheeled structure that allows for quick towing to a new site.
Market trends in recent years have shown a significant increase in demand for “smart + modular” equipment. Some concrete portable batch plants with their own control panels have been well received by new users, making it easier to get started quickly and minimizing human error.
Customer Cases and Experiences
In 2024, a road maintenance contractor in Thailand introduced YG’s YGCM50 mobile concrete plant for bridge reinforcement in a remote mountainous area. The plant poured an average of 50 cubic meters of concrete per day, and the customer’s feedback was that the stable operation of the equipment and the convenience of transportation greatly improved the progress of the project.
Similar feedback came from a residential developer in the Philippines, who said, “Choosing this type of small-scale mixing plant can increase the efficiency of on-site construction by nearly 30%, while the quality of concrete is more uniform.”
Maintenance and care points
Long-term efficient operation depends on good maintenance. The mixing machine needs to be cleaned and the blades checked for wear and tear every 150 hours of operation; the control system recommends checking the wiring ports weekly to prevent short circuits due to moisture. In winter, water pipes should be emptied to avoid freezing and rupture.
In addition, operators should wear protective equipment to ensure that loading, cleaning and other links in line with safety regulations, is strictly prohibited in the operation of the equipment for maintenance.
Conclusion: Choose YG to enhance the reliability of every pouring detail
As a professional concrete equipment manufacturer, YG is always committed to providing customers with stable, efficient and intelligent small-scale mixing solutions. Our equipment is sold to more than 20 countries, and our service covers pre-sales selection, customized configuration and after-sales technical support.
If you are considering to purchase a small concrete batch plant, please contact YG for more technical information and quotation. We also recommend: self loading concrete mixer for sale, mini excavator, concrete spraying machine, rebar bending machine, etc. Click to learn more and improve your project now.【WhatsApp/WeChat/Phone/Skype】+86 13837115193.
