Small Water Drilling Machine

Small water drilling machine is widely used in drinking water well drilling and agricultural irrigation scenarios due to its lightweight, low cost and flexible construction. With small size and low power consumption, these machines can generally be operated by two people and are suitable for complex terrain areas such as yards, orchards and mountains.

YG Small Well Drilling Rig Parameters

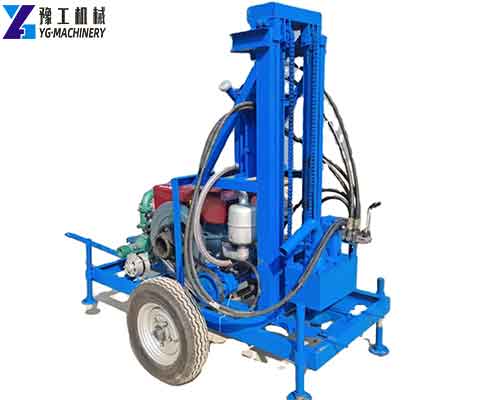

portable borehole drilling rig

Portable Borehole Drilling Rig

ModelYG-240-22P
Dimension1450*1550*1970mm
Weight200kg
Drill rod diameter42mm
Drill rod length1.5m/unit
Rod change methodFull automatic screw thread
Max drilling depth200m
Diesel engine power22HP
Drilling hole diameterWithin 280mm
Lifting height2.5m
Lifting force1000kg

Request A Quote

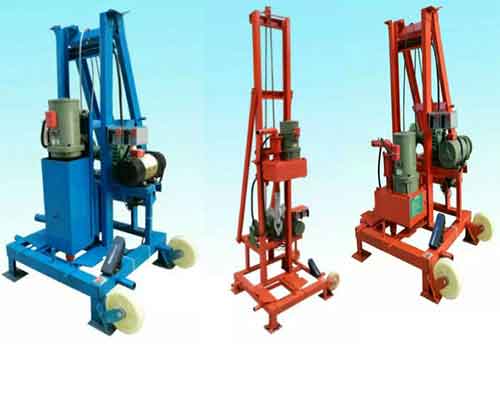

HY 180 two phase small fold water well drilling rig

HY-180 Two-Phase Small Fold Water Well Drilling Rig

ModelHY-180
Opening Hole Diameter80-200mm
Drilling Depth80m-100m
Drill Pipe Diameterφ42mm
Drill Pipe Length1.5m
Motor Power1.5kw-2kw
Pump Power2.2kw
Voltage220v
Lifting Force500kg
Size700mm*700mm*2500mm
Weight120kg

Request A Quote

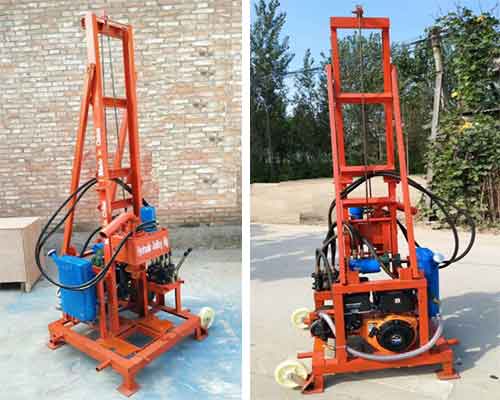

ZX 220 gasoline hydraulic small water well drilling rigs

ZX-220 Gasoline Hydraulic Small Water Well Drilling Rigs

ModelZX-220
Opening Hole Diameter0-280mm
Drilling Depth120m
Drill Pipe Diameterφ51mm
Drill Pipe Length1.5m
Motor Power4kw
Pump Power2.2kw
Voltage220v
Lifting Force800kg
Size800mm*700mm*2500mm
Weight200kg

Request A Quote

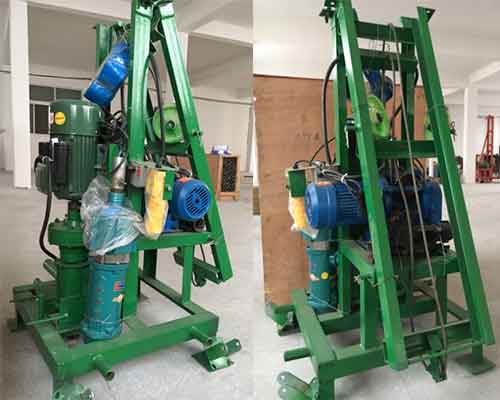

HY 240 two phase high power electric small fold water well drilling machine

HY-240 Two-Phase High Power Electric Small Fold Water Well Drilling Machine

ModelHY-240E
Opening Hole Diameter0-240mm
Drilling Depth100m
Drill Pipe Diameterφ51mm
Drill Pipe Length1.5m
Motor Power4kw
Pump Power2.2kw
Voltage220v
Lifting Force500kg
Size700mm*700mm*2500mm
Weight200kg

Request A Quote

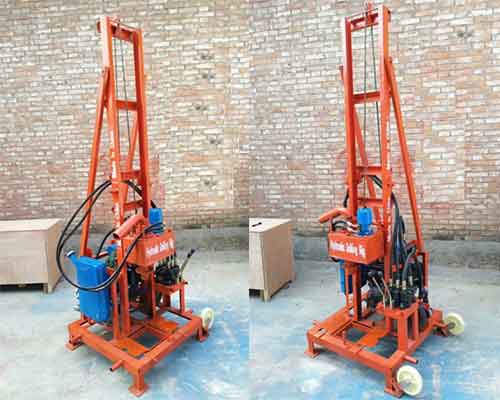

ZX 280 diesel hydraulic water drilling machine

ZX-280 Diesel Hydraulic Water Drilling Machine

ModelZX-280
Opening Hole Diameter0-280mm
Drilling Depth120m
Drill Pipe Diameterφ51mm
Drill Pipe Length1.5m
Motor Power4kw
Pump Power2.2kw
Voltage220v
Lifting Force800kg
Size800mm*700mm*2500mm
Weight200kg

Request A Quote

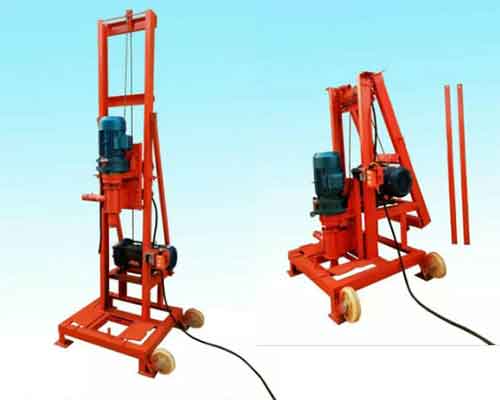

HY 350 three phase fold water well drilling rigs for sale

HY-350 Three-Phase Fold Water Well Drilling Rigs for Sale

ModelHY-350
Opening Hole Diameter350mm
Drilling Depth100m
Drill Pipe Diameterφ51mm
Drill Pipe Length1.5m
Motor Power3kw
Pump Power2.2kw
Voltage380v
Lifting Force1000kg
Size800mm*800mm*2000mm
Weight250kg

Request A Quote

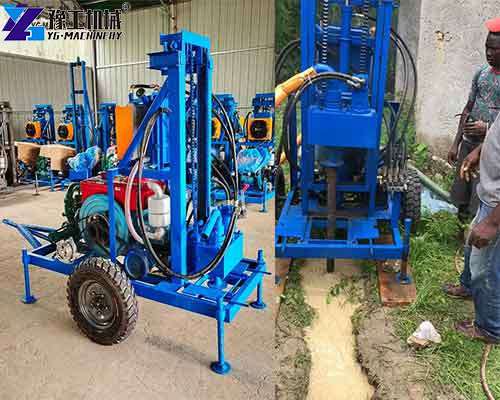

Why Choose to Buy Small Water Drilling Machine from YG?

When choosing a small water drilling machine, a reliable supplier is equally important.YG, as a professional manufacturer with more than ten years’ export experience, has the following advantages:

  1. Various types: We offer a wide range of small water well drilling machines from portable, tripod type to crawler hydraulic type, covering different geological and construction scenarios.
  2. Support customization: YG can customize the motor/diesel engine power system, drilling tool specifications and accessory combinations for different well depths, hole diameters, power supply types and other needs of customers.
  3. High quality and low price: the equipment adopts national standard steel and high-efficiency hydraulic system, which is strictly tested before leaving the factory, and the price-performance ratio is much higher than that of similar imported brands.
  4. Perfect after-sales service: Provide remote video guidance, parts replacement service and regular maintenance advice to ensure that the user can rest assured that the maintenance is worry-free.
  5. Good customer feedback: In Africa, the Middle East, South Asia and other regions, YG small drilling rigs are popular, the customer repurchase rate of more than 65%, and a number of projects to realize independent water supply.

Whether you are trying how to dig a well for water for the first time or want to expand the scale of agricultural irrigation wells, YG can provide you with technically reliable and reasonably priced well drilling solutions.

Request A Quote

Choose YG for Cost-Effective Well Drilling Solutions

YG specializes in providing high quality small water drilling machines, and has successfully provided water well equipment and technical support for more than 500 projects in Africa, Southeast Asia, South America and other regions. We not only provide equipment, but also factory testing, construction guidance and customized solutions.

YG also produces the following equipment: truck mounted drilling rig, portable borehole drilling machine, mini hydraulic drilling rig, crawler water drilling rig, etc. Inquire now to get the well drilling equipment! Discounted price and professional advice on the selection of well drilling equipment! WhatsApp/WeChat/Phone】+86 13837115193.
