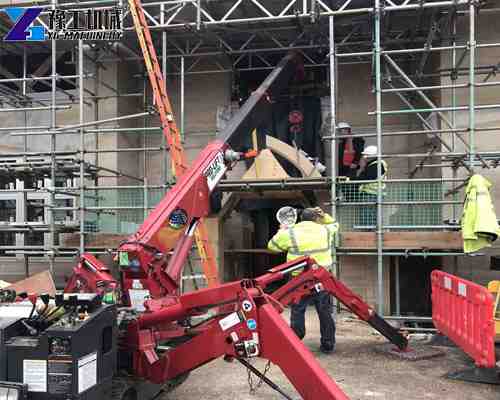

Large cranes are no longer the only choice for lifting operations in confined spaces, and YG’s spider crane for sale series is a mini mobile crane developed for a wide range of scenarios, such as urban construction, glass curtain wall installation, and high-altitude repairs, etc. With its hybrid drive, compact structure, and precise operation, it is the representative of compact mobile cranes, which are widely favored on the market today. It is a representative of compact mobile crane which is widely favored in the current market.
Compact Mobile Crane Technical highlights

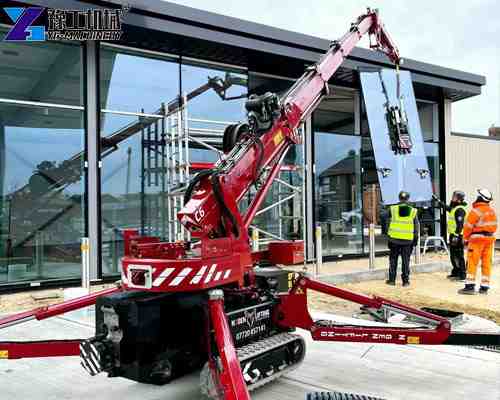

YG spider crane adopts hybrid technology, which is suitable for both urban environmental protection and flexible operation. It comes standard with 380V voltage and can be customized according to customer’s working conditions at no extra charge. In addition to conventional lifting, customers often use glass suction cups for glass curtain wall installation.
| Model | YG-3 | YG-5 | YG-8 | |
| Specification | 3t | 5t | 8t | |
| Maximum working radius | 8.83m×0.15t | 14m×0.5t | 16.5m | |
| Maximum above-ground head | 9.9m×0.7t | 16.8m | 18m | |
| Winch device | Hook Speed | 0-8m/min(4 rope) | 12m/min(4 rope) | 12m/min(4 rope) |
| Rope diameter | φ8mm×45m | Φ11mm×80m | Φ11mm×80m | |
| Telescopic system | Boom Type | 5-section boom, pentagonal structure | 5-section boom, pentagonal structure | 5-section boom, pentagonal structure |
| Boom Length/Time | 3.1 m-9.2 m/20sec | 12.3m/54sec | 12.3m/54sec | |
| Up and down | Boom Angle/Time | 0°~78°/13sec | 0°~78°/13sec | 0°~78°/13sec |
| Slew system | Slew Angle/Speed | 0-360°continuous/60sec | 0-360°continuous/38sec | 0-360°continuous/38sec |
| Traction system | Walking Way | Hydraulic motor drives | Hydraulic motor drives | Hydraulic motor drives |
| Walking Speed | 0~2.5km/h | 0~2.5km/h | 0~2.5km/h | |
| Grade Ability | (25°)36% | (25°)36% | (25°)36% | |
| Operating system | Operation type (Boom/outrigger) | Manual operation, manual walking(remote control option) | Manual operation, manual walking(remote control option) | Manual operation, manual walking(remote control option) |
| Operating characteristics | Manual operation, remote control | Manual operation, remote control | Manual operation, remote control | |
| Transport parameters | L*W*H(mm) | 2950*980*1560 | 5000*1500*1900 | 5000*1600*2180 |
| Total weight(kg) | 2700 | 6200 | 720 | |
Frequently Asked Questions
Q: Is there any model with driver’s seat?
The 5 and 8 tons spider cranes are equipped with driver’s cab as standard, which is more suitable for the long-distance mobile use in medium and large construction sites, while the models below 3 tons are stand-driver type, which is flexible in handling.
Q: Does mini spider crane for sale meet EPA and Euro 5 standards?
No. The Yanmar engines we use meet international environmental standards and are suitable for use in demanding markets such as Europe and the Middle East.
Q: What are the limitations of customized crane weight range?
The minimum support is 1.5 tons, for lower tonnage requirements, please consult YG.. Maximum support is 15 tons or more, but customers are required to provide specific boom length and operational requirements.
Operation and Maintenance Recommendations
- Be sure to have a professional operator on duty for the first time, check the outriggers and boom locking device in advance.
- Regularly change the hydraulic oil and check the boom cable every 600 hours.
- Avoid lifting heavy objects in areas with wind speed exceeding grade 8 and uneven ground.
- Please keep the electronic control part dry, and the charging area should be independently protected.
Although these daily maintenance is simple, it will greatly improve the service life and safety of the equipment.
Mini Spider Crane for Sale in YG
As the industry’s leading construction machinery manufacturer, YG has always insisted on research and development of cost-effective spider crane for sale solutions, service customers throughout North America, the Middle East, Southeast Asia and other countries. We provide fast delivery (3 tons in stock, other models shipped within 5-7 days) and perfect after-sales support system.
Recommended products: mini spider crane for sale, crawler boom lift, mobile hydraulic lift platform, etc. Contact us now to start a new experience of efficient lifting! 【WhatsApp/WeChat/Phone/Skype】+86 13837115193.
