Anchor drilling rig is widely used in hydropower station, railroad, highway slope reinforcement, landslide management and other projects, especially for high slope rock anchoring projects.
YG Machinery has launched a variety of high-efficiency and reliable anchor drilling rigs, including crawler high lifting anchor drilling equipment and high-efficiency anchor drilling equipment, which are highly trusted by customers.
Parameter Comparison of Three Main Anchor Drilling Rigs

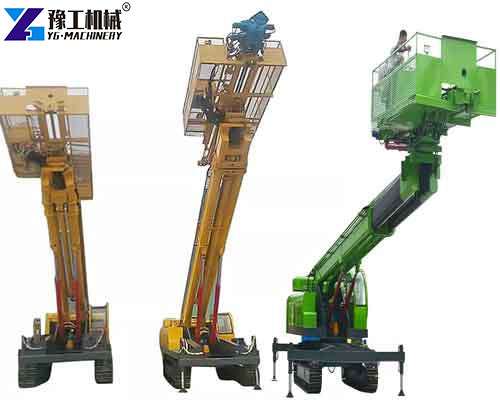

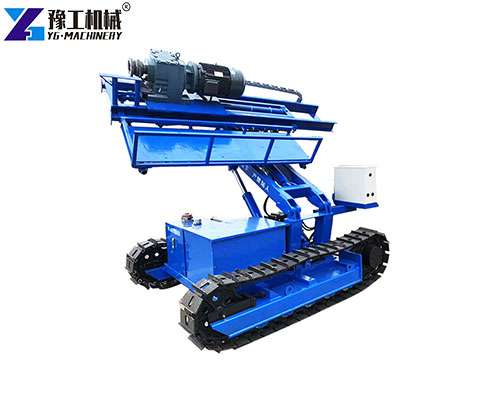

High Lifting Anchor Drilling Equipment Parameters
| Model | 6M | 15M | 30M |
| Track(mm) | 2300*3500 | 2300*4000 | 5000*3000mm |
| Width of crawler(mm) | 400 | 400 | 600 |
| Main arm | Double boom two sections | Double boom two sections | Double boom four sections |
| Drilling angle | Drillable flat hole/drillable inclined hole/drillable vertical hole | ||
| Drilling diameter | 5-300mm | 5-300mm | 5-300mm |
| Depth | 0-70m | 0-70m | 0-70m |

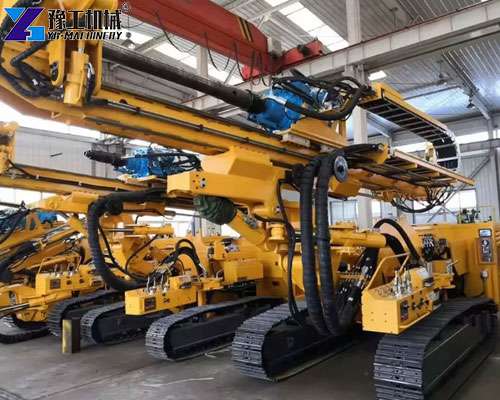

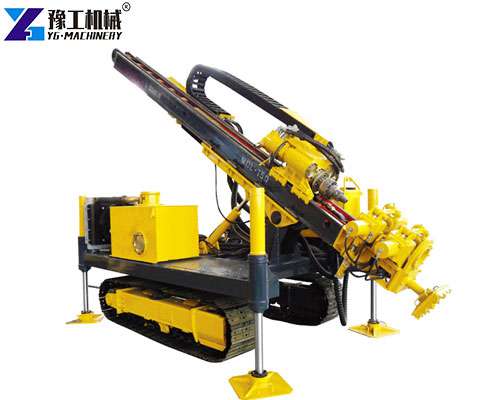

High-efficiency Anchor Drilling Rig Parameter
| Machine Parameters | |||
| Weight | 6T | Drilling diameter | 150-250mm |
| Drilling depth | 130-170m | Drill pipe diameter | 73,89,102,114mm |
| Shipping size | 5400*2100*2000mm | Vertical working size | 3600*2500*5600mm |
| Power Configuration | |||
| Electric motor | Power 55kw+18.5kw | ||
| Powerhead | |||
| Rated output torque | 7500Nm | ||
| Rated speed | 10,20,30,35,40,60,65,70,85,130,170rpm | ||
| Propeller | |||
| Boost speed | 0-5 Adjustable,7,23,30m/min | Feed speed | 0-10 Adjustable,14,46,59m/min |
| Rated lifting force | 70kN | Rated feed force | 36kN |
| Feed process | 3400mm | Slip process | 900mm |
| Drilling rig angle | |||
| Drilling angle | 0-90° | Climbing angle | 25° |

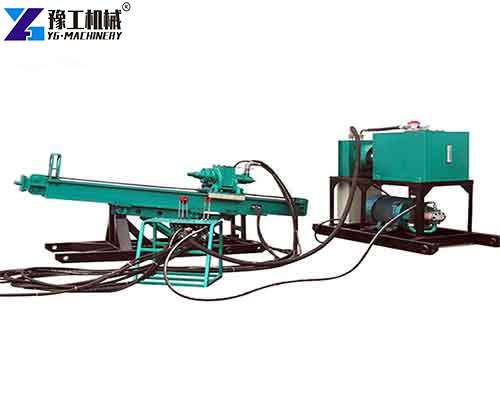

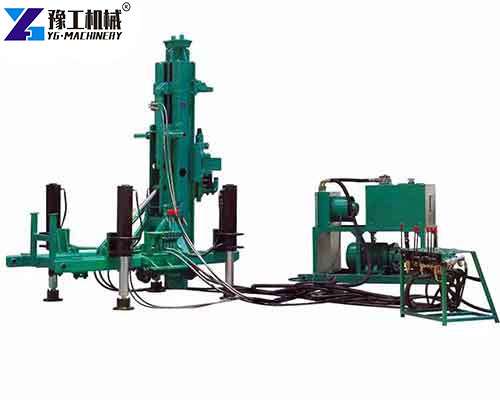

Split Anchor Drilling Rig Technical Parameter
| Model | YGMG40 | YGMG50 | YGMG70 |
| Hole depth(m) | 10-60 | 25-70 | 35-80 |
| Hole diameter(mm) | 90-180 | 90-165 | 90-200 |
| Rod spec(mm) | Φ76*1500 | Φ76*1500/ Φ89*1500 | Φ76*1500/ Φ89*1500 |
| Hole angle | 0-90° | 0-90° | 0-90° |
| Output rotary speed(rpm) | 90 | 70 | 70 |
| Rated output torque(N*m) | 2400 | 2500 | 3900 |
| Powerhead max stroke(mm) | 1800 | 1800 | 1800 |
| Max lifting force(KN) | 25 | 30 | 35 |
| Powerhead max feeding force(KN) | 20 | 25 | 25 |
| Hydraulic system-rated pressure(Mpa) | 16 | 17-18 | 17-18 |
| Rotary electric power | 4-pole/7.5kw | Hydraulic | Hydraulic |
| Oil pump electric power(kW) | 4 | 22 | 22 |
| Electric voltage | 380v | 380v | 380v |
| Weight(kg) | 1000 | 1260 | 1460 |
| Hydraulic station dimension(mm) | 640*600*580 | 1850*780*1360 | 1850*810*1280 |
| Dimension(mm) | 2800*800*1400 | 3000*780*1360 | 3100*1000*1500 |
Advantages of Each Model
High Lifting Anchor Drilling Equipment:
- Equipped with multi-adjustable boom, suitable for high level operation;
- Suitable for mountainous areas, high slopes, and large angle drilling construction;
- Optional crawler chassis, which makes it flexible to move.
Crawler High Lifting Anchor Drilling Equipment
- Crawler walking system, easy to cope with complex terrain;
- Double-arm structure, flexible adjustment of drilling angle;
- Maximum drilling diameter up to 300mm, strong versatility.
High-efficiency Anchor Drilling Rig
- adopts high-torque electric power head, with adjustable rotational speeds;
- Strong propulsion system, lifting/propelling speed up to 59m/min;
- One-piece structure design, energy-saving and efficient.
Wide Range of Applications
- Hydropower station slope reinforcement, tunnel anchoring holes, deep foundation pit support.
- Highway and railroad high slope dangerous rock anchoring.
- Foundation grouting, anchor construction, high-pressure rotary piling holes.
- It can be used with DTH hammer, casing drill, auger and other ways of construction.
Advantages of YG Anchor Drilling Rig
- Compact structure, low energy consumption, fast drilling speed.
- Multi-angle drilling support (0-90°), adapting to different geological conditions.
- Adopting high-performance hydraulic system, high stability and easy maintenance.
- Long service life of key components, suitable for long-term high-intensity operation.
Customer Feedback and Global Exports
YG Anchor Drilling Rig products have been successfully exported to Pakistan, Philippines, Vietnam, Peru, Chile, India, the United States and other countries, and are widely praised. Customers feedback that the construction efficiency is high, the operation is simple, and they are willing to continue to repurchase to expand the scale of the project.
Anchor Drilling Rig Price in YG Machinery
If you are looking for cost-effective anchor drilling rig or want to know anchor drilling rig price welcome to contact us for details and quotation. [WhatsApp/WeChat/Phone]: +86 13837115193.
YG also produces the following related products: core drill rigs, hydraulic drilling rigs, small water well drilling rigs, crawler DTH drilling rigs, rotary drilling rigs, portable air compressors and so on.
