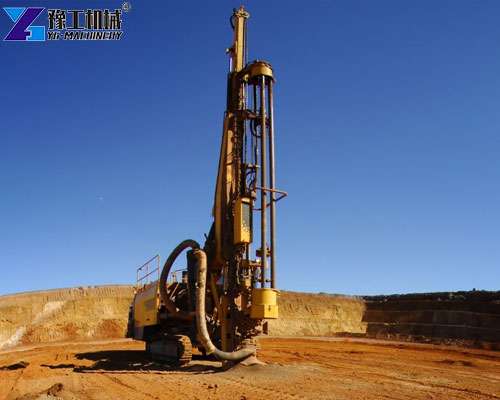

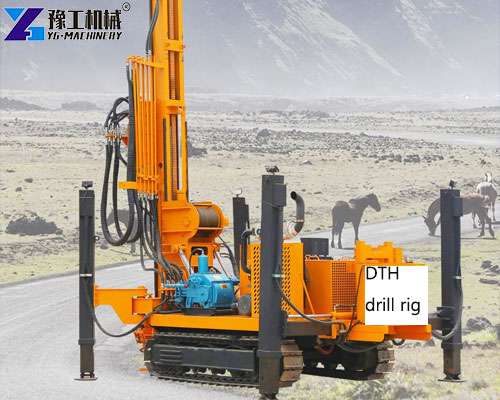

Down the Hole Drilling Machine

The YGS series down the hole drilling machine are heavy-duty crawler drilling rigs developed by YG Machinery for high-intensity geological environments, which are suitable for hard rock, water wells, blast holes, anchor holes, geothermal holes and other working conditions, and have excellent power performance, machine stability and operational adaptability. They are tailor-made drilling tools for medium and large engineering projects.

Request A Quote

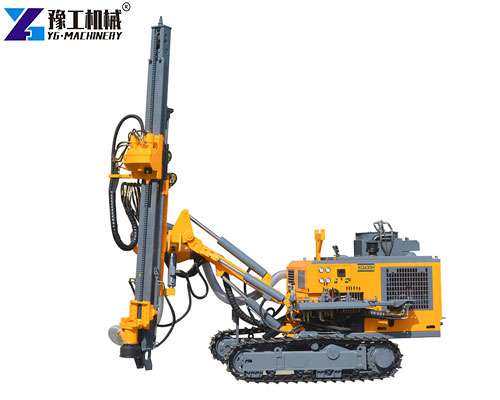

YG DTH Drilling Machine Parameters

Model	YGS100A	YGS153	YGS180	YGS300	YGS350
Total weight	5.95T	3.8T	6.3T	6.8T	8T
Walking speed	2.5km/h	2.5km/h	2.5km/h	2.2/3.8km/h	4km/h 2km/h
Diesel tank capacity	85L	70L	85L	85L	225L
Shipping size	6500*2100*2400mm	4640*1980*2260mm	6600*2110*2500mm	6600*2220*2600mm	7600*2350*2800mm
Drilling hole diameter	90-146mm	83-130mm	90-146mm	90-152mm	90-165mm
Power Configuration	YCD4R22T-80	YC2108 33kw/2400rpm	YCD4R22T-80 55kw	YC4DK80-T302	YC4DK100-T304 73.5kw/2200rpm
Highest horizontal hole height	3.2m	2.8m	3.6m	3.25m	3.5m

Request A Quote

Why Choose a DTH Drilling Rig for Rock Boring?

1. Superior performance in hard rock: Ideal for granite, basalt, and quartzite;
2. Deeper, straighter boreholes: Reduces deviation, ideal for water wells and foundation drilling;
3. Modular and mobile: Most rigs are crawler-mounted and easily transported;
4. Cost-effective operation: Lower maintenance, longer service life.

These advantages make DTH rigs a top choice for contractors and developers worldwide.

Request A Quote

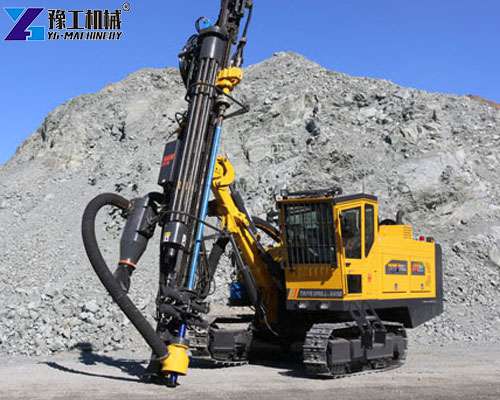

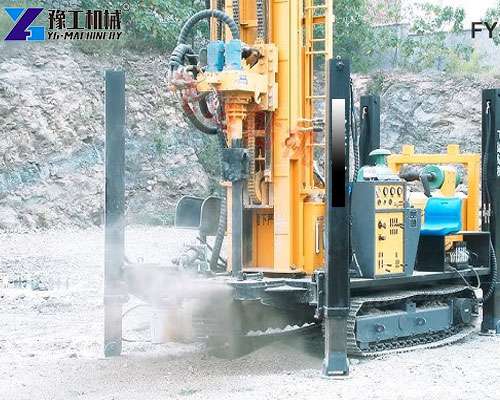

Understanding DTH Drilling Machine Price Factors

When investing in a DTH machine, understanding the DTH drilling machine price is critical. The cost varies based on :

1. Drilling depth and hole diameter requirements;
2. Engine power and fuel efficiency;
3. Air compressor capacity (air pressure & consumption);
4. Brand and customization (e.g., crawler chassis, automation options).

YG Machinery offers factory-direct pricing and supports global shipping. We can help tailor configurations to suit your project’s exact demands.

Request A Quote

Real Applications: Where DTH Boring Machines Excel

1. Rural water well drilling: Especially in rocky regions;
2. Mining and blasting operations: For explosive placement;
3. Geothermal drilling: High-depth, low-deviation boreholes;
4. Construction foundation work: Pile and anchor hole drilling.

Whether you’re in Africa, Southeast Asia, or South America, our DTH solutions are tested and proven in all geological conditions.

Request A Quote

FAQ:

Q1: What’s the difference between a DTH rig and a top hammer drill? A1: DTH rigs place the impact piston directly at the bottom of the hole, leading to straighter, deeper, and more efficient drilling, especially in hard rock.

Q2: What compressor size is needed for your DTH rigs? A2: It depends on the model. For example, the YGK300 requires working pressure: 1.7–2.5 MPa (2.2 MPa recommended). airflow capacity: 20–26 m³/min, type recommendation: Mobile diesel screw air compressor or high-pressure electric air compressor for construction sites.

Q3: Can the machine drill through granite or basalt? A3: Yes. All YG DTH rigs are designed for hard formations including granite, limestone, and basalt.

Request A Quote

DTH Boring Machine in YG Machinery

Looking for a reliable and affordable down the hole drilling machine? YG Machinery offers complete DTH drilling solutions including rig, air compressor, drill tools, and after-sales support. Contact us today.【WhatsApp/WeChat/Phone】+86 13837115193.
