In modern geotechnical engineering, water well drilling and blast hole construction, DTH Drilling is more and more favored by the market with its advantages of high efficiency, low energy consumption and strong adaptability. This article will focus on several small DTH drilling machines, covering technical parameters, product advantages, typical application scenarios and FAQ, to help you better understand and purchase the suitable Portable DTH drilling machine.
The SKD70 is a compact and efficient hybrid DTH drilling rig that combines electric motor power with compressed air technology. The motor provides strong rotational torque, driving the reducer and rotating the drill pipe, while the compressed air powers the impactor to deliver continuous rock-breaking force. As the alloy drill bit penetrates the rock, the crushed debris is blown out through the drill bit’s air vents and discharged to the surface.
Designed for versatility and high efficiency, the SKD70 drilling rig is lightweight and highly maneuverable—ideal for narrow construction sites and rugged hillside projects. It is widely used in slope stabilization, highway excavation, and railway construction. With its energy-saving design and reliable performance, the SKD70 is a cost-effective solution for small DTH drilling operations. Whether you’re working in tight urban spaces or challenging terrains, this small DTH drilling machine delivers powerful results with minimal site impact.

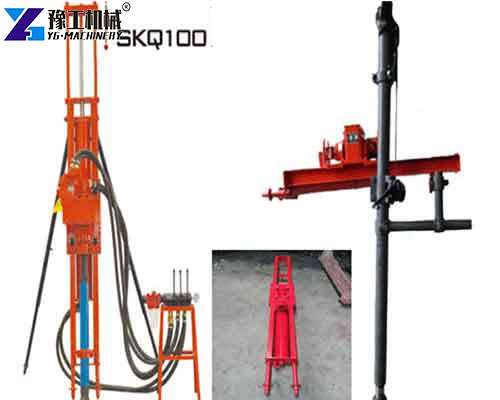

The SKQ100 DTH drilling rig is a pneumatic-powered machine that uses compressed air to generate mechanical force for efficient rock breaking. Driven by a reliable air motor, the SKQ100 can operate without electricity, making it safe and suitable for remote or underground environments.
Designed specifically for tunnel and underground engineering, the SKQ100 column-type drilling rig features an adjustable vertical column and a 360-degree rotatable rig base for flexible drilling angles. Depending on the site requirements, it can be equipped with either a long carriage (for 1-meter drill pipes) or a short carriage (for 0.5-meter drill pipes), both utilizing upper and lower telescopic cylinders for smooth operation.
Ideal for water conservancy, road and railway construction, and mining projects, the SKQ100 is a versatile and efficient solution for demanding drilling conditions.
Model: SKQ-100 Drilling Hole Diameter: 90-130mm Drilling Depth: 0-25m Drilling Speed: 110r/min Working Air Pressure: 0.5-1.0mpa Air Consumption: 12m3/min Cylinder Diameter: 140mm Max. Propelled Force: 9600N Drilling Rod OD: 50-60mm Drilling Rod Length: 1025mm Dimension: 2230*380*550mm Weight: 450kg

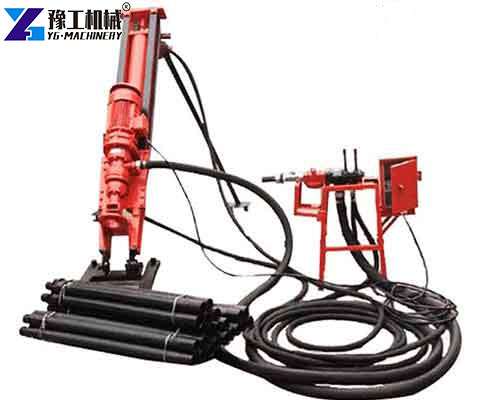

The SKD100 is a high-performance DTH drilling rig featuring a hybrid power system that combines an electric motor with compressed air. As one of our flagship models, the SKD100 stands out for its stable quality, user-friendly operation, and well-engineered design. It is widely used in slope stabilization, quarrying, water conservancy projects, as well as highway and railway construction. With its reliable performance and versatility, the SKD100 is an ideal choice for demanding drilling applications in various complex terrains.
Model: SKD100 Drilling Hole Diameter: 90-130mm Drilling Depth: 0-25m Drilling Speed: 110r/min Working Air Pressure: 0.5-1.0mpa Air Consumption: 6m3/min Cylinder Diameter: 140mm Max. Propelled Force: 9600N Drilling Rod OD: 50-60mm Drilling Rod Length: 1025mm Dimension: 2280*440*550mm Weight: 470kg

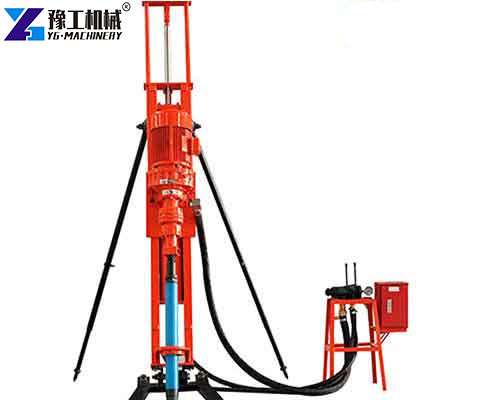

The SKB120-5.5 DTH drilling rig features a hybrid power system combining an electric motor with compressed air. With high torque and strong penetration, it’s ideal for deep-hole blasting. Suitable for slope support, quarries, water conservancy, and road or rail construction.
Model: SKB120-5.5 Drilling Hole Diameter: 90-130mm Drilling Depth: 0-40m Drilling Speed: 110r/min Working Air Pressure: 0.5-1.0mpa Air Consumption: 10m3/min Cylinder Diameter: 140mm Max. Propelled Force: 9600N Drilling Rod OD: 60mm Drilling Rod Length: 1025mm Dimension: 2230*380*550mm Weight: 480kg
Compact size, easy to transport: compact design, light weight, suitable for mountainous areas, narrow construction sites or mobile operations.
High-efficiency pneumatic system, energy-saving and environmental protection: the air compressor provides strong power, adapting to a variety of complex ground conditions, energy-saving and efficient.
Multi-purpose, strong adaptability: suitable for drilling water wells, geological exploration, tunneling, blasting hole drilling in mines and so on.
Modular structure, convenient maintenance: standardized and modular design of each component, convenient maintenance and strong generality of accessories.
Low investment cost and quick return on investment: Compared with the crawler drilling truck, the small DTH drilling rig has low acquisition cost, which is very suitable for small and medium-sized construction teams or individual project contractors to use.
Portable water well drilling in rural or mountainous areas.
Engineering foundation hole construction
Temporary road or slope anchor drilling.
Whether it is rock drilling in mountainous areas or construction in remote areas, small down the hole drilling rig can provide convenient and efficient solutions.
Q1: What kind of equipment is needed for DTH drilling? A: It needs to be used with an air compressor, and it is recommended to use a screw air compressor with an exhaust capacity of 4-12m³/min and a pressure of 0.7MPa or more to ensure the drilling efficiency.
Q2：What kind of geology is Portable DTH drilling machine suitable for? A: It is mainly suitable for medium and hard rock layers, such as limestone, granite, sandstone, etc. It can also cope with weathered rock layers and some hard soil layers.
Q3：How to choose the suitable model? A: Choose according to drilling diameter, depth and geological hardness. For example, SKD70 is suitable for shallow holes and farm wells; SKB120-5.5 is suitable for deep holes and rock blasting holes.
Q4: Can the equipment be operated by one person? A: Most models, such as SKD70, support one person operation; larger models, such as SKB120, recommend two people to work together to improve safety and efficiency.
Q5: How long is the maintenance cycle? A: It is recommended to clean the equipment after each operation, check the cylinder and drilling rod connecting parts every 50 hours, and change the lubricating oil every 200 hours.
