In the field of modern architecture that pursues green construction and efficient operation, electric concrete pump is gradually replacing traditional diesel equipment with its advantages of zero emission, low noise and low operating cost. As the core product of YG machinery, our electric pump series combines cutting-edge technology and scene design to provide economical and environmentally friendly concrete transportation solutions for customers all over the world.
YG Electric Pump Parameter
| Model | YG-20 | YG-30 | YG-40 | YG-50 |
| Motor power | 22KW | 37KW | 45KW | 55kw |
| Maximum outlet pressure | 26mpa | 28mpa | 28mpa | |
| Maximum theoretical throughput | 16-18m³/h | 20-22m³/h | 35m³/h | |
| The maximum particle size of aggregate | ≤20mm | ≤30mm | ≤40mm | |
| Vertical conveying distance | 40m | 80m | 120m | 150m |
| Horizontal conveying distance | 80m | 140m | 2600m | 300m |
| Diameter of the conveying pipe | 80mm | φ80 (100) mm | φ100 (80) mm | Φ125/100mm |
| Whole machine weight | 1600kg | 2200kg | 2400kg | 2500kg |
| Dimensions | 3400x1200x1600mm | 3600x1500x1600mm | 4000x1500x1550mm | 4200*1700*1750mm |

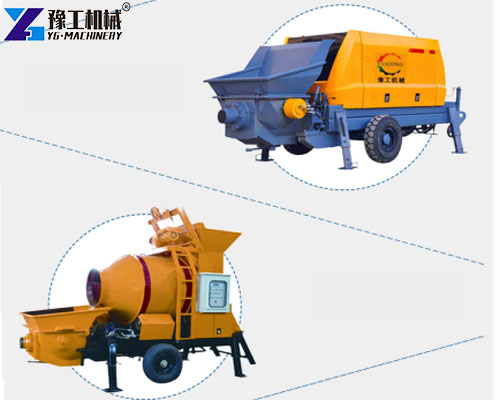

Concrete Pump Types
Our concrete pump is a high-performance solution designed to transport concrete quickly and efficiently on construction sites. Based on different loading methods, it is mainly classified into two types: the flip bucket concrete pump and the skip hoist concrete pump.
The flip bucket concrete pump features a tipping hopper system that allows for fast and easy feeding of concrete, ideal for ground-level or short-distance applications. In contrast, the skip hoist concrete pump uses a lifting bucket system to transport concrete vertically, making it suitable for multi-story buildings and elevated construction projects.
Whether you’re working on residential buildings, urban infrastructure, or road projects, our concrete pumps offer stable performance, low maintenance, and long service life. Choose the right model to improve your construction efficiency and reduce labor intensity.

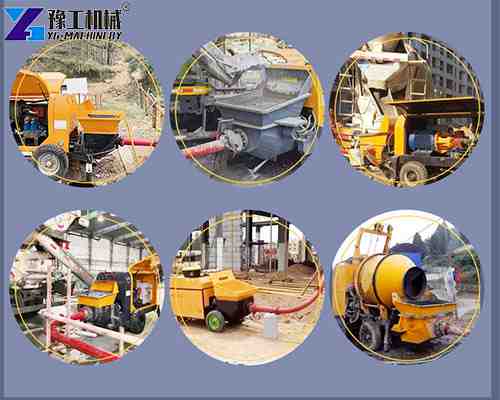

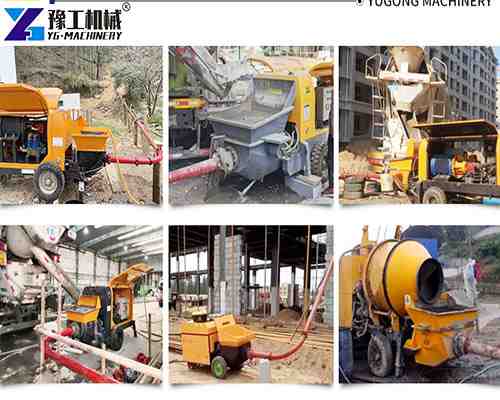

Application Scenario: from Urban Renewal to Rural Infrastructure
Case 1: Lima High-rise Residential Project
The customer used YG-30 electric pump to pour the 18-story building in a narrow construction site. The low noise feature avoided public complaints and saved 20% energy expenditure compared with diesel pump.
Case 2: Rural Road Reconstruction in Vietnam

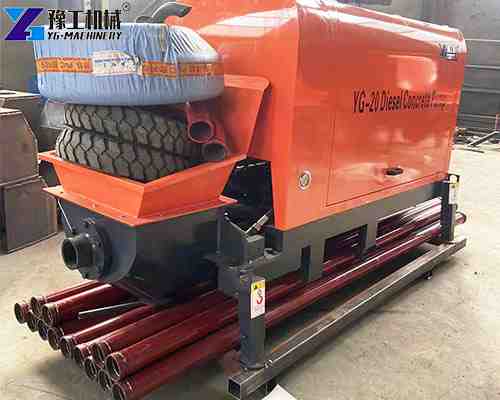

Portable YG-20 model (the price of mini concrete pump price less than 50% of that of diesel) passes through rugged terrain, with a daily pumping capacity of 80m³, which accelerates the road hardening for 3km.
Case 3: Water Conservancy Project in Thailand
YG-50 pumps 260m long distance, and with cement concrete pump accessories, seamless pouring of the dam is realized, and the construction period is shortened by 30%.
Shopping Guide: Three Gold Standards
- Energy Efficiency Ratio Priority
Compare motor power and output efficiency (such as YG-40 consumes 45kW at 22m³ per hour), instead of simply pursuing low price. - Scene Adaptability
Choose a folding chassis in a narrow space (such as YG-20 size 3.4×1.2m), and look for a double-pump hydraulic system for long-distance projects. - Security Certificate
Be sure to check the CE certification and overload protection functions to avoid the risk of motor burning caused by voltage instability.
Brief Analysis of Working Principle
Electric drive hydraulic cylinder → reciprocating motion of piston → concrete is pumped out through S valve pipeline. YG patented “pulse buffering” technology can reduce the pipe blocking rate, and cooperate with φ100mm conveying pipe (standard 20-meter hose) to realize flexible pipe laying.
Conclusion: YG Machinery-Your Efficient Construction Partner
As a construction machinery manufacturer with 15 years of R&D experience, YG has delivered over 2,000 sets of equipment to 50+ countries around the world. At the same time, we recommend the following supporting schemes to improve your income: concrete mixing pump (integrated construction), mortar spraying machine (efficient wall treatment), miniature excavator (assisted by narrow space), etc. Consult the exclusive consultant immediately and get the real-time quotation and technical scheme of YG-20/30/40 model! +86 13837115193.
