Micro Mini Excavator

In city construction, family farm, gardening and other small projects, micro mini excavator is popular because of its small size, flexible operation and comprehensive functions.
So, what is the approximate price of micro mini excavator? What factors affect? And what models are suitable for individual or small project users? This article for you to answer one by one.

Request A Quote

Mini Crawler Excavator Parameters

Model	YG-08	YG-09	YG-10	YG-12
Operation weight	680KG	680KG	820KG	850KG
Engine（customized）	Coop192 G2, E5+50,B&S-gas	Coop192 G2, E5+50,B&S-gas	Coop192 G2, E5+50,B&S-gas	Coop192 G2, E5+50,B&S-gas
Power	7.6kw/12PH	7.6kw	7.6kw	7.6kw
Hydraulic cylinder, pump, valve(customized)	Warranty 1 years	Warranty 1 years	Warranty 1 years	Warranty 1 years
Bucket capacity	0.03CBM	0.03CBM	0.03CBM	0.03CBM
Rotation speed	10r/min	11r/min	11r/min	11r/min
Overall dimension(L*W*H)	2430mm*720mm*1390mm	2430mm*720mm*1390mm	2700mm*910mm*1480mm	2870mm*1000mm*2030mm/2285mm(With shed)
Crawler grounding length	1140mm	1140mm	1200mm	1200mm
Crawler width	150mm	150mm	180mm	180mm
Max digging height	2350mm	2500mm	2680mm	2580mm
Max discharge height	1600mm	1600mm	1700mm	1745mm
Max digging depth	1300mm	1300mm	1600mm	1700mm
Max digging radius	2400mm	2450mm	2850mm	3030mm
Mini turning radius	1100mm	1100mm	1290mm	1290mm
Platform  clearance to ground	380mm	370mm	370mm	370mm
Swing angle	360°	360°	360°	360°
Climbing gradient	30°	30°	30°	30°
Bulldozer Max  depth	150mm	190mm	190mm	170mm
Bulldozer Max raising height	260mm	260mm	260mm	240mm
Walking speed	2.5km/h	2.3km/h	2.5km/h	2.5km/h
Bucket digging force	6.5KN	6.5KN	10.7KN	11.5KN
Hydraulic system press				16MPa
No shed can be added.

Request A Quote

5 Factors Affecting the Price of Mini Excavator

1. Tonnage size
   The larger the tonnage, the wider the carrying capacity and scope of application of the machine, the price is naturally higher. For example, a 0.8-ton micro mini excavator is suitable for home or garden work, while a 3.5-ton machine is suitable for municipal or small-scale construction projects.
2. Engine brand and emission standard
   Equipped with international brand engine such as Changchai, Yanmar, Kohler, etc., the price will be higher; the engine that meets Euro V or EPA emission standard is suitable for European and American market, which will also raise the cost.
3. Hydraulic system performance
   The quality of hydraulic system directly affects the working efficiency and stability. High-end mini hydraulic excavator is equipped with imported hydraulic pumps and multi-way valves, so the price is naturally higher.
4. Track material
   Rubber tracks are more suitable for city roads, while steel tracks are more suitable for mountains and heavy loads. High quality mini crawler excavator track system is slightly higher in price but more durable.
5. Additional features and customization
   such as driving shed, hydraulic quick-change interface, multi-functional configurations such as attached crushing hammer, wood grabber, etc. will also affect the selling price of the whole machine.

Request A Quote

Recommended Mini Excavators for Home/Farm/City Work

The following models are hot-selling models for personal and small project users:

Weight	Features	Application Scenarios
0.8 tons	Miniature design, convenient for home construction	Home garden, orchard land preparation
1.6 tons	Adequate power, easy to operate	Farm, light engineering
2.5 tons	Good stability, support a variety of generators	City roads, small demolition

Request A Quote

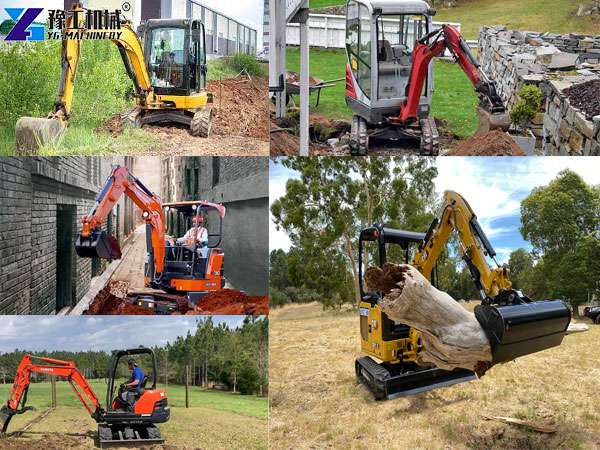

6 Typical Application Scenarios of Mini Hydraulic Excavator

1. Gardening
   For tree planting, lawn renovation, small digging and other fine work.
2. Municipal construction
   is used for community renovation, sidewalk maintenance, cable trench construction and other urban projects.
3. Orchard management
   Weeding under fruit trees, ground tilling, digging drainage ditches, etc. It is a good helper for fruit farmers.
4. Water pipe laying
   mini excavator can easily complete the trench digging and pipe laying in narrow space.
5. House foundation construction
   Suitable for small foundation excavation and post foundation trenching for new houses.
6. Small Demolition Work
   With crushing hammer or hydraulic shear, it can complete the demolition task of indoor or small structure.

Request A Quote

Why Choose YG Mini Excavator?

1. Factory direct supply, price transparency;
2. Support customization, adapt to multiple scenarios;
3. Sufficient stock, fast delivery;
4. Complete accessories, no worry after-sales.

Whether you are working in garden, home or small projects, YG’s mini excavators can provide you with cost-effective solutions!
