In restricted construction space or floor construction, traditional large pumping equipment is often “too big” to be used. The mini concrete pump machine, with its small size, flexible transportation and strong adaptability, is becoming a new favorite in urban construction, tunnels, floor renovation and other scenarios. It is specially designed for fine stone concrete pumping and can efficiently convey concrete with stone particle size not exceeding 20mm, making it an excellent choice for floor construction and pouring of medium and low-rise buildings.

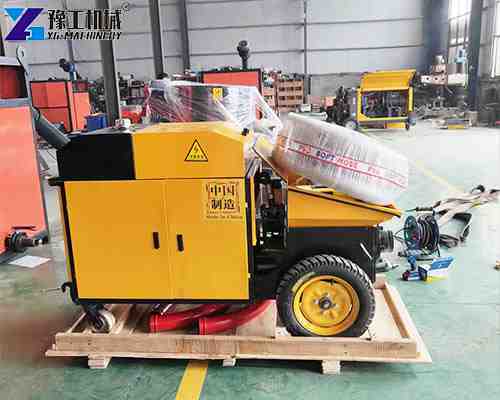

YG Mini Concrete Pump Machine Parameters
The following models are widely used in our long-term practice with our customers and comply with the latest industry standards as of 2023:
| Model | YG-20 | YG-30 |
| Motor power | 22KW | 37KW |
| Maximum outlet pressure | 26mpa | |
| Maximum theoretical throughput | 16-18m³/h | |
| The maximum particle size of aggregate | ≤20mm | |
| Vertical conveying distance | 40m | 80m |
| Horizontal conveying distance | 80m | 140m |
| Diameter of the conveying pipe | 80mm | φ80 (100) mm |
| Whole machine weight | 1600kg | 2200kg |
| Dimensions | 3400x1200x1600mm | 3600x1500x1600mm |
All models come standard with: electronic control box, remote control, standard reducer, hopper agitator, imported seals and high pressure hydraulic system to ensure the stability of continuous pumping.
FAQ
- Is Mini concrete pump price expensive?
The price depends on the model, pumping distance and configuration, compared with the traditional concrete truck, its initial investment is lower and the maintenance cost is smaller. Contact us to know more details now! [WhatsApp/WeChat/Phone/Skype] +86 13837115193. - Is there any stock of Mini concrete pump for sale?

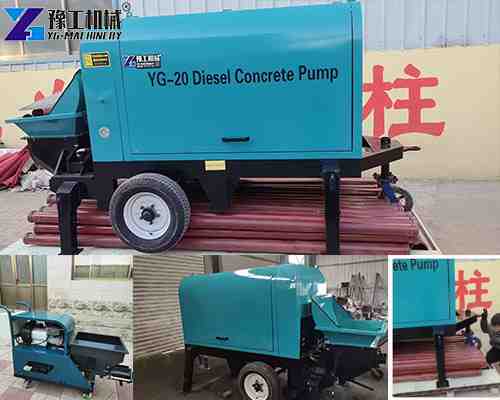

YG Machinery has 10, 20, 30 types in stock all year round, customized models can be delivered in 3 days at the earliest, support export packaging and one-on-one parameter configuration consulting. - Will the Concrete pumping equipment be easy to block the pipe?
When pumping 5-20mm fine gravel concrete, the use of wet pipe, continuous feeding, maintaining the level of material in the hopper can effectively avoid clogging. If clogging occurs, start the reverse function usually can be quickly unblocked. - How to match the hose and steel pipe of concrete pump?

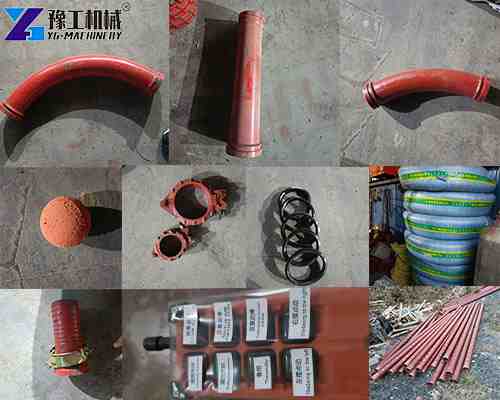

Concrete pumping system is recommended to use steel pipe transmission as much as possible, because of its good pressure resistance. The hose is mostly used at the discharge end, which is easy for the construction personnel to move flexibly. It is usually recommended that each pump with 10 meters of hose, with a number of 1-meter, 2-meter, 3-meter steel pipe and the appropriate elbow, to ensure that the site is flexible laying, to avoid dead-end blockage of the pipe. - What should I do if the stone is big?
If the particle size of stone is more than 2cm (e.g. 3-4cm in diameter), it should be equipped with more than 40 pumps and 100 or 125mm pipe diameter. Fine stone concrete (particle size 5mm-10mm) is recommended with 80mm steel pipe, both material saving and high efficiency.
Tips and Tricks
In our experience, tips for using mini concrete pump machine include:
- Check before Pumping: make sure the hydraulic pressure, hopper mixing operate normally and the remote control responds sensitively.
- Wet Piping: pump once with clean water first to effectively prevent initial clogging.
- Forward and Reverse Pump Operation: Reverse the pump every 5 minutes to prevent deposits from clumping.
- Material Level Control: Concrete in the hopper should always be maintained in a certain amount to avoid inhaling air.
- High Temperature Construction: It is recommended to lay wet grass curtains on the horizontal pipeline and sprinkle water regularly to prevent blockage.

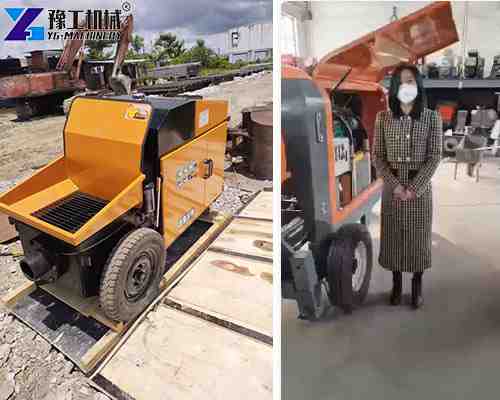

Mini Concrete Pump for Sale in YG Machinery

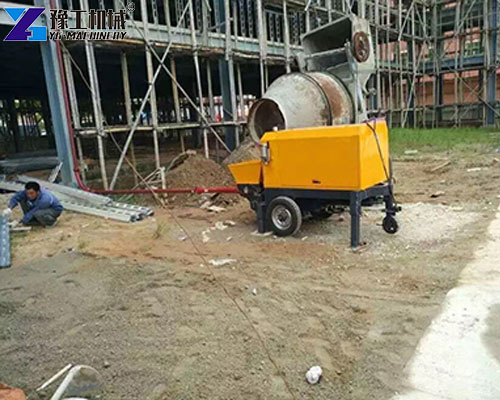

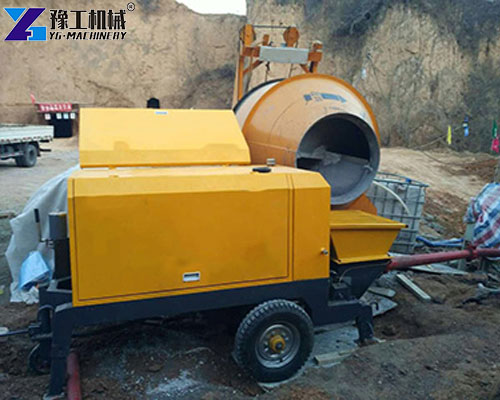

Mini concrete pump machine is a powerful tool for efficient pumping on construction sites, which not only reduces labor costs but also improves operational efficiency.YG Machinery, as an experienced manufacturer, has provided customized concrete pumping solutions for customers in more than 20 countries around the world.
We focus on the practicality and safety of each piece of equipment, from the reducer configuration to the steel pipe option, from the remote control to the details of safe operation, always for the customer site construction considerations.
We also provide the following related equipment, welcome to learn more: hydraulic mortar sprayer, hydraulic mixing plant pump, small concrete pump, etc. Contact us now to get an exclusive quote and construction proposal! WhatsApp/WeChat/Phone/Skype】+86 13837115193.
