A mobile yard ramp is an essential piece of equipment designed to bridge the gap between the ground and a vehicle. As a result, forklifts can drive directly into trucks or containers for smooth and efficient cargo loading and unloading. Moreover, this versatile machine is ideal for sites without fixed loading docks. Thanks to its adjustable height, strong load capacity, and ease of movement, it is widely used in logistics centers, warehouses, factories, and ports.Whether for temporary loading tasks or regular handling operations, it significantly improves efficiency and safety.
Specifications of Mobile Yard Ramp
| Item | YGY6-0.9 | YGY8-0.9 | YGY10-0.9 | YGY12-0.9 | YGY15-0.9 |
| Main Bean Size(mm) | 160*80*4 | 160*80*5 | 160*80*4 | 200*100*5 | 160*80*4 |
| Auxiliary Beam Size(mm) | 100*50*3 | 100*50*4 | 100*60*4 | 120*60*5 | 120*80*5 |
| Rated Load(kg) | 6000 | 8000 | 10000 | 12000 | 15000 |
| Variable Range(mm) | 1100-1800 | 1100-1800 | 1100-1800 | 1100-1800 | 1100-1800 |
| Bridge Length(mm) | 11400 | 11400 | 11400 | 11400 | 11400 |
| Bridge Width | 2000 | 2000 | 2000 | 2000 | 2000 |
| Solid Tire | 600-9 | 600-9 | 600-9 | 700-9 | 700-9 |
| Shelf | 10# | 10# | 10# | 12# | 14# |
| Tongue Plate | 14 | 14 | 16 | 20 | 20 |
| Machine Quality | 2400 | 2600 | 2800 | 3500 | 5000 |
How It Works?
This equipment uses a manual hydraulic system to adjust height without the need for external power. To operate it, operators pump a handle to lift or lower the platform to align with the truck bed. In addition, the solid tires and safety chains ensure smooth movement and secure positioning. Once properly positioned, forklifts can drive up the ramp to load or unload goods directly from the vehicle.
Key Advantages of Mobile Yard Ramp
One of the main benefits is its mobility. Unlike fixed platforms, workers can easily move a mobile loading ramp across different areas of the worksite. It’s perfect for dynamic operations where flexibility is key. The fold-down transition board and heavy-duty structure support safe operations even in challenging conditions. Only one person is needed to operate the system, which reduces labor costs and increases productivity. The use of diamond-shaped anti-skid steel plates ensures safe operation, even during rain or snow. Adjustable support legs provide extra stability, preventing tipping risks during forklift movement.
Applications Across Industries

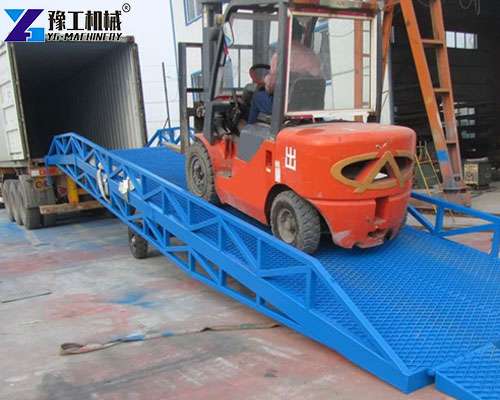

Multiple industries actively use these ramps, including logistics parks, transportation hubs, agricultural warehouses, and construction sites.They serve as efficient loading dock ramps for forklift operations and are especially beneficial in outdoor or mobile settings where traditional infrastructure is not available. For companies that frequently load and unload cargo in different locations, a mobile ramp for unloading trucks ensures quick setup and easy relocation. This makes it a valuable asset for distribution centers and rental services.
Why Choose YG Machinery?
YG Machinery is a trusted manufacturer with years of experience in producing quality loading and lifting solutions. Every product is crafted with durable materials and strict quality control. We offer competitive pricing, customization options, and professional after-sales support to ensure your satisfaction. Besides the mobile yard ramp, we also offer: hydraulic scissor lift platforms, aerial lifts and boom lifts, mini spider cranes, electric forklifts, small backhoe loaders, portable container houses, polyurethane spray machine, etc. Contact YG Machinery today.【WhatsApp/WeChat/Phone/Skype】+86 13837115193.
