With the increasing popularity of temporary or remote office scenarios, the office container van is a must for construction sites, oil and gas fields, emergency response and field projects. yg machinery’s office container van is not only robust, but also offers excellent weatherproofing and mobility, striking a good balance between spatial layout and comfort.
YG Office Container Van Product Parameters
| 20FT Basic Characteristics | External dimension (mm) | W6320*L5900*H2480(Side 2270) |
| Internal dimension (mm) | W6160*L5560*H2240(Side 2150) | |
| Folded state (mm) | W2200*L5900*H2480 | |
| Total mass (kg) | 2500 | |
| 30FT Basic Characteristics | External dimension (mm) | W6360*L9000*H2480(Side 2180) |
| Internal dimension (mm) | W6200*L8660*H2240(Side 2060) | |
| Folded state (mm) | W2200*L9000*H2480 | |
| Total mass (kg) | 3750 | |
| 40FT Basic Characteristics | External dimension (mm) | W6240*L11800*H2480(Side2180) |
| Internal dimension (mm) | W6080*L11540*H2200(Side2060) | |
| Folded state (mm) | W2200*L11800*H2480 | |
| Total mass (kg) | 4400 | |
| Smaller Fold Size | External dimension (mm) | W4820*L5900*H2480(Side2270) |
| Internal dimension (mm) | W4660*L5560*H2240(Side2150) | |
| Folded state (mm) | W700*L5900*H2480 | |
| Total mass (kg) | 1850 |
Office Container Van Features
YG’s office container products are widely utilized modular steel structure and high strength composite wall materials, with the following configurations:
- External size: Size can be customized. For example, standard 20ft (6058mm×2438mm×2896mm) and 40ft (12192mm×2438mm×2896mm);
- Wall structure: polyurethane insulated sandwich panels, fire-resistant grade A;
- Door and window system: aluminum alloy sliding window + steel safety door;
- Electrical system: built-in lighting, power sockets, circuit breaker protection, etc.;
- Ground material: moisture-proof PVC flooring or optional composite wood flooring.
Each prefab container office unit is factory assembled with more than 80% of the electrical and structural components, greatly reducing the amount of on-site construction, and can be configured according to the project with functional partitions such as meeting rooms, data rooms, and finance rooms.
Why Choose an Office Container Van?
Compared to traditional temporary structures, YG’s office container van is usually delivered ready for use without the need for complex foundation work. Its structure can be folded and lifted, which saves a lot of time and human resources in multi-location transfer projects.

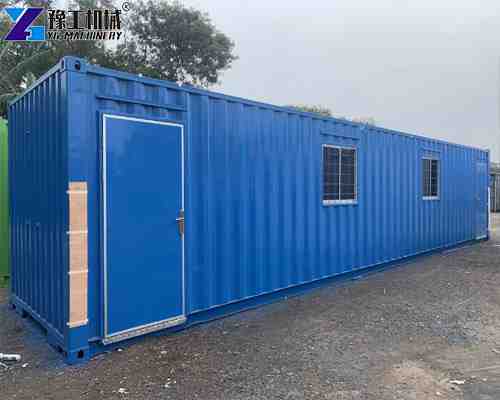

For example, for clients seeking efficient deployment, the 20ft office container for sale type is more flexible and suitable for small offices at the beginning of a project, while the 40ft office container is more suitable for management offices or conference purposes due to its larger space.
In our experience, many customers choose to purchase a basic model and then expand it gradually to form a multi-connected office. This approach achieves a dynamic balance between cost and efficiency.
Wide Range of Use Scenarios
From the temporary command room in the construction site to the data processing center in the remote mining area, the application of office container van is almost everywhere. It is suitable for:
- Infrastructure construction site project department;
- Oil and gas field front line command room;
- Field research temporary base;
- Government emergency command workshop.
Operators need to pay attention to: before the first use, should check whether the power supply access is standard, and confirm that the lighting and socket function is normal. If you need to install air conditioning or network equipment, you should use independent circuit power supply to avoid overloading the system.
YG Machinery: Reliable Office Container Manufacturers
As a professional office container manufacturer, YG Machinery has more than ten years of export experience, and our products have served more than 20 countries and regions. We adhere to the concept of “quality first, service oriented” and provide customized design and fast delivery service, which is highly praised by our customers. In addition to office container van, we also offer a wide range of cost-effective products, including: portable container houses, folding container units, mobile toilet containers, etc. Contact us now for an exclusive quote! WhatsApp/WeChat/Phone/Skype】+86 13837115193.
