Portable Well Drilling Rig

In remote areas or small-scale well drilling operations, portable well drilling rig has gradually become a popular choice in the market by virtue of its compact structure, easy operation, flexible transportation and other advantages. It is suitable for a variety of scenarios such as rural household water collection, farmland irrigation, construction water collection, geological investigation, etc. It is especially suitable for areas with relatively soft geological conditions.

Request A Quote

YG Portable Water Well Drilling Rig Parameters

YG’s self-developed portable water well drilling rig adopts a modular design with superior maneuverability and operational performance.

Model	YG-240-22P	YG-240-30P
Dimension	1450*1550*1970mm	2000*1230*2090mm
Weight	200kg	200kg
Drill rod diameter	42mm	51mm
Drill rod length	1.5m/unit	1.5m/unit
Rod change method	Full automatic screw thread	Full automatic screw thread
Max drilling depth	200m	200m
Diesel engine power	22HP	30HP
Drilling hole diameter	Within 280mm	100mm-240mm
Lifting height	2.5m	Max 2.5m
Lifting force	1000kg	2000kg

In our customers’ practice, the average home user can complete the wellhead construction in 1-2 days, and the performance is especially good in areas with sufficient water sources. Compared with traditional large drilling rigs, portable well drill is not only affordable, but also has a lower threshold for operation.

Request A Quote

Notes on the Use of Small Water Well Drilling Machine

Although the portable well drilling machine is small in size, its use also requires professional operation and maintenance:

1. Check the power system and drill pipe connections before operation to prevent loosening or oil leakage;
2. Configure the drilling bit according to the geology, and replace the impact drilling tools in time if encountering pebble layer;
3. Monitor the water return and drill cuttings in real time during drilling to avoid jamming;
4. Keep the construction site away from high-voltage power lines, open fire and flammable materials;
5. Clean the drilling tools after each operation and replace the lubricating oil regularly to prolong the life of the equipment.

Request A Quote

More Water Well Drilling Rigs

In addition to portable models, YG also offers many types of well drilling equipment to meet the needs of different geological environments and operation scales:

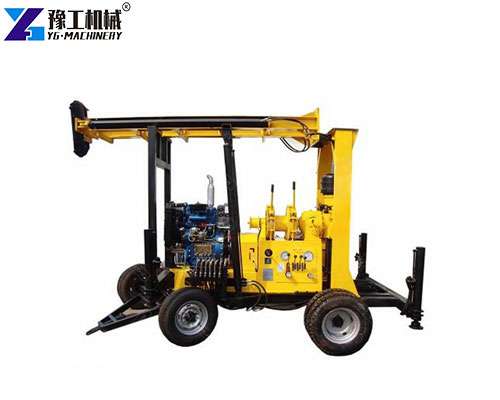

1. Trailer water well drilling rig: with wheels, easy to tow, suitable for mobile operation;

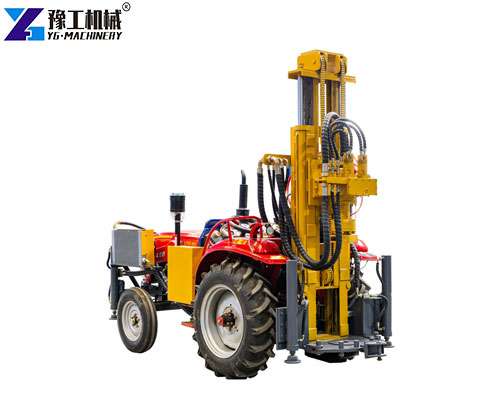

2. Tractor water well drilling rigs: utilizing farm machinery power system, suitable for rural operation;

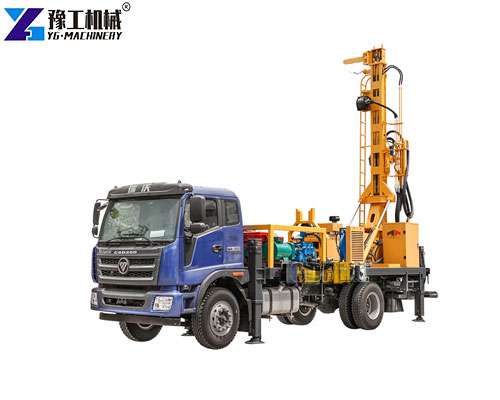

3. Truck-mounted water well drilling rigs: suitable for medium and deep well drilling projects with strong power;

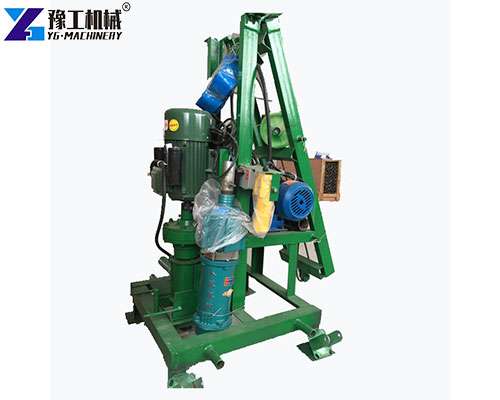

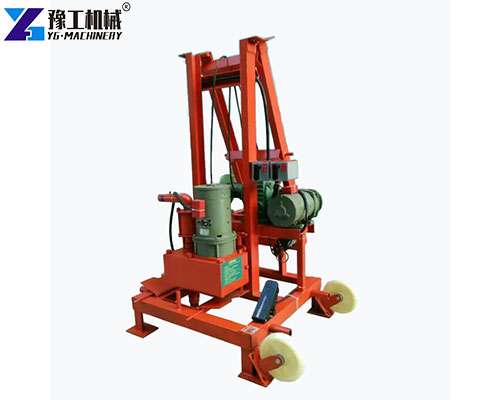

4. Stationary water well drilling rigs: suitable for factory or fixed well construction;

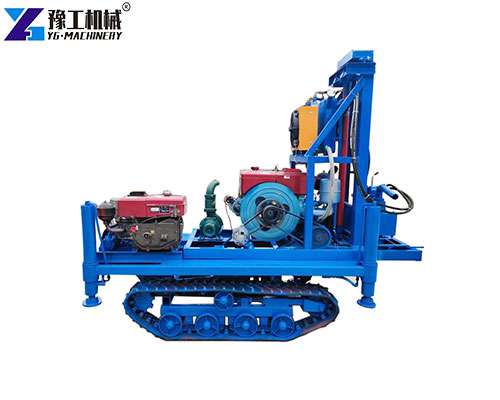

5. Crawler water well drilling rigs: adaptable, can be used in mountainous or rotten mud land;

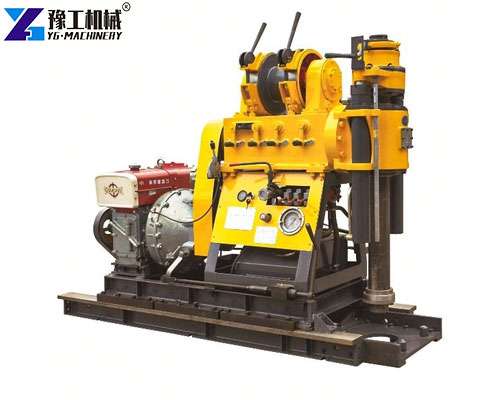

6. Core drilling rig: it can be used for deep drilling, geological exploration and so on, and also for water well drilling.

If you are not sure which model to choose, our sales manager will customize the plan for you free of charge according to your project requirements. contact us: 【WhatsApp/WeChat/Phone】+86 13837115193.

Request A Quote

Portable Well Drilling Machine in YG Machinery?

YG Machinery has been specializing in engineering machinery manufacturing for more than ten years, always insisting on technical innovation and customer satisfaction. Our portable water well drilling rig for sale has been exported to more than 80 countries around the world and has been widely praised. Our products have passed ISO quality system certification, and our fast after-sales service and complete supply of spare parts really make our customers worry-free. Welcome to contact us for a free quote and technical consultation. Contact us to inquire for more product details and prices!
