Road Sweeper Truck

Road Sweeper Truck is an indispensable cleaning tool for municipal sanitation, highways and industrial parks. It can not only complete the road surface cleaning, sweeping, low-pressure rinsing, spraying dust, but also be able to high-pressure scrubbing of curbs and walls, a comprehensive solution to road cleaning problems.
YG provides you with excellent performance, advanced configuration, and supports customization!

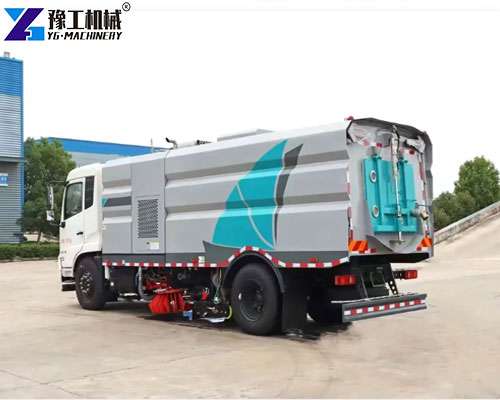

industrial vacuum road sweeper truck
industrial vacuum road sweeper truck
street sweeping vehicles for sale
street sweeping vehicles for sale

Request A Quote

Mechanical Sweeper Truck Parameters

road sweeper truck SpecificationValue
Vehicle ModelYG Road Sweeper Truck
Chassis ModelEQ1125SJ8CDC
Gross Weight11995 kg
Curb Weight7400 kg
Rated Load Capacity4400 kg
Wheelbase3800 mm
Clean Water Tank Volume4 m³
Garbage Box Volume5 m³ (Stainless steel)
Tire Model245/70R19.5 / 8.25R20
Sweeping Width2800-3200 mm
Emission StandardGB3847-2005, GB17691-2018 China VI
Vehicle Dimensions (L×W×H)7000×2200×2700 mm
Main Engine Model (Chassis Engine)Yunnei D25TCIF1, Yuchai YCY30165-60 (optional)
Horsepower (Main Engine)Yunnei 150 HP, Yuchai 165 HP
Displacement (Main Engine)Yunnei 2499 ml, Yuchai 2970 ml
Auxiliary Engine Model & ManufacturerB140 33 (Dongfeng Cummins Co., Ltd.)
Auxiliary Engine Power102 kW
Auxiliary Engine Horsepower140 HP
Auxiliary Engine Displacement3200 ml
Sweeping Speed3-15 km/h
Maintenance Speed15-20 km/h
Max Sweeping Capacity38000 m²/h
Density2.0 g/cm³
Garbage Box Dumping Angle≥30°
Sweeping Efficiency≥96%
Operating Noise<88 dB (Compliant with GB7258)
Sweeping System TypeTwo symmetrical lifting and extending side brushes driven by hydraulic motors
Main ComponentsBrush holder, brush, oil cylinder, hoses, linkages, hydraulic motor
Brush Expansion Diameterφ800-900 mm
Brush Motor Speed140 r/min
Number of Brushes2
Brush Tilt AdjustmentForward tilt 5°-15°, outward tilt 5°-10°
Nozzle Device TypeDouble suction nozzle with adjustable height and built-in high-pressure spray bar (8 nozzles)
Suction Pipe Diameterφ180 mm
Suction Pipe BrandNORRES
Walking Wheel BearingSKF
Wear-resistant Outer RingStellana
Ground Clearance of Nozzle5-8 mm
Suction Airflow Speed50-65 m/s
Nozzle Negative Pressure380 mmH2O
Alarm SystemReverse voice alarm system
Auxiliary Control SystemTail-mounted electric control system for lifting and door operation
Manual Pump Emergency Lift SystemManual pump system for emergency lifting of brushes and hopper

For more information about road sweeper price and detailed configuration, please contact us!

Request A Quote

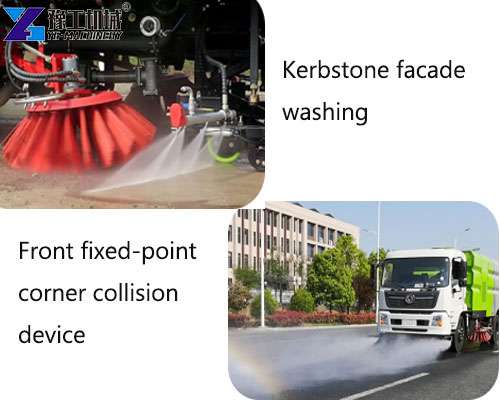

versatile road sweeper truck
versatile road sweeper truck

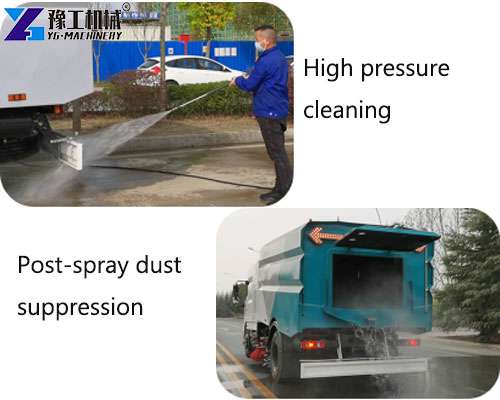

road sweeper truck features
road sweeper truck features

What Can a Road Sweeper Truck do?

Many customers ask, “Is it just a road sweeper?”
YG’s Road Sweeper Truck can be used as a mechanical sweeper truck to sweep the road surface alone, or high-pressure washing, or a combination of modes at the same time to complete the sweeping, suction, spraying and dust reduction, the true realization of multi-functionality in one.
Scenarios:
✔ Municipal urban main roads, viaducts
✔ Industrial parks, factories
✔ Airports, ports, logistics centers

Request A Quote

Why Choose YG Road Sweeper Truck?

  1. Multi-functional design
    Realizes multiple operations of washing, rinsing, spraying and vacuuming to meet the needs of different road conditions.
  2. High efficiency and energy saving
    Maximum sweeping capacity of 38000 square meters/h, fast operation speed, saving labor costs. 3.
  3. Intelligent control system
    adopts PLC/CAN intelligent control, and all operations can be completed in the cab, reducing the rate of misoperation.
  4. Durable structure, long-life design
    Dumpster is made of stainless steel, corrosion-resistant, with high structural strength; fan and hydraulic system are all international first-line brands.

Request A Quote

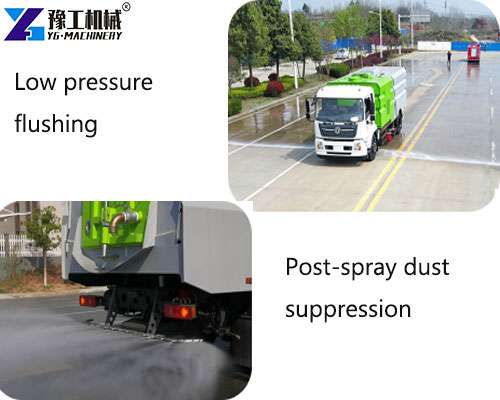

mechanical sweeper truck for sale
mechanical sweeper truck for sale

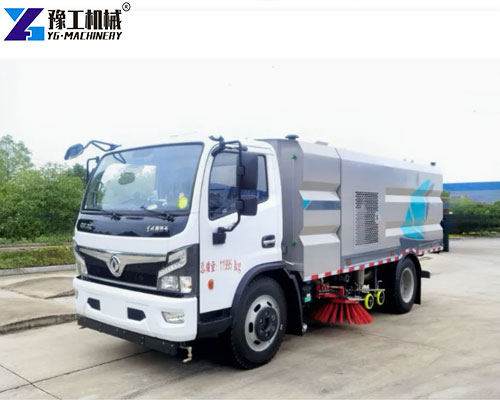

road sweeper price
road sweeper price

Customer’s most concerned question: What is the price of Road Sweeper Truck?

Road sweeper price varies according to different configurations, such as:

  1. Whether optional high pressure spraying system;
  2. Whether the monitoring system is required;
  3. Engine model and emission standard.

YG guarantees reasonable price + international standard quality.
Click to inquire and get a real-time quote for road sweeper truck for sale!

Request A Quote

Application Scenario of Street Sweeping Vehicles

  1. Municipal sanitation: city road cleaning, reduce dust pollution;
  1. Highway maintenance: to deal with large areas of dust and gravel;
  2. Factory park: to ensure that the factory environment is clean and tidy, and enhance the image;
  3. Port terminal: suitable for long distance and heavy pollution area.

Request A Quote

Contact YG Today for a Detailed Quote and HD Video Demonstration!

YG has exported to 50+ countries such as USA, France, Russia, Jordan, etc. YG provides perfect after-sales guarantee to make you worry-free.
Other hot products recommended: electric sidewalk sweeper, snowplow machine, dust suppression vehicle, etc.. Contact us to know more details now!【WhatsApp/WeChat/Phone】+86 13837115193.
