In remote and arid areas, especially in rural areas of Africa and the Middle East, where access to water is still a serious problem, the Small Water Well Drilling Rig (SDWDR) is the ideal solution to the problem of local water access due to its compact structure, easy operation and flexible transportation. It is suitable for a variety of application scenarios such as farmer’s own wells, water supply for small projects, and drinking water wells in pastoral areas.

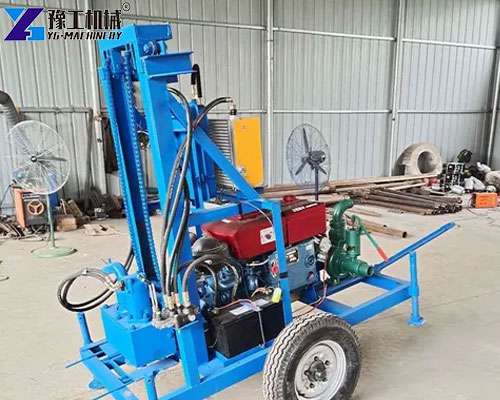

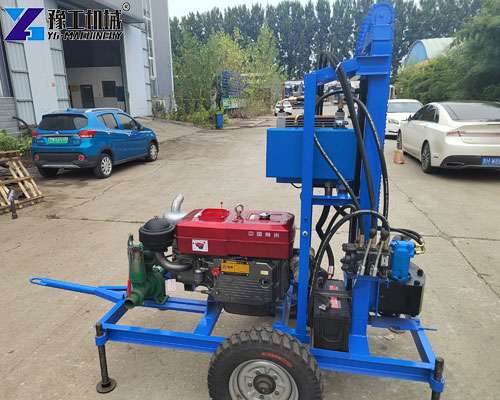

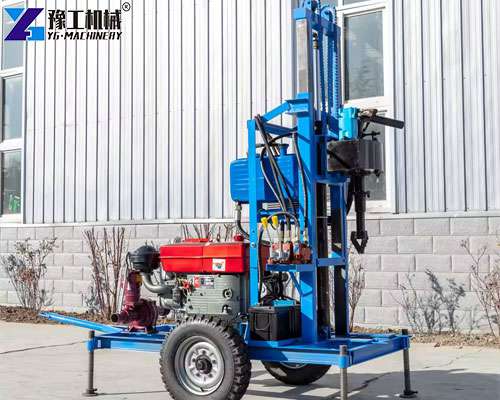

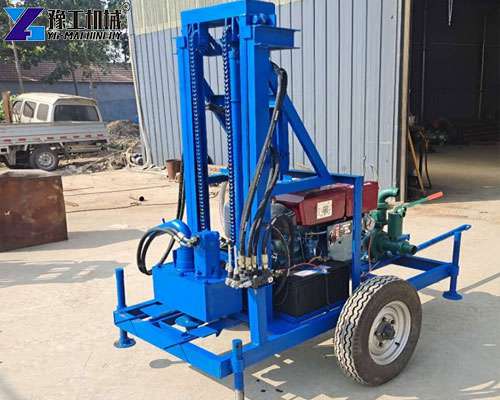

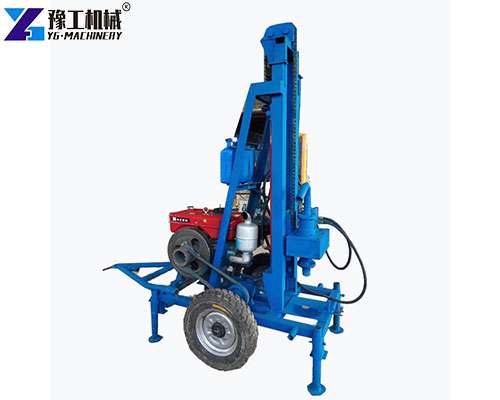

YG’s self-developed small water well drilling rig adopts modularized design, which is suitable for one or two person operation. The technical parameters of its 2023 upgraded model are as follows:
Model
YG-240-22P
YG-240-30P
Dimension
1450*1550*1970mm
2000*1230*2090mm
Weight
200kg
200kg
Drill rod diameter
42mm
51mm
Drill rod length
1.5m/unit
1.5m/unit
Rod change method
Full automatic screw thread
Full automatic screw thread
Max drilling depth
200m
200m
Diesel engine power
22HP
30HP
Drilling hole diameter
Within 280mm
100mm-240mm
Lifting height
2.5m
Max 2.5m
Lifting force
1000kg
2000kg

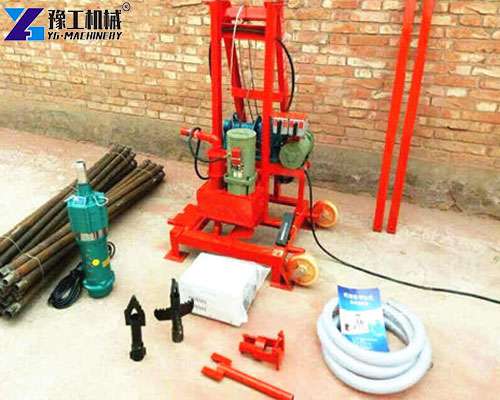

The equipment supporting operating system integrates hydraulic lifting, rotary drilling, convenient disassembly, and supports mud or air cooling. YG also provides a variety of drill bits and auxiliary equipment for different geological conditions. Compared with some common small borehole drilling machines, this model is superior in structural strength and power adaptability.
According to WHO and the basic water standards of each country, the reasonable depth of domestic drinking water wells is generally 30-80 meters, which needs to avoid the pollution sources and have the appropriate well diameter to ensure the water output. When using a small water well drilling rig, a soil and water survey should be carried out in advance, and corrosion-resistant tubing and filtration devices should be used. The wellhead must be kept closed throughout the drilling process to prevent backflow of mud and water.
In inexperienced areas, water contamination or wellhead collapse often occurs due to irregular construction, and it is recommended to have trained operators to guide the work.
Buying Your Own Equipment vs. Outsourcing Drilling Services
In rural Nigeria or Yemen, for example, the cost of hiring a local drilling team to drill a 30-meter-deep well generally ranges from $1,500-$2500, with a waiting list. On the other hand, the cost of purchasing a small well drilling rig is between $2000-$3000, which is a one-time investment that can be used many times. Combined with the current price trend of mini borewell machine, the return of purchasing the equipment is more advantageous in the long-term operation.
In addition, users who own a borewell machine can earn additional income through external services, forming a sustainable water supply business model.
YG: Trustworthy Supplier of Small Water Well Drilling Rig
YG Machinery has been deeply engaged in engineering machinery manufacturing for more than ten years, specializing in the design and export of practical equipment. Our small water well drilling rigs are widely used in Africa, Southeast Asia, and the Middle East, etc. The products are stable and durable, and suitable for high temperature, dusty, and complex terrain environments. All the equipments meet ISO quality standard, and we provide video tutorials and remote technical support. Recommended Related Products: portable water well drilling rigs, hydraulic core drilling rig, DTH borehole drilling machine, etc. Welcome to contact us for the latest borewell drilling machine cost and equipment configuration program. 【WhatsApp/WeChat/Phone】+86 13837115193.
