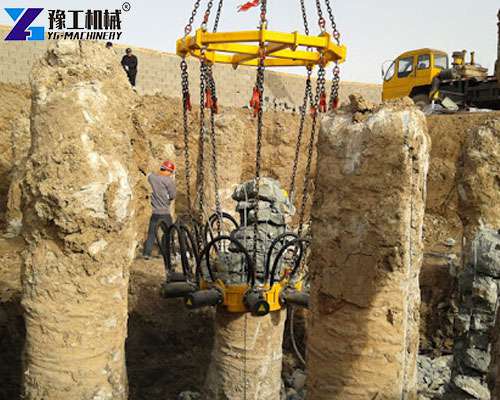

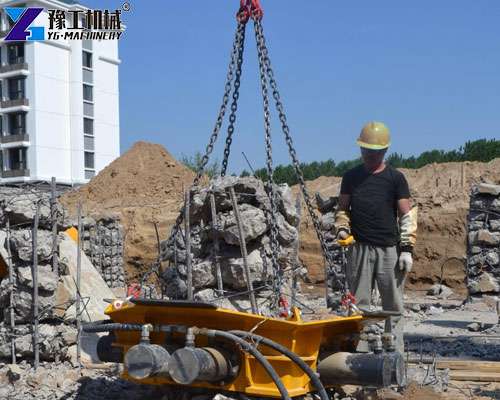

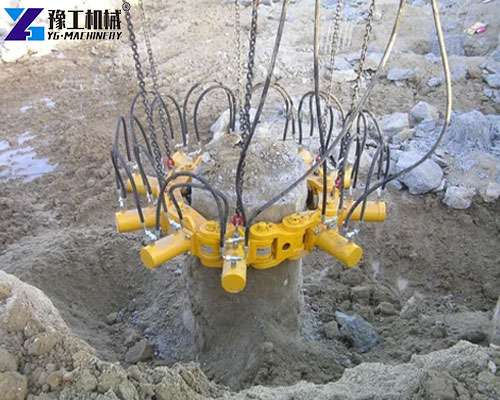

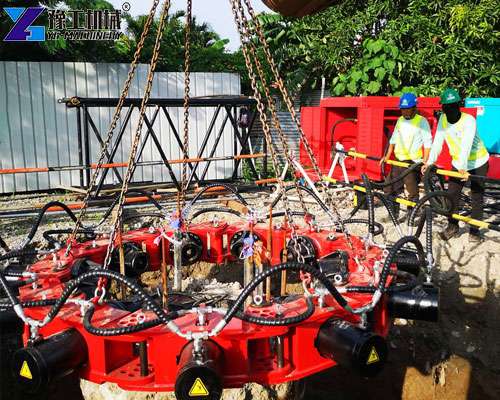

In March 2025, YG Machinery successfully delivered a hydraulic pile breaker to a large infrastructure contractor in Manila, Philippines. The client had been facing challenges in manually breaking down hundreds of reinforced concrete piles in a large bridge renovation project. Traditional methods like jackhammers were time-consuming, noisy, and labor-intensive. After testing several solutions, they chose YG’s hydraulic pile breaker due to its efficient, safe, and non-destructive cutting method. The machine delivered smooth results with minimal labor and no structural damage, earning praise from the site engineer: “This is the most reliable pile breaking machine we’ve used so far—fast, precise, and quiet.”
Product Overview: Hydraulic Pile Breaker Parameters
YG’s hydraulic pile breaker supports multiple pile diameters, with adjustable module combinations:
Module Number | PCS | 4 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | 17 | 18 |
Combination total weight | KG | 1600 | 2640 | 2970 | 3300 | 3630 | 3960 | 4290 | 4620 | 4950 | 5280 | 5610 | 5940 |
Pile diameter range | mm | 400-600 | 600-800 | 800-1000 | 1000-1150 | 1150-1300 | 1300-1500 | 1500-1650 | 1650-1800 | 1800-1970 | 1970-2200 | 2200-2360 | 2360-2500 |
Hydraulic excavator | T | 20T-30T | 30T-40T | Hydraulic system/pump station | |||||||||
Max.Thrust | 300KN | Max.Cylinder required | 20L/min | Machinery Tonnage | ≥20T | Location pinΦ35 | |||||||
Max.Cylinder Trip | 300mm | Chisel diameter | 110mm | Singlemodule weight | 335KG | ||||||||
Max.Cylinder Pressure | 300MPa | Max.Hoist Capacity | ≤500mm | Singlemodulesize | 1015*865*340mm |
Solving the Philippines’ Construction Site Bottlenecks
In the Philippines, rapid urban development has increased demand for deep foundation piling in infrastructure and housing projects. However, site managers often struggle with outdated pile head removal methods that cause dust, noise pollution, and worker fatigue. The contractor for this case, tasked with rehabilitating an old pier, had already tried three other mechanical breakers but failed to meet environmental standards and time constraints.
YG’s hydraulic pile breaker provided a solution that not only eliminated manual labor but also ensured precise cuts within minutes. Unlike traditional hammering, this pile breaking machine uses synchronized hydraulic pressure across multiple cylinders to shear off pile heads evenly—no vibration, no flying debris, and no need for rework. The result: 3x faster project turnover and full compliance with environmental and safety regulations.

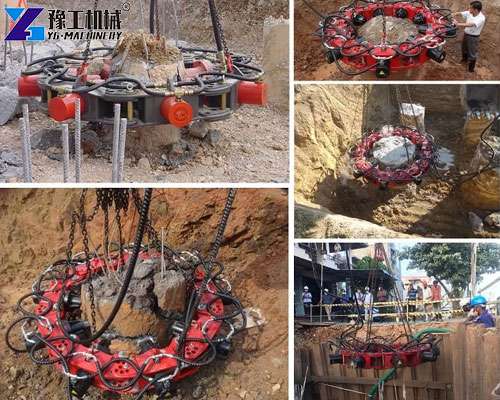

Application Scenario of Hydraulic Pile Breaker:
- Bridge and Highway Construction: Ideal for cutting pile heads in large-scale infrastructure projects where speed and accuracy are crucial.
- Urban Building Foundations: Perfect for dense city sites requiring quiet, dust-free operation with minimal impact on nearby structures.
- Port and Marine Engineering: Efficiently removes submerged or semi-submerged pile heads without damaging surrounding concrete or reinforcements.
- Piling Removal in Demolition Projects: Safely breaks redundant foundation piles during structure upgrades or decommissioning with minimal labor.
Compared with traditional methods like manual jackhammers or blasting, the hydraulic pile breaker offers faster, safer, and cleaner pile cutting—ensuring high productivity and compliance with modern environmental standards.


Why the Hydraulic Pile Breaker Works So Well?
- Efficiency: Cuts each pile in 2–3 minutes without secondary crushing.
- Modular Design: Adjusts to different pile diameters quickly.
- Low Noise: Perfect for urban or sensitive areas with noise restrictions.
- Low Maintenance: Simplified parts and durable materials reduce service needs.
- Safety: No falling debris, low risk of injury, and fewer workers on-site.
This machine has now become the contractor’s standard solution for mid- to large-scale projects.
YG: A Trusted Manufacturer for Hydraulic Demolition Tools
With reliable products, fast delivery, and full after-sales support, YG Machinery is becoming a top choice for Philippine contractors seeking professional-grade solutions. From custom module configurations to on-site training, we ensure clients maximize the value of every machine. Besides the hydraulic pile breaker, we also recommend: concrete wire saw machines, hydraulic rock breaker machine, hydraulic breaker attachments, etc. Contact us to know more details now!【WhatsApp/WeChat/Phone/Skype】+86 13837115193.
