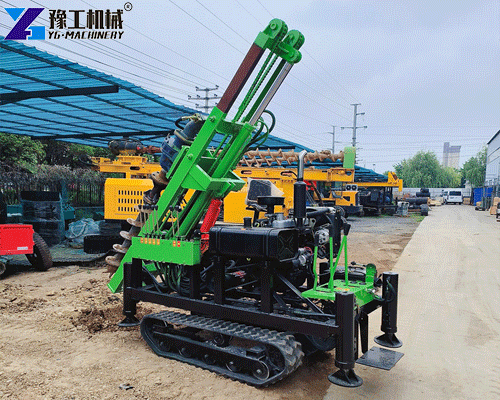

Solar Screw Pile Driver for Ground Mount PV Installation

A solar screw pile driver is a type of solar pile driver designed for installing ground screws or helical piles in photovoltaic foundation systems. Instead of impact driving or concrete foundations, this machine uses controlled rotary torque to screw piles into the ground, ensuring fast installation, high precision, and minimal soil disturbance.

It is widely used in modern ground-mounted solar PV projects, especially where speed, environmental protection, and cost efficiency are key requirements.

Request A Quote

Solar Screw Pile Driver Parameters

Model	YG-32S Solar Screw Pile Driver
Rig Weight	1.2 tons
Engine Power	32 HP
Rotary Head Torque	3500 N·m
Borehole Diameter	50–300 mm
Pile Depth	1–3 m (customizable)
Walking Mode	Crawler gearbox
Climbing Ability	35°
Hydraulic Legs	4
Applicable Soil	Medium soil, clay, weathered rock

Specifications can be customized based on project requirements.

Request A Quote

What Is a Solar Screw Pile Driver?

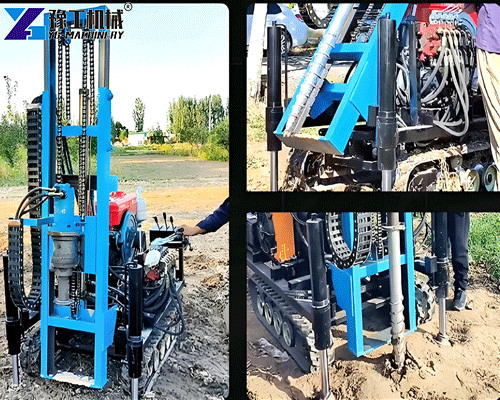

A solar screw pile driver is a crawler-mounted hydraulic machine used to screw helical piles ((ground screws)) directly into the ground by rotational force. These piles serve as the foundation for solar mounting structures.

Unlike traditional pile driving equipment, screw pile installation does not rely on hammering or vibration, no concrete curing. The pile is rotated into the soil using a high-torque hydraulic rotary head, ensuring stable load-bearing capacity for solar mounting structures while protecting surrounding soil layers.

This method is widely used in utility-scale solar farms, agricultural PV projects, and distributed solar installations.

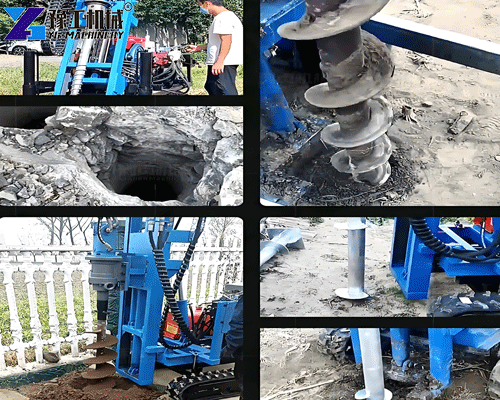

Working Principle of Solar Screw Pile Installation

The installation process is based on torque-controlled penetration:

$T = F \times r$T=F×r

✔ Installation Steps:

1. Position the pile vertically using mast alignment system
2. Hydraulic rotary head applies continuous torque
3. Ground screw penetrates soil layer by layer
4. Torque is monitored to confirm bearing capacity

👉 No curing time is required, so PV structure installation can continue immediately.

Request A Quote

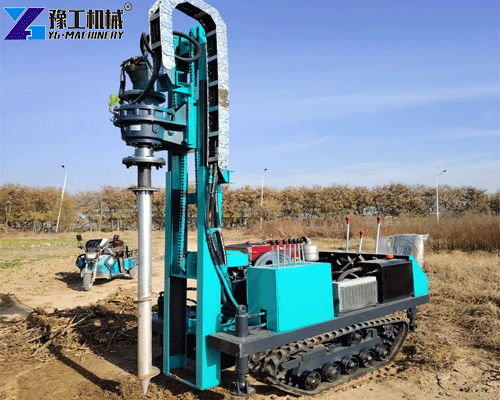

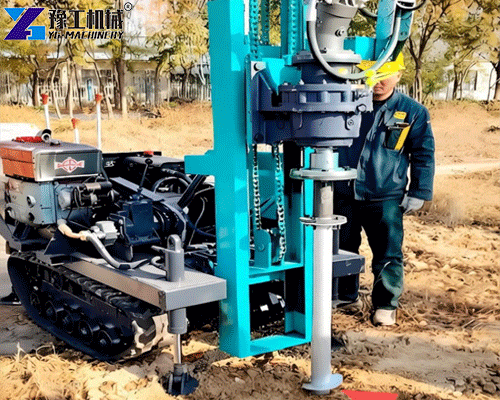

How Does a Solar Screw Pile Driver Work?

The working principle of a solar screw pile driver is based on torque-controlled rotary drilling rather than impact force.

1. The machine positions the helical pile vertically using the mast and guide system
2. A hydraulic rotary head applies continuous torque
3. The screw pile penetrates the soil layer by layer
4. Installation depth and torque are monitored to ensure foundation stability

Because no concrete curing is required, the solar mounting structure can be installed immediately after piling, significantly reducing construction time.

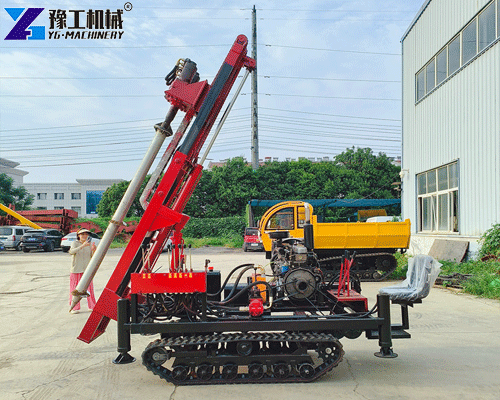

Key Features of YG Solar Screw Pile Driver

YG solar screw pile drivers are engineered specifically for photovoltaic foundation work, focusing on efficiency, adaptability, and reliability.

• High-torque hydraulic rotary head for stable screw pile installation
• Suitable for helical piles, ground screws, and spiral anchors
• Crawler chassis for uneven terrain and soft ground
• Adjustable mast angle for slope and complex site conditions
• Compact structure, easy transportation, and fast setup
• Low noise and minimal vibration during operation

These features make the machine suitable for both large-scale solar farms and small distributed PV projects.

Request A Quote

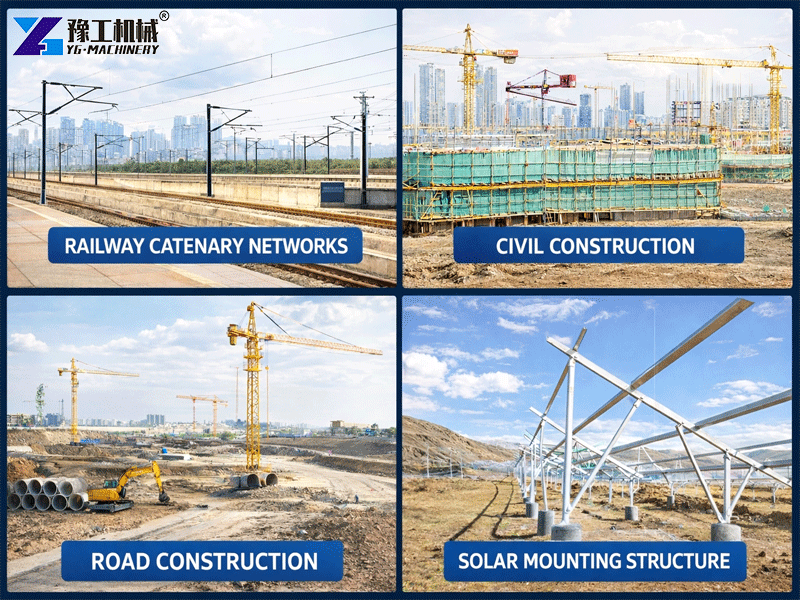

Application of Ground Screw Pile Driver

A solar screw pile driver is widely used in:

• Ground-mounted solar power plants
• Utility-scale photovoltaic projects
• Agricultural solar installations
• Temporary or removable solar structures
• Remote solar sites with limited concrete access

The screw pile foundation is especially suitable for projects requiring fast deployment, environmental protection, and future dismantling.

Request A Quote

Solar Screw Pile Driver vs Traditional Pile Driving Methods

Choosing the right piling method directly affects construction speed and total project cost.

Solar Screw Pile Driver Advantages:

• No concrete foundation required
• Faster installation and commissioning
• Easy pile removal and recycling
• Lower environmental impact
• Suitable for various soil conditions

Traditional Hammer or Concrete Foundations:

• Longer construction cycle
• Higher labor and material costs
• Noise and vibration impact
• Difficult to remove after installation

For modern PV EPC projects, screw pile systems significantly improve construction efficiency.

Request A Quote

Difference Between Screw, Auger, and DTH Solar Piling Systems

YG provides multiple piling solutions to suit different geological conditions:

• Solar Screw Pile Driver
  Best for soft soil, clay, and medium-density ground. Direct installation of ground screws without pre-drilling.
• Solar Auger Drilling Rig + Pile Installation
  Used for compact or mixed soil conditions. Pre-drilling reduces soil resistance before pile insertion.
• DTH (Down-the-Hole) Solar Drilling Rig
  Designed for hard rock and high-strength formations. Requires an air compressor for rock breaking before pile installation.

Selecting the correct piling machine ensures installation efficiency and foundation safety.

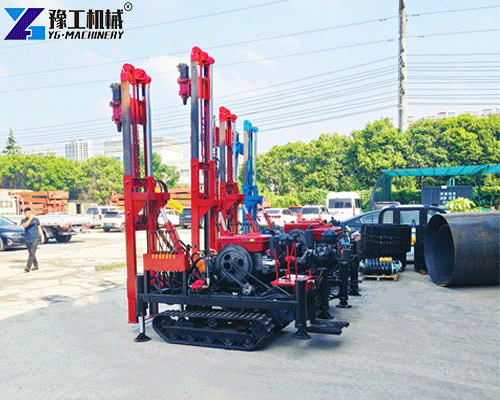

Why Choose YG solar screw pile driver machine?

YG Machinery specializes in photovoltaic foundation equipment with extensive export experience.

• Proven performance in global solar projects
• Customizable torque, mast height, and piling depth
• Stable hydraulic systems for long-term operation
• Technical support and after-sales service available

YG solar screw pile drivers help EPC contractors reduce installation time while ensuring reliable foundation performance.

Request A Quote

FAQ about Screw Pile Driver

Q: What soil types can a solar screw pile driver handle?
A: It is suitable for clay, sand, loam, and moderately weathered rock, depending on torque and pile design.

Q: Does a solar screw pile driver require an air compressor?
A: No. Screw pile drivers rely on hydraulic rotary torque and do not require compressed air.

Q: How fast is screw pile installation?
A: Installation typically takes a few minutes per pile, depending on soil conditions and pile depth.

Contact YG for Solar Screw Pile Solutions

YG provides professional solar screw pile drivers and complete photovoltaic foundation solutions for global PV projects. Contact us to select the most suitable piling machine and quotation for your solar project.【WhatsApp/WeChat/Phone】+86 13837115193.
