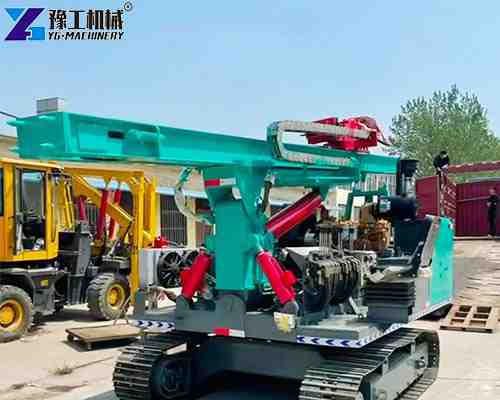

A photovoltaic pile driver is purpose-built for fast and accurate pile installation in solar power projects. YG photovoltaic pile drivers feature high torque hydraulic systems, telescopic crawler support, and multi-model configurations, ensuring stable operation even on slopes, deserts, rocky ground, and complex terrain.
Compared with traditional piling methods, our machines deliver:
- Faster installation speed
- Lower labor cost
- Higher piling accuracy
- Stronger foundation stability for long-term PV performance
👉 Trusted by EPC contractors worldwide for utility-scale solar farm construction.
Pile Driver Solar Parameters
| Crawler Solar Pile Ramming Machine – Hydraulic Hammer Type (requires compressor for rock drilling) | |||
| Parameter | Specification | Parameter | Specification |
| Overall Size | 4700 × 2100 × 2800 mm | Track shoe width | 400mm |
| Power Head | Hydraulic power | Engine | Yuchai four cylinder (85 kW) |
| Overall Quality | 6.5 T | Maximum drilling depth | 6m (can connect drill rods) |
| Maximum Drilling Diameter | 350 mm | Hydraulic hammer flow | 50–110 L/min |
| Impact Frequency | 350–800 bpm | Hydraulic system pressure | 25–30 MPa |
| Oil Pump | 40/40/32 | Travel speed | 5 km/h |
| Climbing Angle | 30° | Strong wind heat dissipation | Large radiator |
| Hydraulic Photovoltaic Pile Driver-Rotary Drilling Type/DTH types | |||
| Parameter | Specification | Parameter | Specification |
| Overall Size | 4700 × 2100 × 2800 mm | Rock Hardness (The hardness of rocks) | 6–20 F |
| Track Shoe Width | 400 mm | ||
| Engine | Yuchai four cylinder | Travel/Walking Speed | 5 km/h |
| Maximum Drilling Depth | 6 m (can install longer drill pipes) | Drill Pipe Speed | 180r/min |
| Maximum Drilling Diameter | 400mm | Sliding Frame Pitch Angle | 120° |
| Reducer Torque | 13,000N.m | Climbing Angle | 30° |
| Oil Pump | 40 / 40 / 32 | Drilling boom swing angle | Left & Right 150° (±75°) |
| Overall Weight | 6.5 T | Slide swing angle | Left & Right 40° |

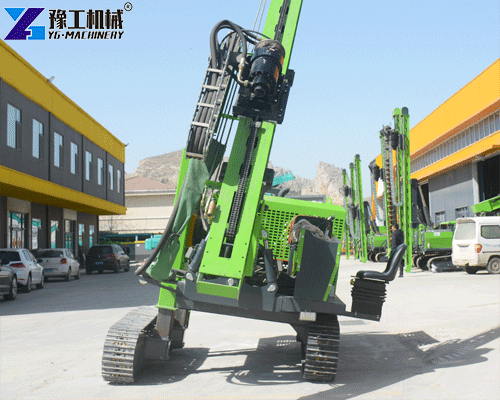

| Skid-Mounted Solar Pile Driver with Hydraulic Adjustable Support Legs | |||
| Overall Dimensions | 4700 × 2200 × 2800 mm | Crawler Plate Width | 300 mm |
| Engine | Yuchai 4108 | Rated Power | 88 kW |
| Max Drilling Depth | 6 m (extendable drill rod) | Max Drilling Diameter | 400 mm |
| Main Pump | Triple pump | Reducer Output Torque | 13,000N.m |
| Drill Rod Speed | 180 r/min | Hydraulic Pump | 40 / 40 / 32 |
| Applicable Rock Hardness | 6–20 F | Climbing Angle | 45° |
| Drilling boom swing angle | Left & Right 150° (±75°) | Sliding Frame Pitch Angle | 120° |
| Travel Speed | 5 km/h | Sliding Frame Swing Angle | Left & Right 40° |
| Machine Weight | 6.5 T | Crawler Height Adjustment Range | 80–120 mm |
How to Choose the Right Photovoltaic Pile Driver?
Hydraulic Photovoltaic Pile Driver
Best for standard solar farms with medium to hard soil. High torque (13,000 Nm) ensures efficient piling.
Crawler Photovoltaic Pile Driver with Hammer
Ideal for fast piling in large-scale flat solar projects requiring high impact efficiency.

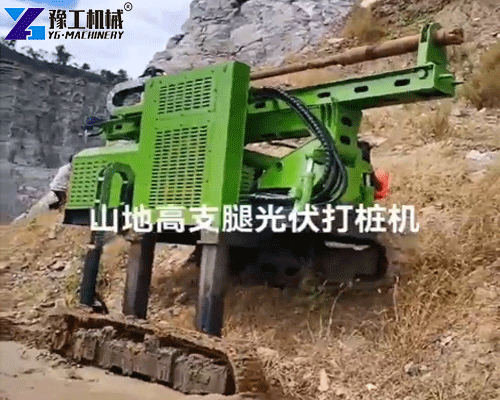

Telescopic Sliding Photovoltaic Pile Driver
Designed for slopes, uneven terrain, and mountainous solar farms, featuring up to 45° gradeability and adjustable crawler height.
👉 Not sure which model fits your project? Our engineers can recommend the right configuration.
Working Principle of the Solar Pile Driver
The photovoltaic pile driver uses a high-torque hydraulic power head to rotate and drive the drill pipe into the ground with precise depth and angle control.
During operation, soil is displaced efficiently, forming stable pile holes with minimal vibration.
This process ensures:
- Strong long-term foundation stability for PV structures
- Accurate pile positioning
- Consistent depth control
- Reduced rework rate
Advantages of Solar Piling Machine
- High Efficiency: By using an advanced power system and drilling technology, the machine can quickly complete piling operations, significantly improving construction efficiency.
- Cost-Effective: Reduced labor requirements and faster installation times lower overall project costs.
- Adaptability: Suitable for various soil types and environmental conditions.
- Precision and Stability: Advanced control systems ensure accurate pile placement, reducing structural risks.
- Eco-Friendly Operation: Some models use electric or hybrid power, minimizing environmental impact.
Applications in Solar Power Projects
Photovoltaic pile drivers are indispensable in solar piling machine operations, especially across diverse installation environments.
- In utility-scale solar farms, these machines drive piles with precision, anchoring thousands of panels across vast, open landscapes.
- For commercial and industrial projects, they ensure solid foundations for rooftop arrays and large ground-mounted systems, even in constrained urban environments.
- In rural and off-grid installations, solar piling machines excel at navigating uneven terrain, enabling sustainable power in remote communities.
- Whether battling high winds, loose soils, or tight deadlines, these machines deliver unmatched stability, speed, and efficiency, forming the backbone of modern solar energy infrastructure.
FAQ about Photovoltaic Pile Drivers
- What is the drilling depth and diameter range of your photovoltaic pile driver?
Our machines support a drilling depth of 0–6 meters and can accommodate pile diameters from 80mm to 600mm, making them suitable for most solar PV projects. - How do I choose between generator, hydraulic, and telescopic models?
Generator set model: Ideal for sites with no external power; powered by a 50kW generator and 22kW motor.
Hydraulic model: Offers higher torque (13,000Nm), suitable for medium-hard soil conditions.
Telescopic sliding model: Best for complex terrains due to its 45° gradeability and 120° tilt angle. - Can it work on rocky or hard ground?
Yes, both the hydraulic and telescopic models support rock hardness from 6 to 20F, and are equipped with 4108 motors and triple pump systems for powerful and stable operation. - What type of terrain is it suitable for?
Thanks to 400mm wide track shoes, strong-grade climbing capabilities (up to 45°), and swing arm rotation (150°), it adapts to flatlands, slopes, deserts, mountains, and uneven terrains. - What’s the delivery time and shipping method?
We can ship within 7–15 working days after confirming the order. Delivery is by sea with optional container loading services and export packaging. - Can I get a machine demo or customization service?
Yes! We offer remote video demonstrations, and support custom modifications such as drill diameter adjustment, track type, engine type (diesel/electric), or telescopic crawler features. - Is this photovoltaic pile driver suitable for EPC contractors and rental companies?
Yes. Our machines are widely used by EPC contractors and equipment rental companies due to their durability, fast ROI, and wide terrain adaptability.
Project Case Study: PV Pile Driver Shipped to Colombia
Client Background:
An EPC contractor in Bogotá, Colombia, needed a reliable photovoltaic pile driver to handle a 500KW solar station installation over rocky ground with slope variations.
Problem:
Traditional hammer machines couldn’t handle the terrain gradient, and rental costs were too high. The client also needed quick drilling to meet a tight construction schedule.
Solution Provided:
We recommended the Telescopic Sliding Photovoltaic Pile Driver with the following features:
- Drill pipe rotation speed: 180r/min;
- Gradeability: 45° for steep slope operation;
- Drilling range: 80–600mm diameter;
- Swing angle: 150° for flexible pile positioning;
- Crawler telescopic height: 80mm for complex ground leveling.
Result:
The project completed 3 days ahead of schedule, saving over 25% on labor costs. The machine maintained continuous drilling over 8 hours/day without overheating, thanks to enhanced wind cooling.
Client Feedback:
“It exceeded our expectations. The rotary speed, efficiency, and ground adaptability are impressive. We’ve already recommended this model to two partner companies.”
This case proves the telescopic photovoltaic pile driver is a reliable solution for sloped and rocky solar farm construction.
Solar Pile Driver for Sale in YG Machinery
YG Machinery offers high-performance solar pile driver for sale, designed for durability and efficiency. Our machines provide:
- Advanced Hydraulic Systems for consistent power and precision.
- Customizable Models to meet different project needs.
- Reliable After-Sales Support, including spare parts and technical assistance.
- Competitive Pricing without compromising on quality.
- Other Recommended Products from YG Machinery.
In addition, YG Machinery manufactures a variety of high-quality construction and industrial machines, including: highway guardrail pile driver, ramming pile driver, etc. Contact us to know more details now!【WhatsApp/WeChat/Phone/Skype】+86 13837115193.
