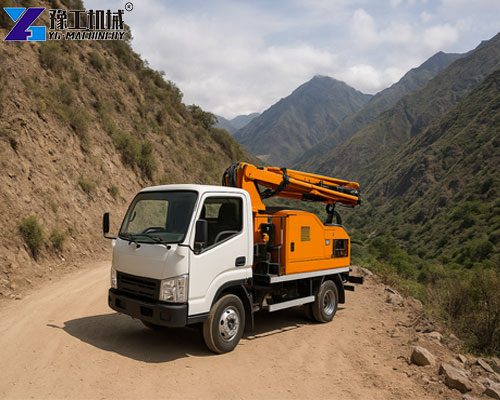

small concrete pump truck working on mountain road construction site in peru

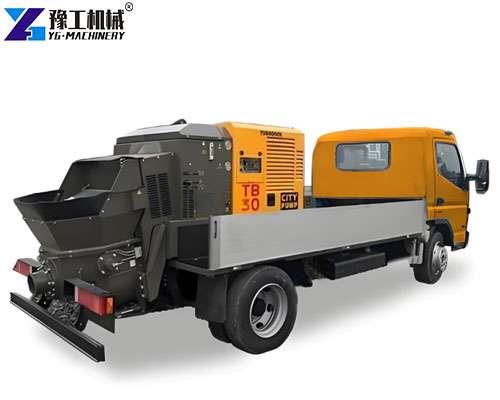

The small concrete pump truck is a compact yet powerful concrete conveying solution, designed specifically for challenging construction environments. Whether it’s navigating narrow alleys in crowded urban areas, reaching high-rise foundations, or operating in rural and mountainous sites with limited space, this truck ensures smooth, uninterrupted concrete delivery. Forget the delays and inefficiencies caused by traditional large-scale pumps that cannot access tight or uneven sites—our small concrete pump truck makes it possible to pump concrete freely, even in the most confined spaces. With high mobility, easy operation, and reliable performance, it saves time, reduces labor costs, and ensures consistent construction quality. Ideal for contractors facing space constraints or complex projects, this pump truck turns logistical challenges into seamless workflow.

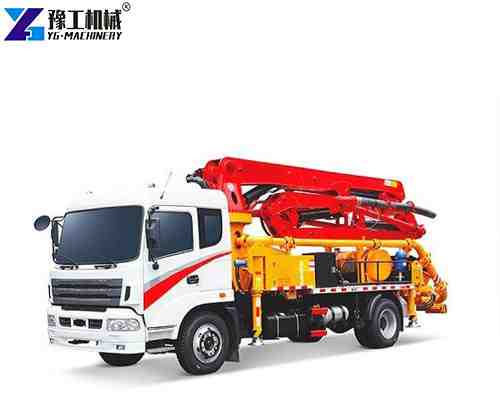

YG’s small concrete pump truck adopts a new generation of high-pressure piston pumping system in line with the 2023 industry standard, and is equipped with a customized chassis with excellent stability and passability. Its key technical parameters are as follows:
Vehicle model
/
5230THB
whole vehicle
Dimensions: length x width x height
mm
9500X2500X3680
Vehicle weight
Kg
23000
Pumping
Concrete theoretical delivery
m³/h
60
Concrete theoretical output pressure
MPa
10
Hopper volume
m³
0.6
Feeding height
mm
1450
Maximum aggregate size
mm
40
Concrete slump
mm
120-230
Approach angle/departure angle
(°)
19°/11°
Hydraulic
Hydraulic system pressure
MPa
32
Hydraulic circuit (open/closed type)
/
open
Hydraulic oil tank capacity
L
600
Lifting arm
Maximum vertical fabric height
m
30
Maximum horizontal fabric radius
m
28
Maximum fabric depth (including 3m hose)
m
22
Lifting arm folding method
/
RZ
Minimum boom extension height
mm
6200
Length of each section of the boom
mm
7550/6300/6300/3455/2856
Rotating angle of each section of the boom
(°)
90/180/180/245/90
Angle of rotation
(°)
±360º
Tail hose length
m
3
Support leg
Longitudinal span of outrigger
mm
6200
Transverse span of front outrigger
mm
5300
Rear leg transverse span
mm
5300
This product supports continuous and stable pumping, and also has soft shaft control technology, which can realize precise speed regulation and stable pressure switching. Compared with traditional large concrete pump trucks, it can work flexibly in more complicated and narrow construction sites to meet the diversified needs of actual projects. Contact us to know more details now!【WhatsApp/WeChat/Phone/Skype】+86 13837115193.

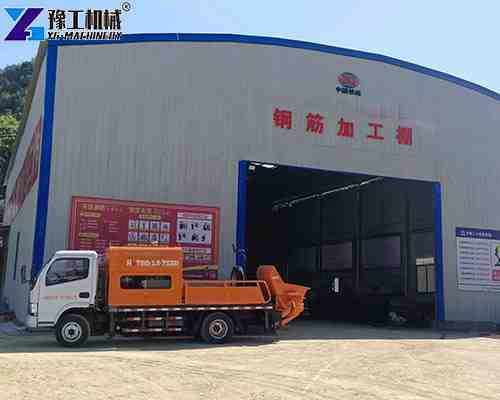

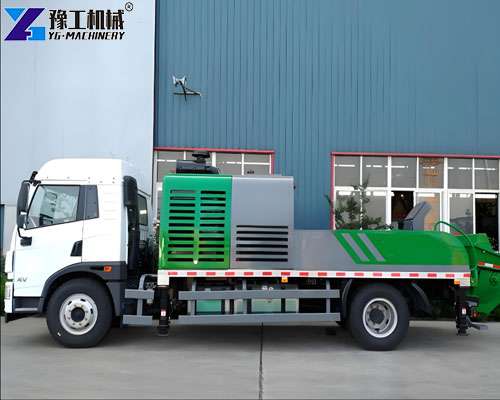

In our customers’ experience, YG’s small concrete pump truck is often recognized as a core member of the “mobile construction team”. It is more suitable for decentralized tasks than a concrete line pump truck or a conventional large pump truck. Its main advantages include:
Flexible operation: small chassis design, small turning radius, suitable for working in city alleys, old neighborhoods or mountainous areas.
Efficient transportation: trailer-free transportation, stop and go as you go, not restricted by large vehicle access policy.
Convenient operation: adopting wireless remote control to control the pumping rhythm, the operator can walk freely in the hopper and the end of the pumping pipe to improve safety and efficiency.
Optimization of energy consumption: the engine and the hydraulic system are optimized to reduce fuel consumption while maintaining strong pumping power.
Easy maintenance: modularized structure, centralized arrangement of key components, fast and easy daily maintenance.
It is worth noting that YG has also formulated strict standards for pumping safety, such as: prohibiting the boom operation to exceed the rated pumping height, not allowing private extension of the hose, and the outriggers must be fully aligned to ensure construction safety from the source.
A construction company in Kuala Lumpur, Malaysia, faced difficulties with narrow alleyways during an old town renovation project, making conventional large concrete pump trucks impassable. The client selected a YG compact concrete pump truck, with a width of only 2.2 meters, enabling easy access to the construction site. Its pumping height reaches 35 meters, meeting the requirements for pouring concrete in multi-story buildings. The equipment’s convenient wireless remote control significantly improved construction efficiency. The client reported that the construction period was shortened by two days, and the concrete pouring was more uniform and stable. The client plans to purchase more in the future.
Peru Case Study

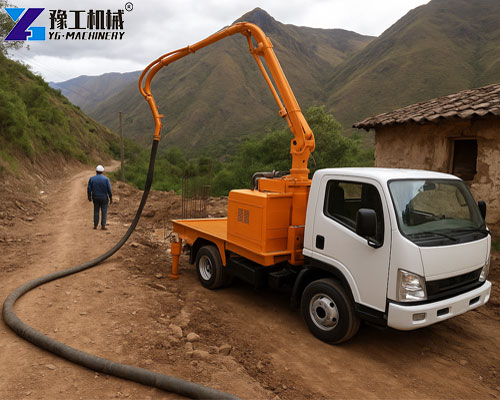

A residential project in a mountainous area outside Lima, Peru, faced narrow and steep roads, making conventional trailer-mounted concrete pumps impassable. The client selected a YG compact concrete pump truck with a customized chassis for enhanced maneuverability and adaptability to the complex terrain. During construction, the equipment consistently pumped 180 meters, demonstrating excellent power and reliability. The project was successfully completed a week ahead of schedule. The client praised the equipment as ideal for mountain construction and recommended it to their partners.
Small Concrete Pump Truck for Sale in YG Machinery
In urban renewal, rural revitalization and other projects, small concrete pump trucks are increasingly showing their irreplaceable value.YG Machinery, as one of the leading engineering equipment manufacturers in China, is committed to providing high-quality small concrete pump for sale solutions for global customers. We have a complete pre-sales technical support and after-sales service system, and we can customize personalized configurations according to customers’ working conditions.
