Under the global new energy construction boom, solar pile driver machine has become an indispensable core equipment in the ground mounting of photovoltaic power plants. Whether it is a mountainous project, a sandy project, or a high-density hard soil environment, a suitable PV pile driver can not only improve the construction efficiency, but also directly affect the cycle and cost of the power plant construction.

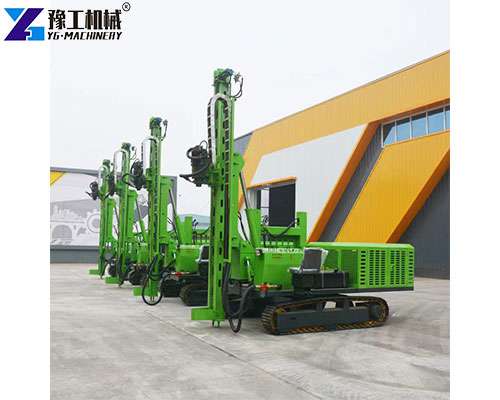

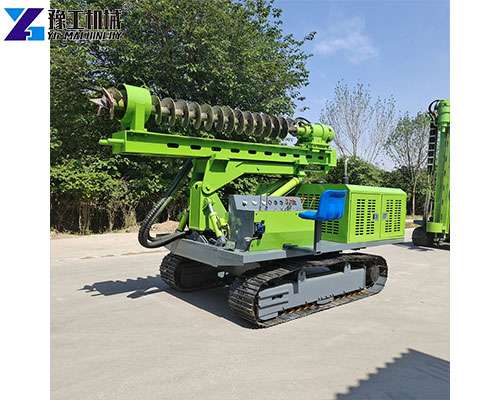

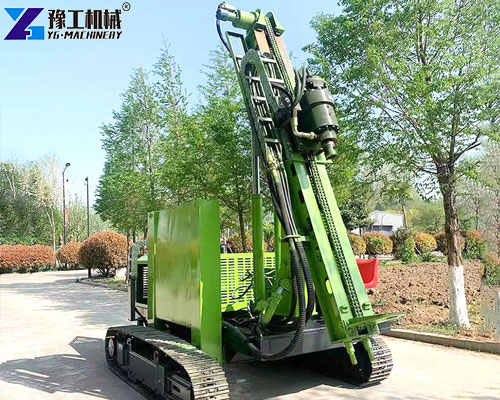

To meet these increasingly complex site conditions, YG solar pile driver machines are engineered with a crawler-mounted structure and telescopic adjustable outriggers, allowing stable operation even on sloped, uneven, or rugged terrain. This flexible high–low outrigger design ensures precise vertical piling, enhanced safety, and consistent performance in challenging photovoltaic construction environments where traditional piling equipment often struggles.
Solar Pile Driver Machine Parameters
Choose the right configuration based on terrain, soil condition, piling method, and project scale.
| Skid-Mounted Solar Pile Driver with Hydraulic Adjustable Support Legs | |||
| Overall Dimensions | 4700 × 2200 × 2800 mm | Crawler Plate Width | 300 mm |
| Engine | Yuchai 4108 | Rated Power | 88 kW |
| Max Drilling Depth | 6 m (extendable drill rod) | Max Drilling Diameter | 400 mm |
| Main Pump | Triple pump | Reducer Output Torque | 13,000N.m |
| Drill Rod Speed | 180 r/min | Hydraulic Pump | 40 / 40 / 32 |
| Applicable Rock Hardness | 6–20 F | Climbing Angle | 45° |
| Drilling boom swing angle | Left & Right 150° (±75°) | Sliding Frame Pitch Angle | 120° |
| Travel Speed | 5 km/h | Sliding Frame Swing Angle | Left & Right 40° |
| Machine Weight | 6.5 T | Crawler Height Adjustment Range | 80–120 mm |
| Crawler Solar Pile Ramming Machine – Hydraulic Hammer Type (requires compressor for rock drilling) | |||
| Parameter | Specification | Parameter | Specification |
| Overall Size | 4700 × 2100 × 2800 mm | Track shoe width | 400mm |
| Power Head | Hydraulic power | Engine | Yuchai four cylinder (85 kW) |
| Overall Quality | 6.5 T | Maximum drilling depth | 6m (can connect drill rods) |
| Maximum Drilling Diameter | 350 mm | Hydraulic hammer flow | 50–110 L/min |
| Impact Frequency | 350–800 bpm | Hydraulic system pressure | 25–30 MPa |
| Oil Pump | 40/40/32 | Travel speed | 5 km/h |
| Climbing Angle | 30° | Strong wind heat dissipation | Large radiator |
| Hydraulic Photovoltaic Pile Driver-Rotary Drilling Type/DTH types | |||
| Parameter | Specification | Parameter | Specification |
| Overall Size | 4700 × 2100 × 2800 mm | Rock Hardness (The hardness of rocks) | 6–20 F |
| Track Shoe Width | 400 mm | ||
| Engine | Yuchai four cylinder | Travel/Walking Speed | 5 km/h |
| Maximum Drilling Depth | 6 m (can install longer drill pipes) | Drill Pipe Speed | 180r/min |
| Maximum Drilling Diameter | 400mm | Sliding Frame Pitch Angle | 120° |
| Reducer Torque | 13,000N.m | Climbing Angle | 30° |
| Oil Pump | 40 / 40 / 32 | Drilling boom swing angle | Left & Right 150° (±75°) |
| Overall Weight | 6.5 T | Slide swing angle | Left & Right 40° |
Solar Project Pain Points
In today’s fast-expanding photovoltaic market, the biggest bottleneck isn’t just panels or inverters — it’s foundation installation.
Many solar EPCs face:
- Slow piling speeds that delay entire projects;
- High labor costs from manual or inefficient machines;
- Difficulty working on uneven terrain, rocky ground or slopes;
- Installation precision challenges, leading to misalignment or rework;
- Downtime or overheating with weaker piling rigs.
Why YG Machinery’s Solar Pile Driver Is Your Game‑Changer?
- Rapid & High‑Efficiency Piling
Our hydraulic-powered pile driver can drive piles in record time, accelerating your installation pace and helping you meet tight deadlines. - Precision & Stability
With precise control of pile depth and alignment, our machine ensures each pile is perfectly placed — reducing rework and improving structural integrity. - Adaptability to Difficult Terrains
Whether it’s steep slopes, rocky soil, sandy desert, or hilly regions, our machine handles it all with ease. - Continuous Operation
Designed for long hours — robust cooling and hydraulic system support 8+ hours of stable piling without breakdown. - Customizable Pile Sizes
Supports a wide range of pile diameters (e.g. 80–500 mm), adapting to your project’s unique requirements. - Reduced Operating Costs
Save on labor, reduce downtime, and optimize resource use — boosting your ROI from the very foundation stage.
Applications of Solar Pile Driver
- Large‑scale ground‑mounted solar farms;
- Mountainous or hilly terrain PV projects;
- Desert solar installations;
- High‑density or tightly packed solar sites;
- Remote or off-grid solar farms with access challenges.
Customer Case Studies
Mexico Project – Solar Farm Foundation
A major EPC contractor in Mexico launched a 60 MW ground-mounted solar project in a rocky, semi-arid terrain. With YG’s Solar Pile Driver, they:
- Reduced piling time by 40% compared to local competitors;
- Maintained ±10 mm alignment precision for each pile;
- Operated 10 machines in parallel across the site, shortening the foundation phase by 3 weeks.
The client praised YG for “exceptional product reliability and proactive technical support”
Peru Project – Andean Solar Installation
In Peru’s mountainous region, an EPC company needed a piling solution able to handle steep slopes and rocky substrata. YG Machinery provided a customized pile driver configuration that:
- Supported slopes of up to 35° while maintaining piling speed;
- Completed 1,200+ piles over a 4-week foundation campaign;
- Reduced labor costs by more than 30% vs previous equipment.
The customer said: “YG’s machine not only survived our tough terrain — it thrived, helping us build the foundation fast and precisely.”
FAQ about Solar Pile Driver Machine
Q: Can your machine handle very hard or rocky soil?
A: Yes — our hydraulic system, combined with high torque and stability, allows it to drive piles through tough rock or compact soil.
Q: What pile diameters do you support?
A: We support a wide range, typically 80–500 mm, and can customize based on project needs.
Q: How reliable is the machine for long operations?
A: Very reliable. With robust cooling and hydraulic systems, it operates continuously for 8+ hours without overheating.
Q: Do you offer spare parts and support internationally?
A: Absolutely. YG Machinery provides global after-sales service, spare parts logistics, and remote technical support.
Choosing the Right Solar Pile Driver Machine Is the First Step to the Successof PV Project
Whether you are facing sandy, mountainous, hard soil or gravel layer, choosing a suitable solar pile driver machine not only determines the construction efficiency, but also relates to the cost and progress of the whole PV project. As a professional PV construction equipment manufacturer, YG can recommend the most suitable pile driver solar solution according to your terrain, construction plan and budget.
In addition, we also produce electric rotary solar pile driver, solar mounting pile driver, DTH Drilling Machine, etc. Contact us to know more details now! Phone】+86 13837115193.
