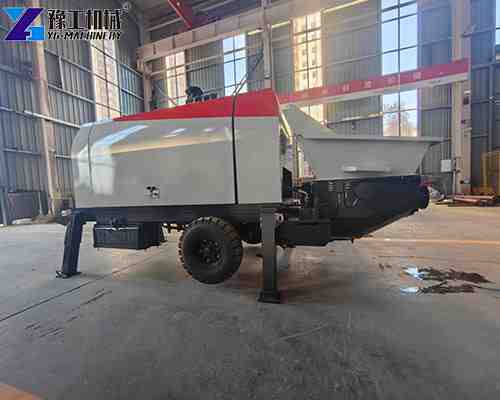

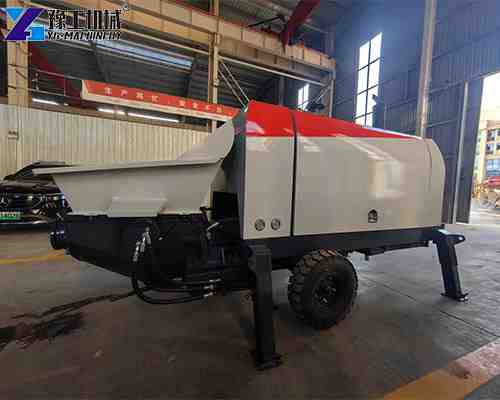

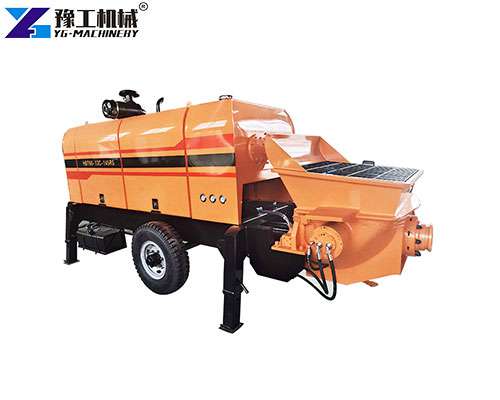

In modern concrete projects, the requirements for equipment flexibility and stability are getting higher and higher. trailer mounted concrete pump launched by YG is gradually replacing traditional pump trucks with its advantages of small size, strong performance and high adaptability, and becoming an ideal choice for small and medium-sized projects as well as sites with complex terrain. This kind of mobile concrete pump is mainly used for conveying concrete over long distances, which is suitable for building construction, tunnel lining, bridge maintenance and other application scenarios.
Trailer Mounted Concrete Pump Parameter
YG 2023 trailer mounted concrete pump incorporates the latest hydraulic system and intelligent control module with the following core parameters:

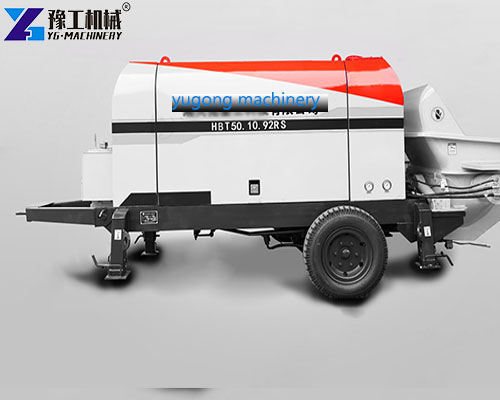

| Main Components | HBT40-8-62RS | HBT50.10.92RS |
| Power System | ||
| Diesel Engine | 62KW (Yuchai) | 92KW (Yuchai) |
| Delivery Cylinder | Φ200×800 (Dali Shen) | Φ200×800 (Dali Shen) |
| Pumping System | ||
| Main Oil Cylinder | Φ90×φ65×800 (Xieli or Dali Shen) | Φ100×φ70×800 (Xieli or Dali Shen) |
| Distribution Cylinder | Φ80 (Dali Shen) | Φ80 (Dali Shen) |
| Main Oil Pump | 112ml/r (Kawasaki) | 140ml/r (Kawasaki) |
| Hydraulic System | ||
| Hydraulic Valve | Lukai | Lukai brand |
| Hose | Imported Eaton | Imported Eaton |
| Electric System | ||
| PLC | OMRON Japan | OMRON Japan |
| Electrical Parts | ZhengTai | ZhengTai |
In our experience of cooperating with many construction sites, this configuration not only ensures long-distance stable transportation, but also greatly reduces the system failure rate. Especially in the small and medium-sized projects that require frequent transfers, the advantages of hydraulic concrete pump are especially obvious – fast pumping, even pumping and almost no pipe blockage.
Why choose YG tractor-type concrete pump?

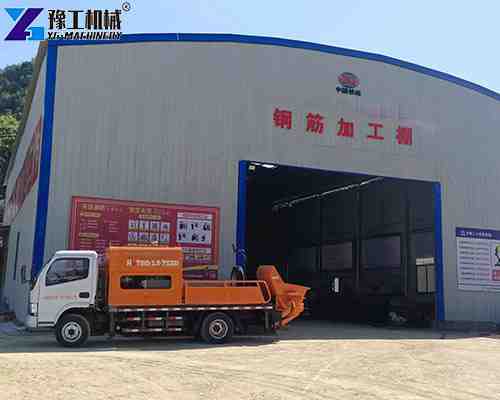

According to the feedback from users, compared with small concrete pump truck, YG trailer concrete pump is more suitable for customers with limited budget but high performance requirements. Its main advantages are:
- Convenient transfer: the whole machine is installed on the trailer chassis, and the standard trailer interface is suitable for a variety of towing vehicles;

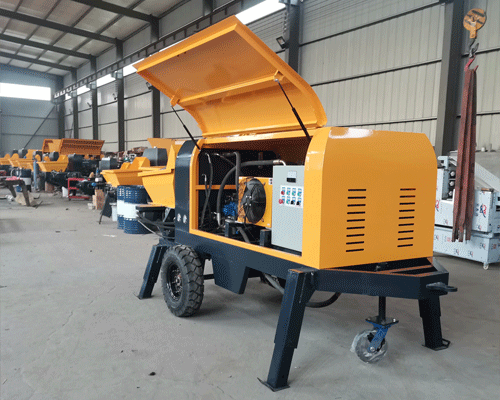

- Convenient maintenance: open structure design makes cleaning and maintenance more convenient;
- Economical operation: electric models with low energy consumption, diesel models with strong fuel adaptability, adapting to remote sites;
- Intelligent safety: integrated pressure limit, overheating, lack of oil and other multiple protection systems, to ensure operational safety;
- Flexible discharging system: supporting the combination of soft and hard pipes, more flexible on-site pouring, conventional configuration of 10 meters of high-pressure hose to facilitate the operation of workers.

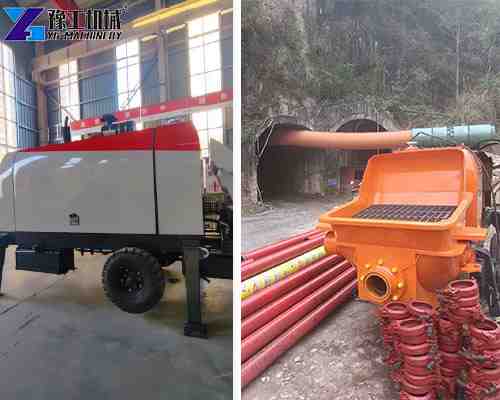

In the construction of complex environment, such as rural self-built houses, mountainous road projects or urban underground pipe corridors, concrete pump electric version can be connected to the utility direct operation, low noise, zero emission, more in line with the green construction standards.
Notes on use: operation safety should not be ignored
Experience tells us that even if the performance of tractor pump is excellent, improper operation may bring about loss or even accidents.
- In the transportation stage, make sure that the guide wheel is retracted and the vehicle speed is controlled within 15km/h;
- Before pumping, check whether the four legs land smoothly, whether the hydraulic oil level is sufficient, and whether the cable is connected firmly.
- In cold environment, the hydraulic system should be preheated to above 20°C before loading and running.
- Before starting every day, be sure to point the motor to confirm the steering, clean the hopper of debris, and make sure the screen and bottom door are closed well.
YG: Not only an equipment manufacturer, but also a concrete engineering solution partner

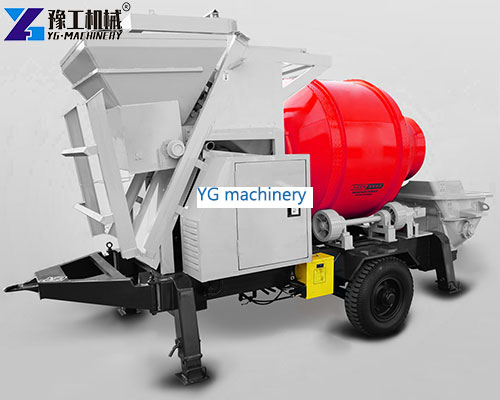

As a company specializing in the research, development and export of construction machinery, YG has always been committed to providing customers with high-performance, low-maintenance and widely applicable product solutions. Our trailer mounted concrete pump has been exported to Southeast Asia, the Middle East and Africa, and has been well received. In addition, we also provide: concrete mixer pump, concrete delivery pump, small concrete pump truck, electric concrete spraying machine, etc. Contact us for customized solutions and real-time quotes. WhatsApp/WeChat/Phone/Skype】+86 13837115193.
