When it comes to concrete wall cutting saw, having the right tools is essential for achieving precise, clean, and efficient results. Whether you are a construction professional, contractor, or homeowner planning renovations, investing in the right wall cutting blade can save time and effort. In this blog, we’ll explore the uses and advantages of concrete wall saw, factors affecting concrete wall cutting cost, and how to choose the best wall saw blade for your project.
Concrete Wall Cutting Saw Parameter
| Hydraulic Oil Pump | Model | YG 600 | YG 700 |
| Max. power | 25KW | 30KW | |
| Motor cooling method | Air cooling | water cooling | |
| Rated voltage | 380V 50HZ | 380V-420V 50HZ-60HZ | |
| Pressure stages | 3 | 3 | |
| Max. operating pressure | 200bar/20Mpa | 210bar/21Mpa | |
| Oil flow rate | 30-80L/min | 40-100L/min | |
| Dimensions | 600mm*650mm*1050mm | 500mm*520mm*1100mm | |
| Weight | 220kg | 140kg | |
| WallSaw | Saw blade diameter range | 800-1400mm | 800-1600mm |
| Cutting depth | 620mm | 730mm | |
| Max. working pressure | 180bar/18Mpa | 200bar/20Mpa | |
| Max. oil flow rate | 100l/min | 100l/min | |
| Gearing | Gear | Gear | |
| Rotation speed | 450/950/1300Rpm | 450/850/1200Rpm | |
| Dimension | 400mm*420mm*400mm | 400mm*420mm*400mm | |
| Weight | 38kg | 39kg |
3 Reasons to Invest in Concrete Wall Cutting Saw
- Precision and Efficiency
Traditional methods like hammering or manual breaking can be time-consuming and result in uneven cuts. A high-quality wall saw blade allows for smooth and precise cuts, reducing material waste and improving structural integrity. - Versatile Applications

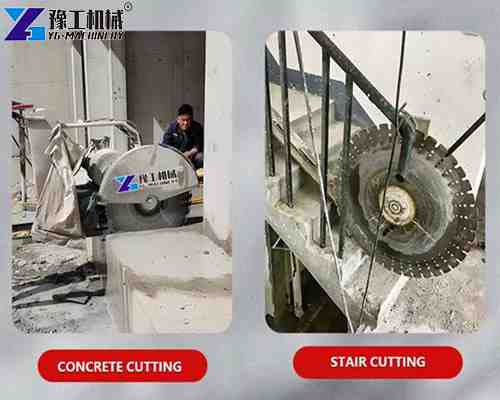

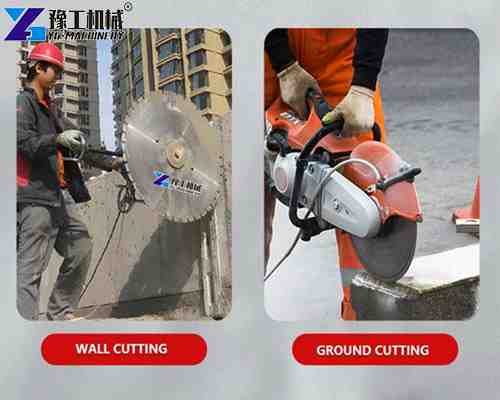

Concrete wall cutting is widely used in commercial construction, home renovations, and industrial projects. It is ideal for creating openings for doors, windows, HVAC systems, and plumbing installations. - Time and Labor Savings
Advanced concrete wall cutting tools reduce the time and labor required for cutting thick concrete walls. This translates to lower costs and improved efficiency on construction sites.
Concrete Wall Cutting Cost: What to Expect?
The cost of concrete wall cutting varies depending on several factors:
- Wall Thickness: Cutting through thicker walls requires more powerful blades and specialized equipment.
- Material Type: Reinforced concrete with rebar increases wall cutting costs due to higher blade wear.
- Blade Size and Type: The choice between a 4inch wall cutting blade, 5inch wall cutting blade, or 6inch wall cutting blade impacts pricing and cutting precision.
- Project Complexity: Intricate designs or cutting in difficult locations may require professional expertise, affecting overall costs.
How to Choose the Right Wall Cutting Blade?
Consider the Blade Size: Choosing the correct wall cutting blade size depends on the depth of the cut required:
- 4 inch wall cutting blade: Ideal for shallow cuts and light-duty applications.
- 5 inch wall cutting blade: Suitable for medium-depth cuts in standard concrete walls.

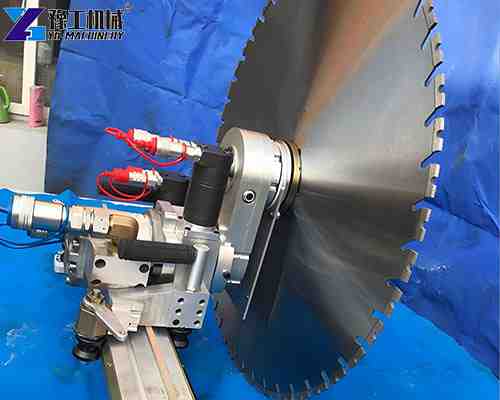

- 6 inch wall cutting blade: Best for deeper cuts and reinforced concrete.
Check Blade Material and Quality
A diamond-tipped wall saw blade offers superior durability and efficiency compared to traditional carbide-tipped blades.

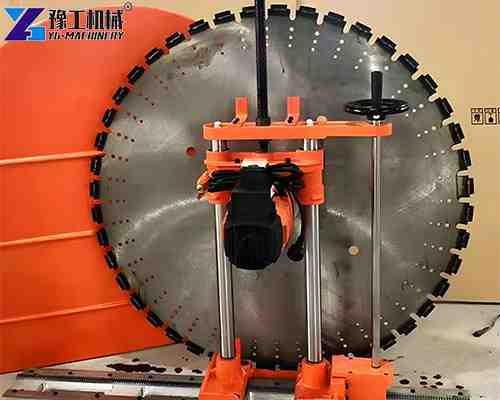

Compare Wall Cutting Blade Prices
The wall cutting blade price depends on size, material, and brand. Higher-quality wall saw blades may cost more but offer longer lifespan and better cutting performance. Investing in a premium blade reduces long-term expenses by minimizing replacements.
YG Machinery-A Professional Manufacturer of Concrete Wall Saws
YG Machinery offer high-quality products at competitive prices. Our wall cutting machines and blades have been exported to over 20 countries worldwide, receiving excellent customer feedback for their durability, efficiency, and precision. In addition to wall saws, we also provide a wide range of construction machinery, including : excavators, mobile crusher machine, concrete wire saw machines, concrete mixers, etc. We are committed to providing reliable products and excellent customer service. Contact us today to find the best wall cutting solutions for your project!【WhatsApp/WeChat/Phone/Skype】: +86 13837115193.
