Don’t let slow piling, unstable machines, or uneven terrain delay your solar projects. YG’s Solar Pile Driver is engineered for complex terrain, featuring hydraulically adjustable support legs and telescopic crawler height from 0.8 to 1.2 m, allowing stable piling on slopes, gravel, and rocky ground.
Proven to reduce installation time by up to 30%, this machine keeps PV projects on schedule while lowering labor and repositioning costs—especially in challenging site conditions. Request a free quote today and see how YG factory-direct solar piling solutions help you build faster, safer, and more efficiently.
Solar Pile Driver Models & Technical Parameters
Choose the right configuration based on terrain, soil condition, piling method, and project scale. Contact us to know more! WhatsApp+86 13837115193.
| Skid-Mounted Solar Pile Driver with Hydraulic Adjustable Support Legs | |||
| Overall Dimensions | 4700 × 2200 × 2800 mm | Crawler Plate Width | 300 mm |
| Engine | Yuchai 4108 | Rated Power | 88 kW |
| Max Drilling Depth | 6 m (extendable drill rod) | Max Drilling Diameter | 400 mm |
| Main Pump | Triple pump | Reducer Output Torque | 13,000N.m |
| Drill Rod Speed | 180 r/min | Hydraulic Pump | 40 / 40 / 32 |
| Applicable Rock Hardness | 6–20 F | Climbing Angle | 45° |
| Drilling boom swing angle | Left & Right 150° (±75°) | Sliding Frame Pitch Angle | 120° |
| Travel Speed | 5 km/h | Sliding Frame Swing Angle | Left & Right 40° |
| Machine Weight | 6.5 T | Crawler Height Adjustment Range | 80–120 mm |

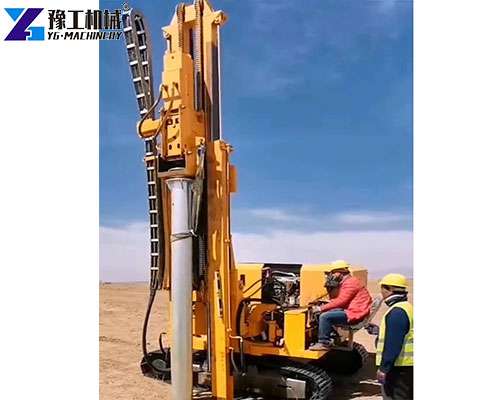

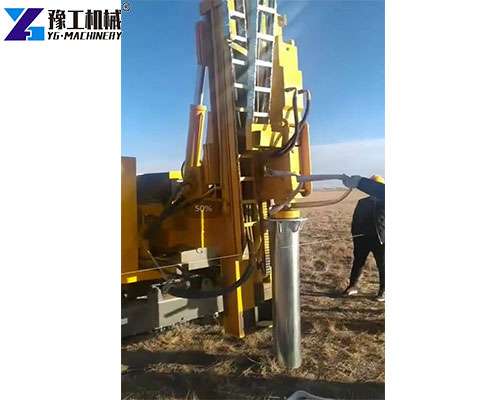

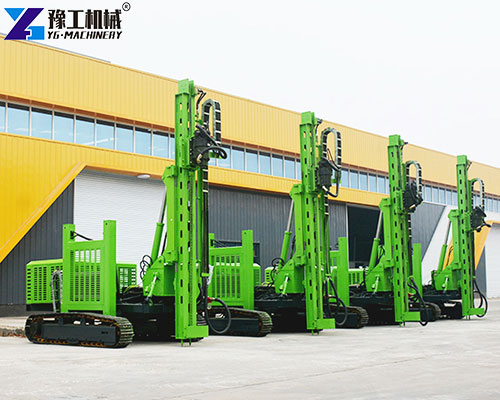

| Crawler Solar Pile Ramming Machine – Hydraulic Hammer Type (requires compressor for rock drilling) | |||
| Parameter | Specification | Parameter | Specification |
| Overall Size | 4700 × 2100 × 2800 mm | Track shoe width | 400mm |
| Power Head | Hydraulic power | Engine | Yuchai four cylinder (85 kW) |
| Overall Quality | 6.5 T | Maximum drilling depth | 6m (can connect drill rods) |
| Maximum Drilling Diameter | 350 mm | Hydraulic hammer flow | 50–110 L/min |
| Impact Frequency | 350–800 bpm | Hydraulic system pressure | 25–30 MPa |
| Oil Pump | 40/40/32 | Travel speed | 5 km/h |
| Climbing Angle | 30° | Strong wind heat dissipation | Large radiator |

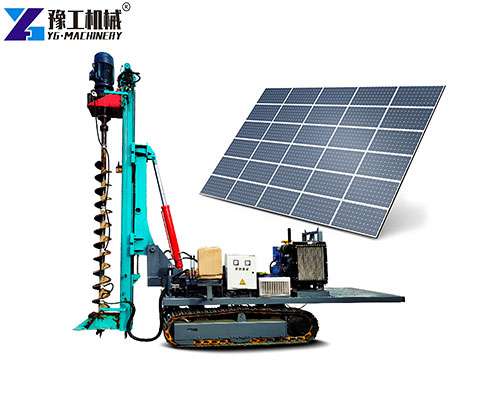

| Hydraulic Photovoltaic Pile Driver-Rotary Drilling Type/DTH types | |||
| Parameter | Specification | Parameter | Specification |
| Overall Size | 4700 × 2100 × 2800 mm | Rock Hardness (The hardness of rocks) | 6–20 F |
| Track Shoe Width | 400 mm | ||
| Engine | Yuchai four cylinder | Travel/Walking Speed | 5 km/h |
| Maximum Drilling Depth | 6 m (can install longer drill pipes) | Drill Pipe Speed | 180r/min |
| Maximum Drilling Diameter | 400mm | Sliding Frame Pitch Angle | 120° |
| Reducer Torque | 13,000N.m | Climbing Angle | 30° |
| Oil Pump | 40 / 40 / 32 | Drilling boom swing angle | Left & Right 150° (±75°) |
| Overall Weight | 6.5 T | Slide swing angle | Left & Right 40° |
Advantages of Solar Pile Driver
- Rapid Installation: Helical piles allow for very fast foundation installation, eliminating the need for concrete curing time.
- Adjustable Support Legs for Complex Terrain: Equipped with height-adjustable crawler support legs (0.8–1.2 m), the YG solar pile driver automatically adapts to slopes, uneven ground, and elevation differences. This ensures the machine remains level and stable during operation, even on mountainous, sloped, or irregular photovoltaic sites, greatly improving drilling accuracy and operational safety.
- Reduced Environmental Disturbances: Compared to traditional concrete piles, helical piles require almost no excavation or soil removal, resulting in a cleaner construction site and less disturbance to the land.
- High Stability: Helical piles have excellent pull-out resistance, resisting wind lift and providing reliable support for photovoltaic panel supports.
- Reusable/Removable: After the project is completed, the helical piles can be “screwed out” for reuse or removal, making them environmentally friendly.
- Versatile Application: Our piling machines can operate in various soil types (sand, clay, rock, etc.), making them suitable for complex and remote photovoltaic sites.
- Cost Savings: Eliminating the need for concrete pouring and curing saves on labor and material costs, while also shortening the construction cycle.
- Low Environmental Impact: The installation process of helical piles involves little or no vibration, minimizing impact on the ecological environment.
- Real-Time Quality Control: Torque monitoring during installation verifies the load-bearing capacity and depth of each pile.
Customer Case Studies- Solar Pile Driver
Our Solar Pile Driver has been widely used in numerous projects worldwide, including photovoltaic power plants in complex terrains or with steep slopes. Whether on rocky ground, sandy soil, or slopes, our machines can reliably and efficiently complete piling tasks.
Colombia Project:
An EPC contractor in Bogotá, Colombia, installed a 500KW solar station over rocky slopes. Using our Telescopic Sliding Photovoltaic Pile Driver, the project finished 3 days ahead of schedule, saving over 25% on labor costs. The client said:
“It exceeded our expectations. The rotary speed, efficiency, and adaptability are impressive.”
Saudi Arabia Project:
A renewable energy company in Riyadh, Saudi Arabia, used our Solar Pile Driver for a 750KW solar farm on uneven desert terrain. The machine drilled continuously for 8 hours/day without overheating and handled slopes up to 45°. The client commented:
“This machine significantly improved our installation speed and reduced our overall project cost. Highly recommended for solar farms in harsh terrain.”
FAQ about Solar Pile Driver
Q: What pile diameters can this machine handle?
A: Supports 80–600 mm, customizable for project needs.
Q: Which terrains is it suitable for?
A: Slopes up to 45°, rocky ground, sand, and uneven terrain.

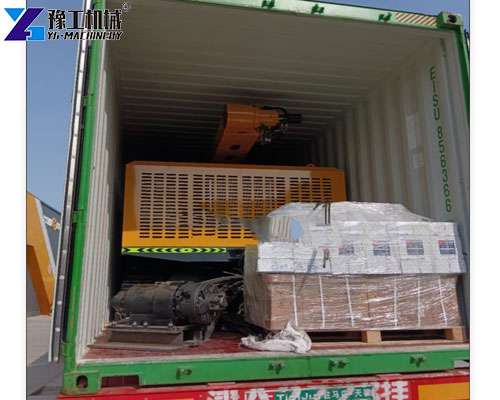

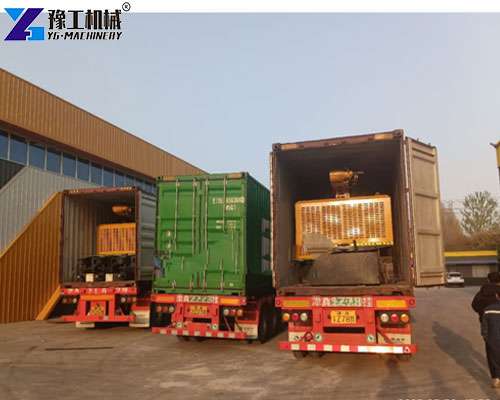

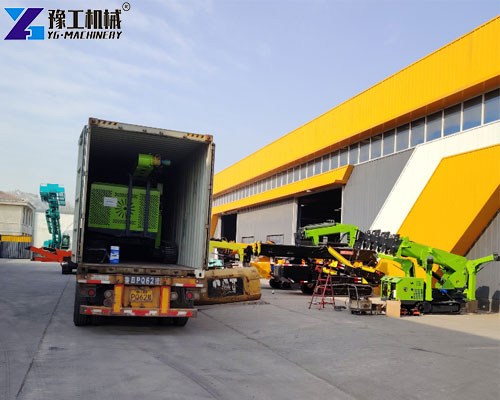

Q: How long is delivery/shipping time?
A: Typically 2 weeks; popular models are in stock.with worldwide shipping support.
Q: Do you offer after-sales service?
A: Yes, we provide global service support and spare parts availability.
Q: Do you offer lower-cost solar pile driver options?
A: Yes. We offer a generator-powered electric solar pile driver designed for auger drilling only. This model features a lower purchase cost compared with hydraulic piling machines and is suitable for standard PV ground screw installation.
Q: Do you offer solar screw pile drivers or helical pile driver solutions?
A: Yes. We also provide solar screw pile drivers (helical pile drivers) for ground screw installation. This solution eliminates concrete work, shortens construction time, and often results in lower overall project cost, especially for utility-scale solar farms. Suitable for soft to medium soil conditions; not intended for hard rock piling.
Choose Professional Solar Pile Driver to Help Efficient PV Construction
Whether it is plain, mountain or gravel terrain, YG PV Pile Driver (solar pile driver) can provide efficient, accurate and stable piling solutions. We offer a wide range of models and support customization, suitable for all kinds of PV plant construction needs. We also manufacture the following equipment: ramming photovoltaic pile driver, guardrail pile driver and so on.
If you are looking for solar pile driver for sale, or are choosing the right equipment for solar farm pile driving project, please feel free to contact us for technical solutions and quotation! 【WhatsApp/WeChat/Phone】+86 13837115193.
